Strut Assembly: Removal

Remove the wheel and tire.
Detach the brake hose from the shock absorber mounting fork.

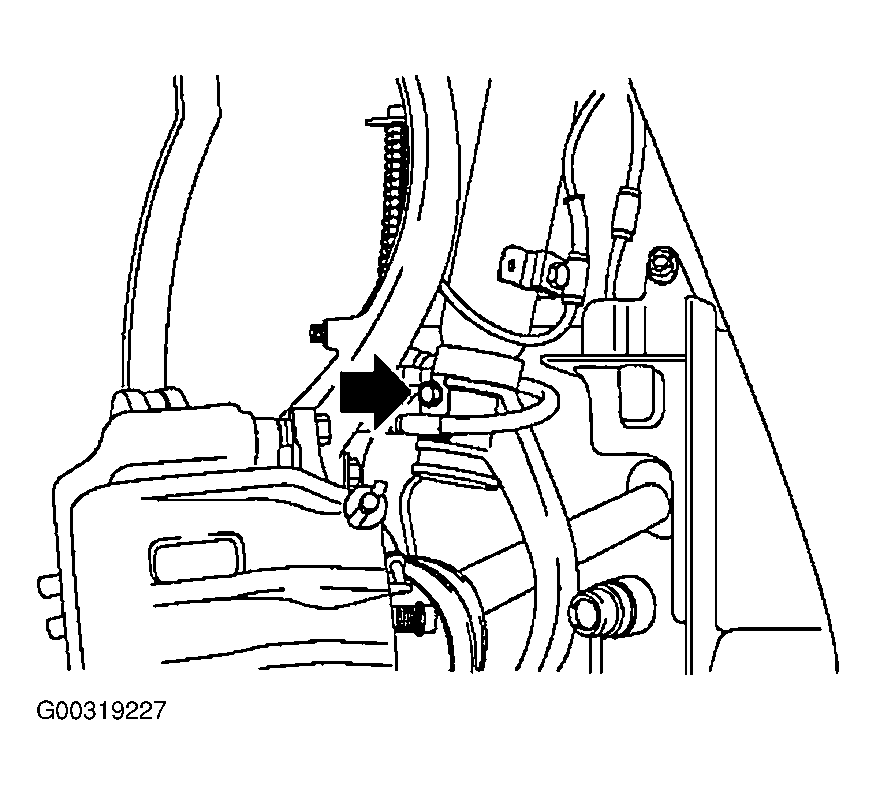

Fig 1: Detaching Brake Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shock absorber mounting fork and lower arm connector mounting bolt.

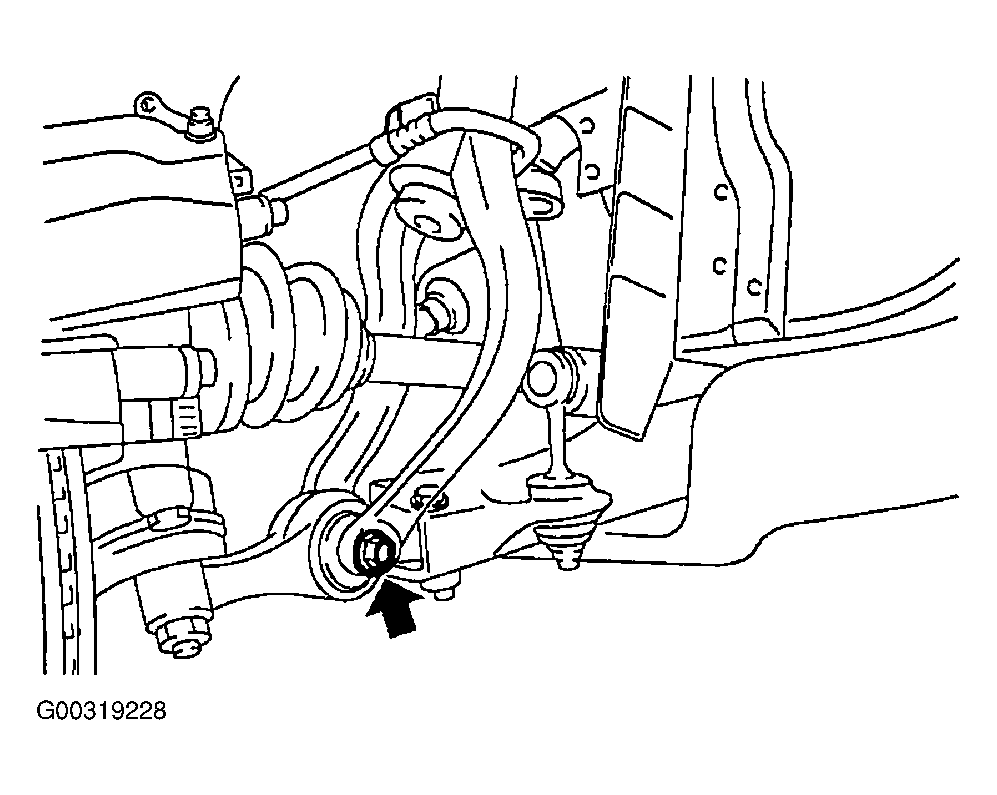

Fig 2: Removing The Shock Absorber Mounting Fork And Lower Arm Connector Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fork from the shock absorber.

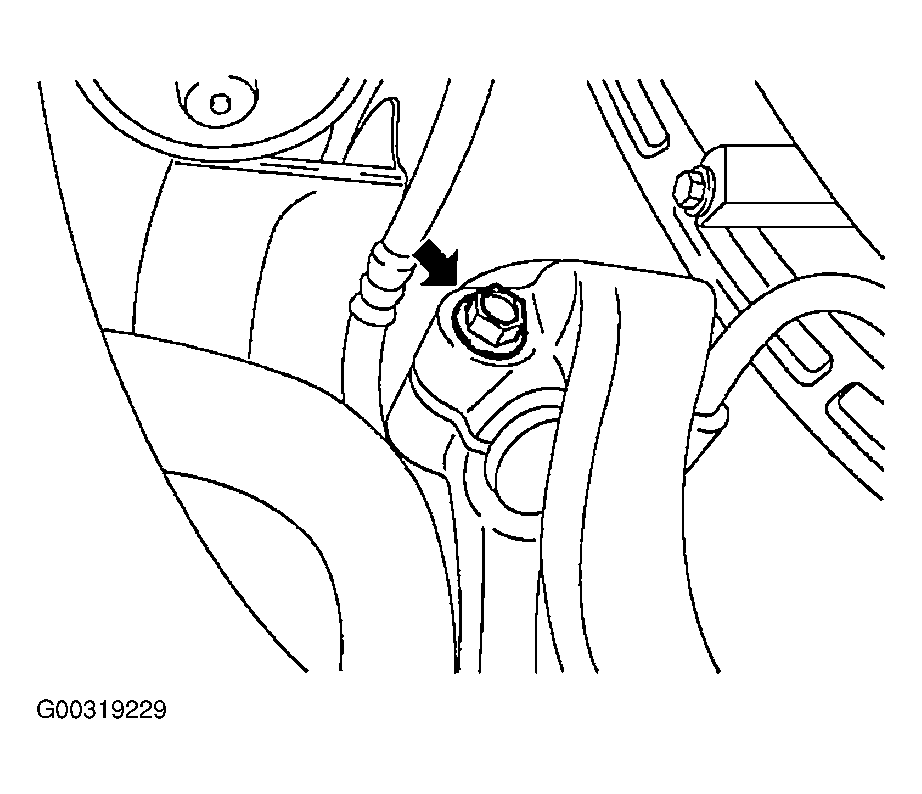

Fig 3: Removing The Fork From The Shock Absorber
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ECS wiring mounting bolt (2EA).

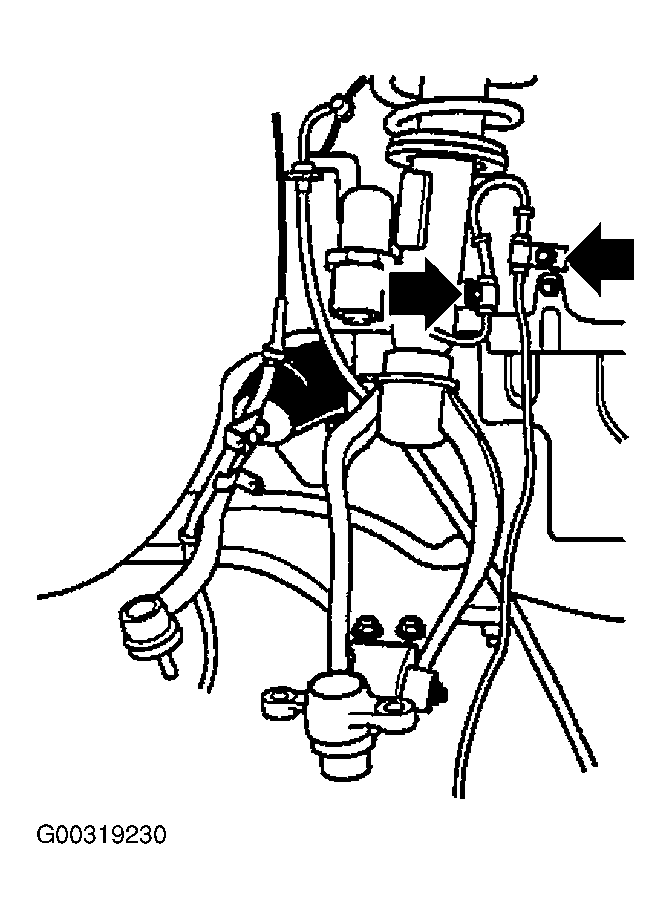

Fig 4: Removing The ECS Wiring Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the strut upper mounting nuts (3EA).

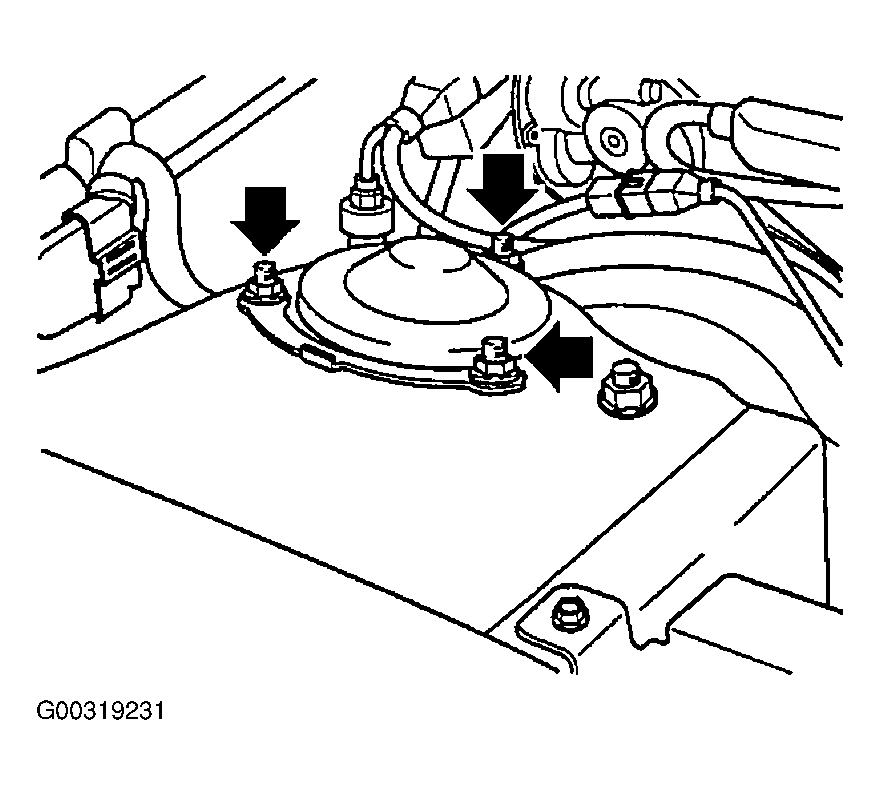

Fig 5: Removing Strut Upper Mount Nut
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the axle assembly upward, remove the strut assembly.
