Main Moving System: Crankshaft: Components

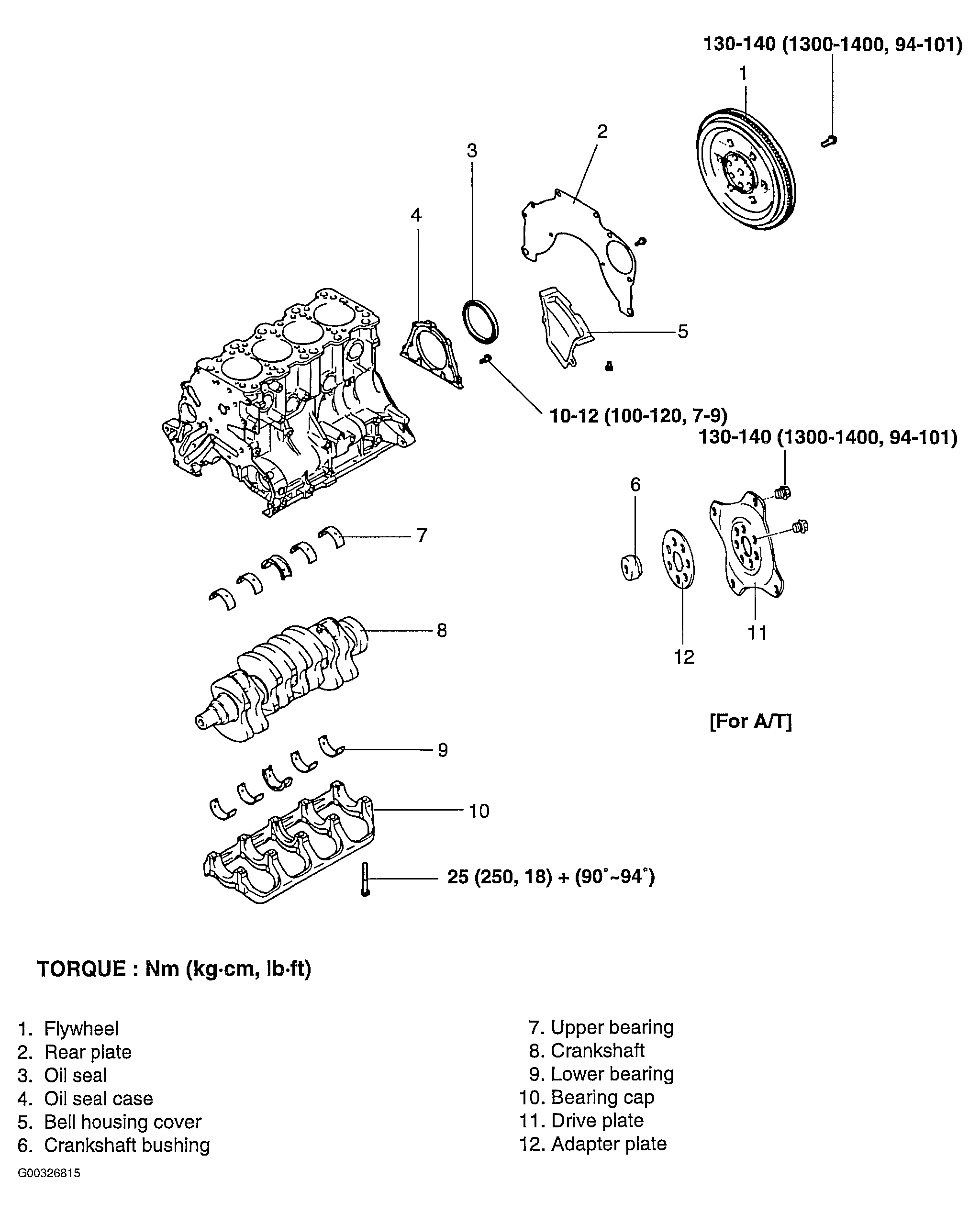

Fig 1: Exploded View Of Crankshaft
G00326815Courtesy of KIA MOTORS AMERICA, INC.
