Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Component Parts And Function Outline
Component Parts And Function Outline

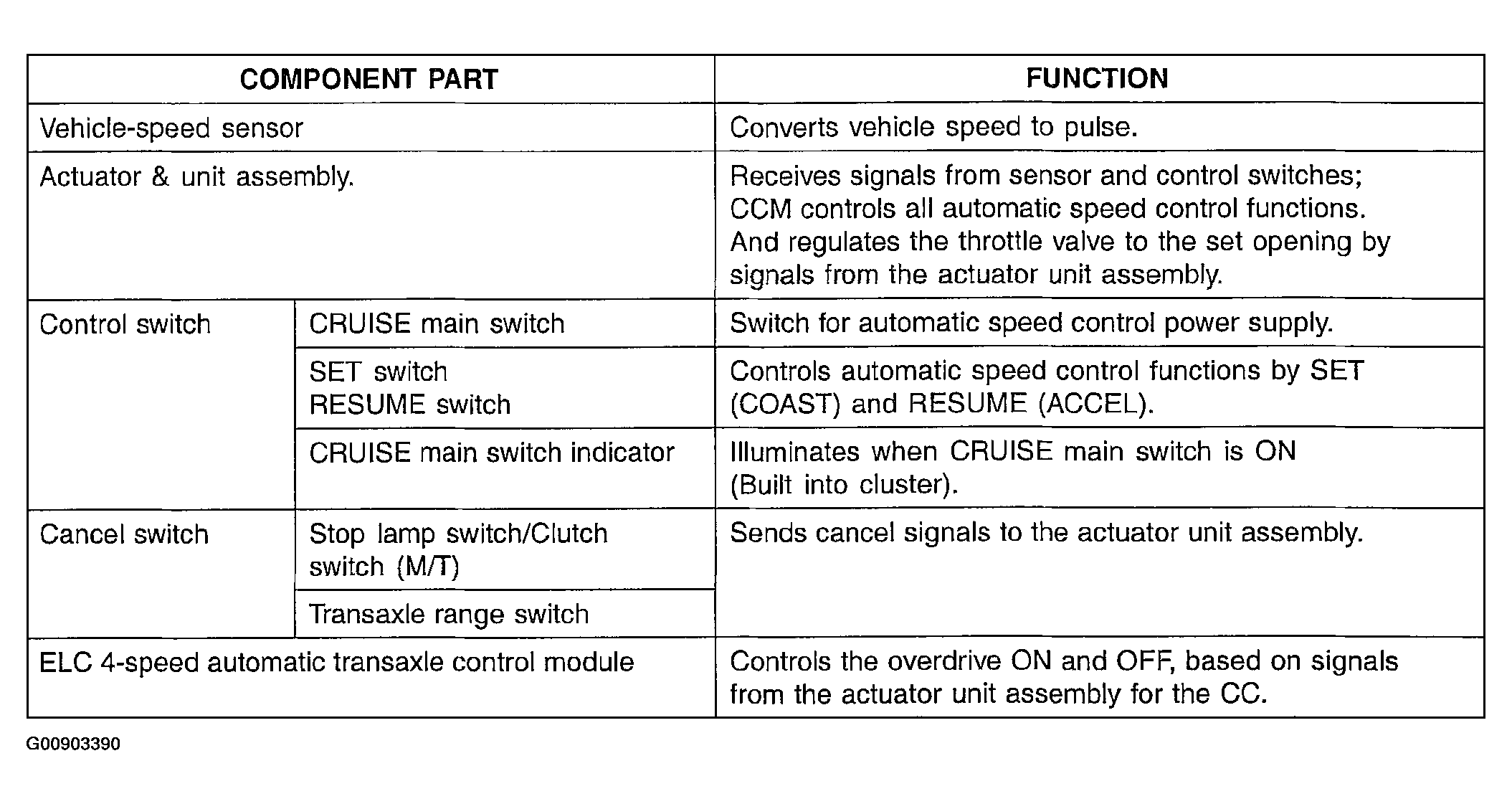

Fig 1: Identifying Component Parts & Function Outline
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
