Components Location
Components Location

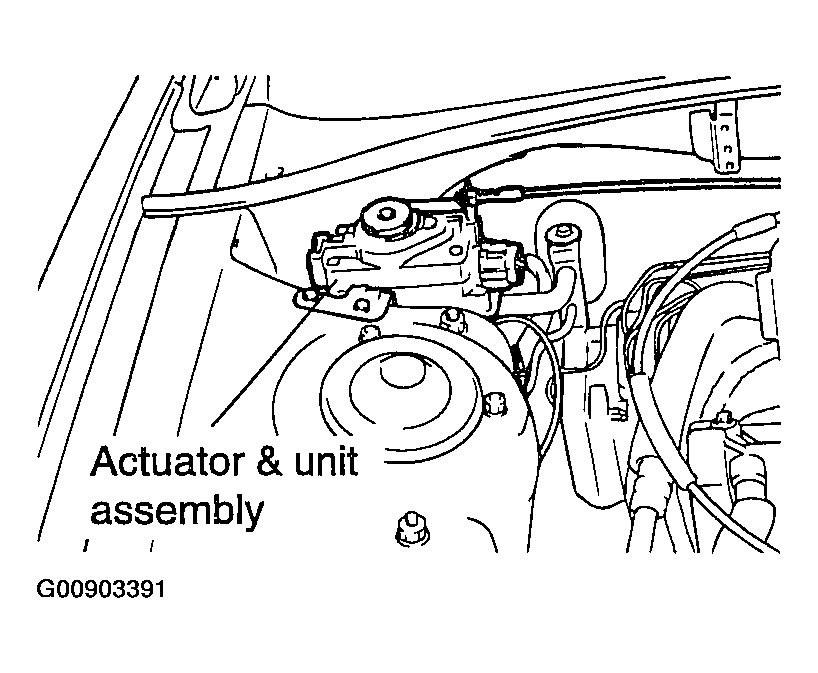

Fig 1: Locating Actuator & Unit Assembly
Courtesy of KIA MOTORS AMERICA, INC.

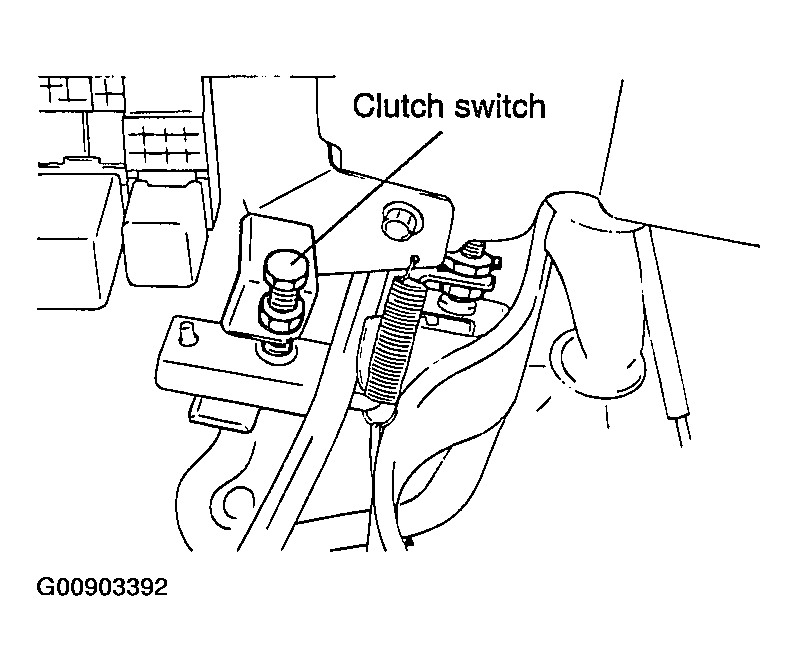

Fig 2: Locating Clutch Switch
Courtesy of KIA MOTORS AMERICA, INC.

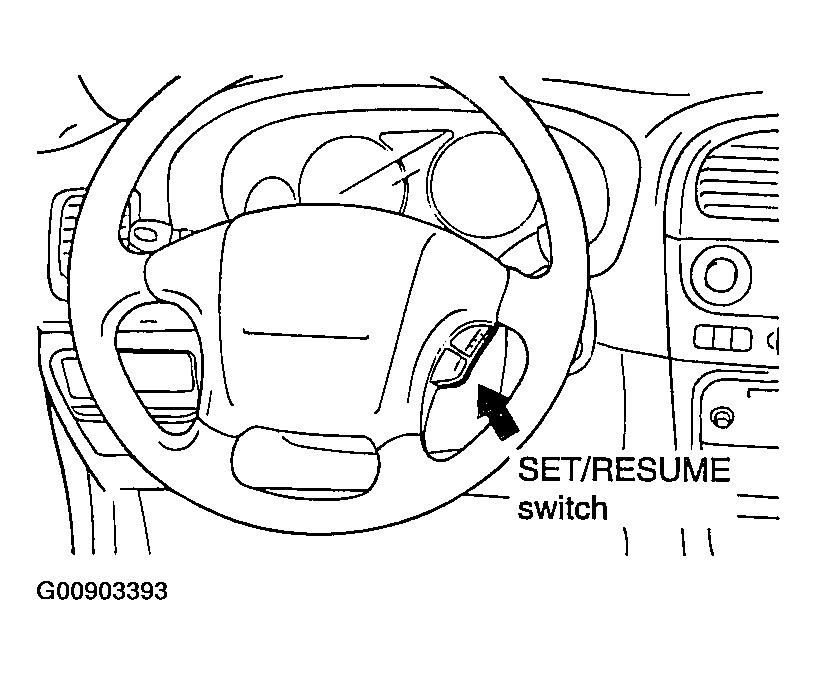

Fig 3: Locating SET/RESUME Switch
Courtesy of KIA MOTORS AMERICA, INC.

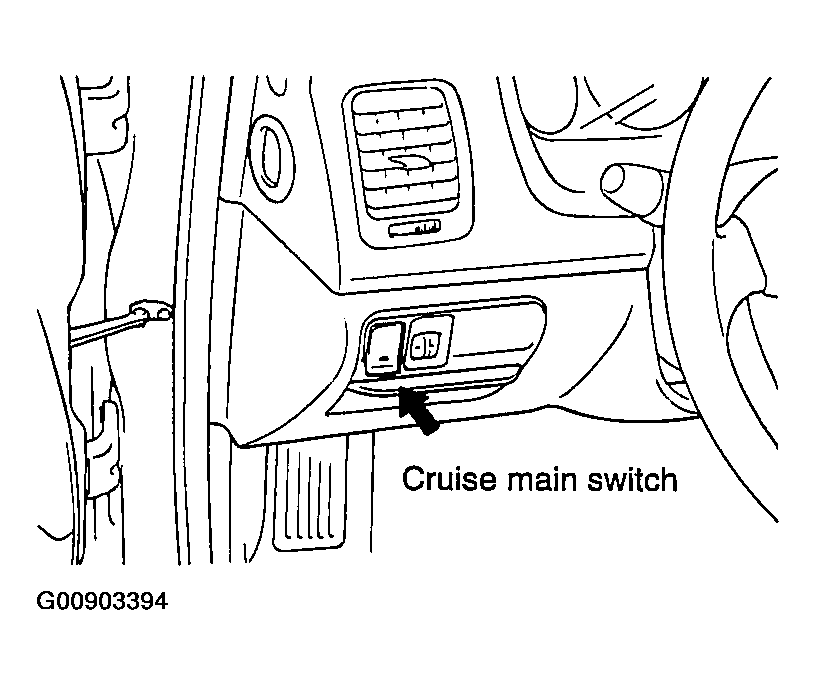

Fig 4: Locating Cruise Main Switch
Courtesy of KIA MOTORS AMERICA, INC.

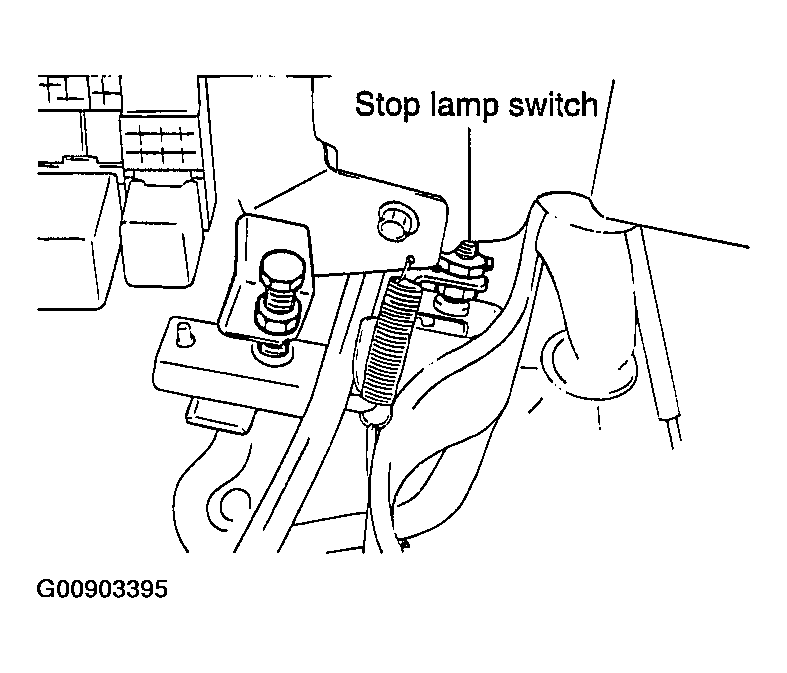

Fig 5: Locating Stop Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

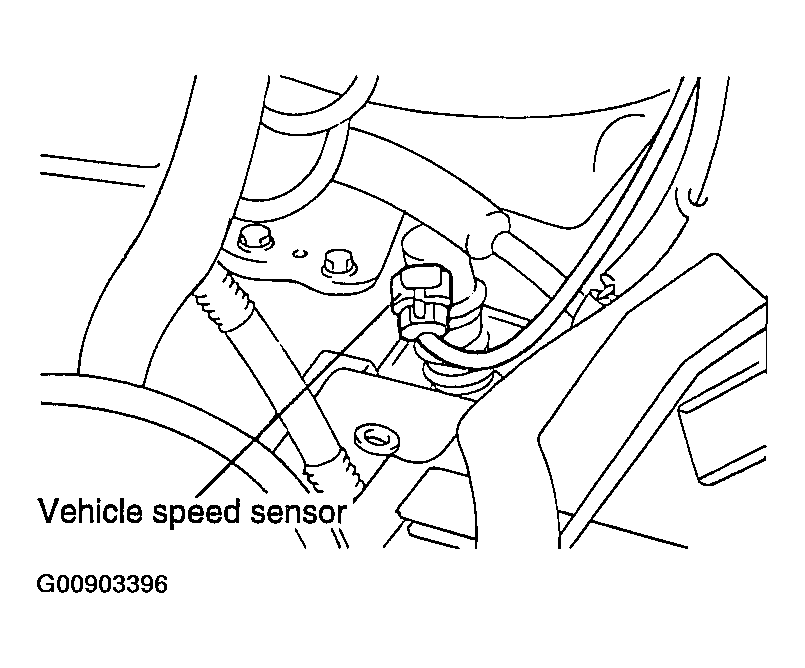

Fig 6: Locating Vehicle Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
