Vacuum Hoses Layout
Vacuum Hoses Layout

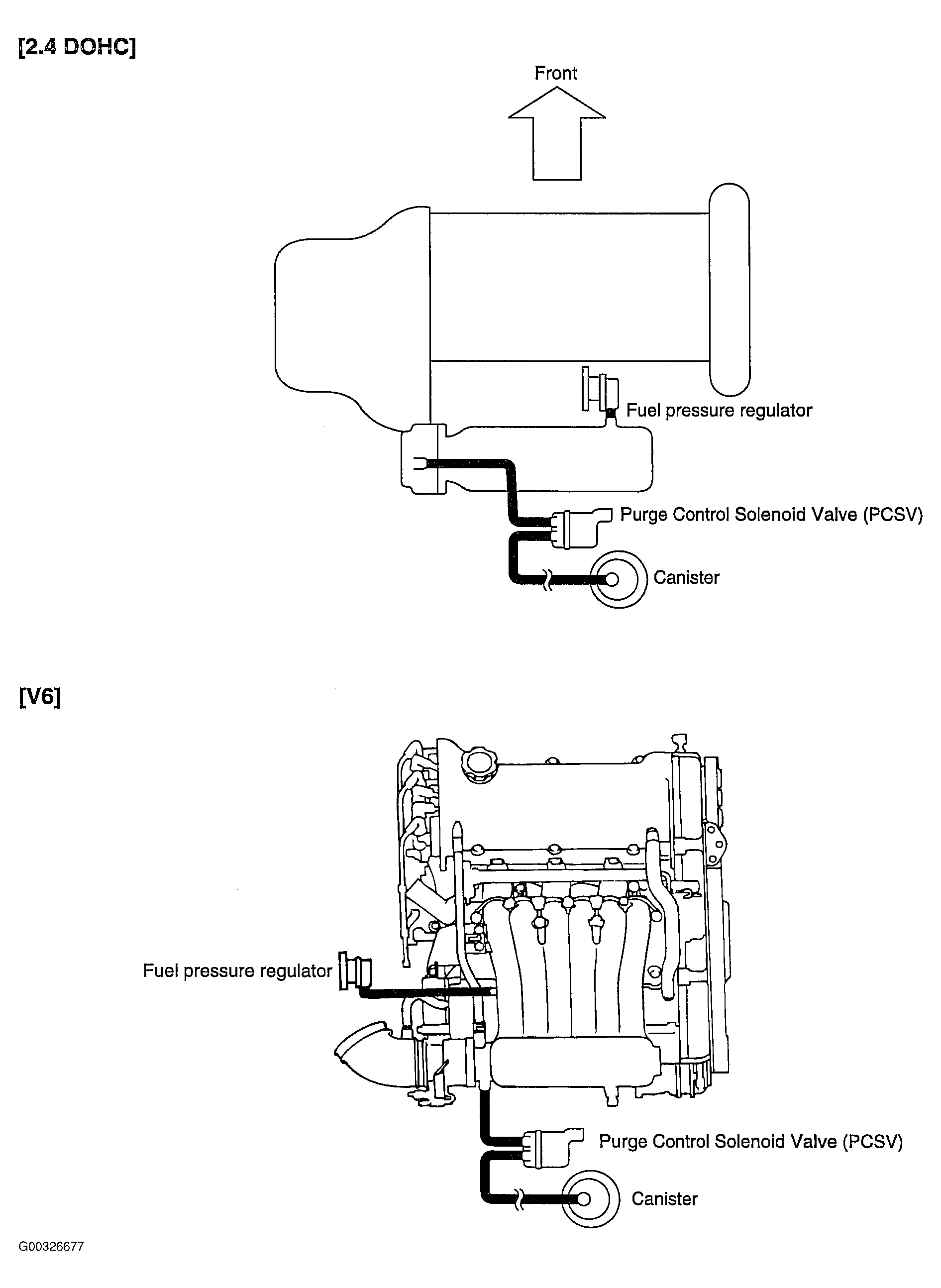

Fig 1: Identifying Vacuum Hose Layout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
