Home › Kia › 2004 › Optima EX, 2.4 6 › Repair and Diagnosis › Suspension › Front Suspension › Front Suspension System › Front Hub/Knuckle › Components

Front Hub/Knuckle: Components

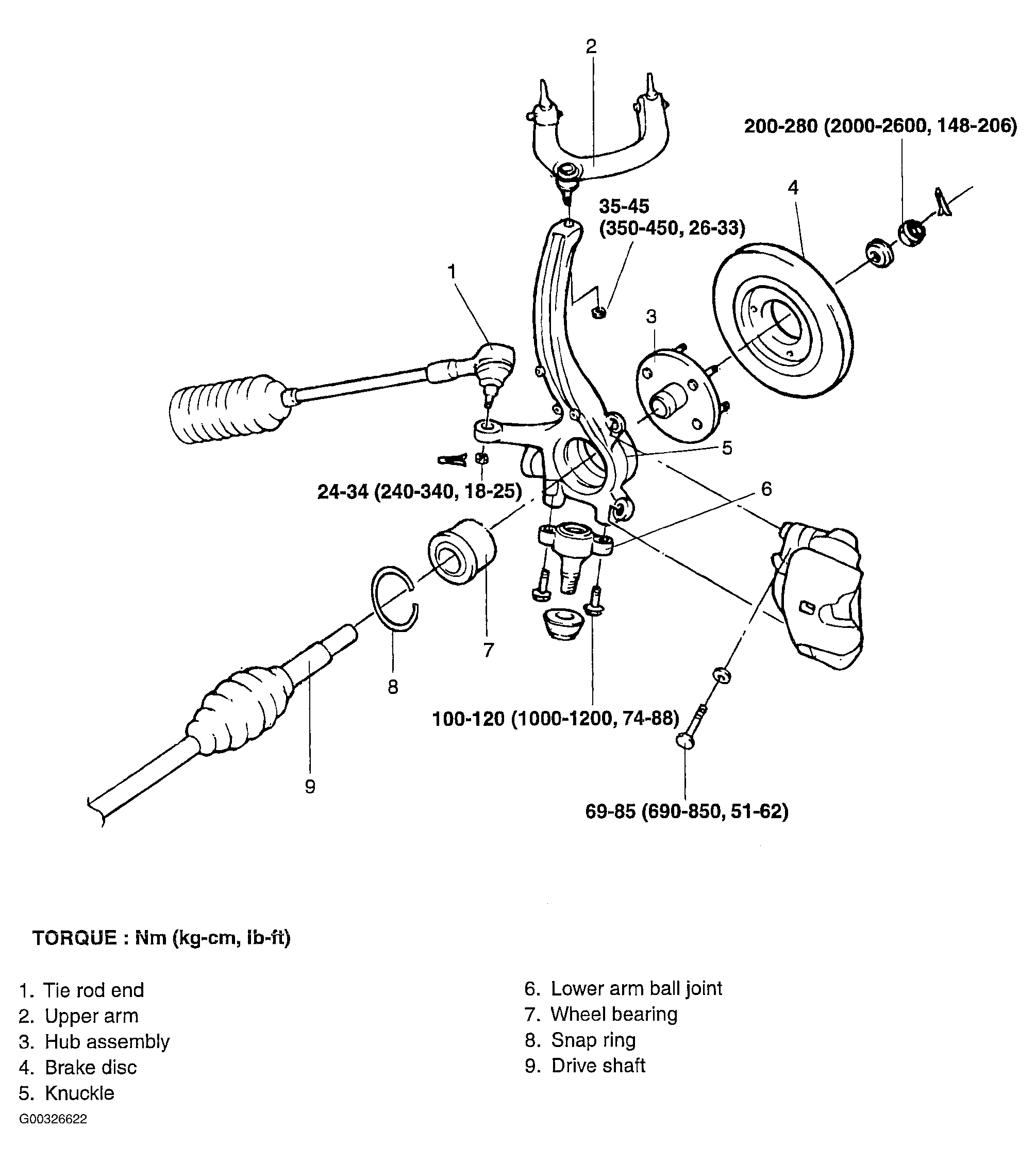

Fig 1: Removing & Installing Front Hub/Knuckle
G00326622Courtesy of KIA MOTORS AMERICA, INC.
