Strut Assembly: Components

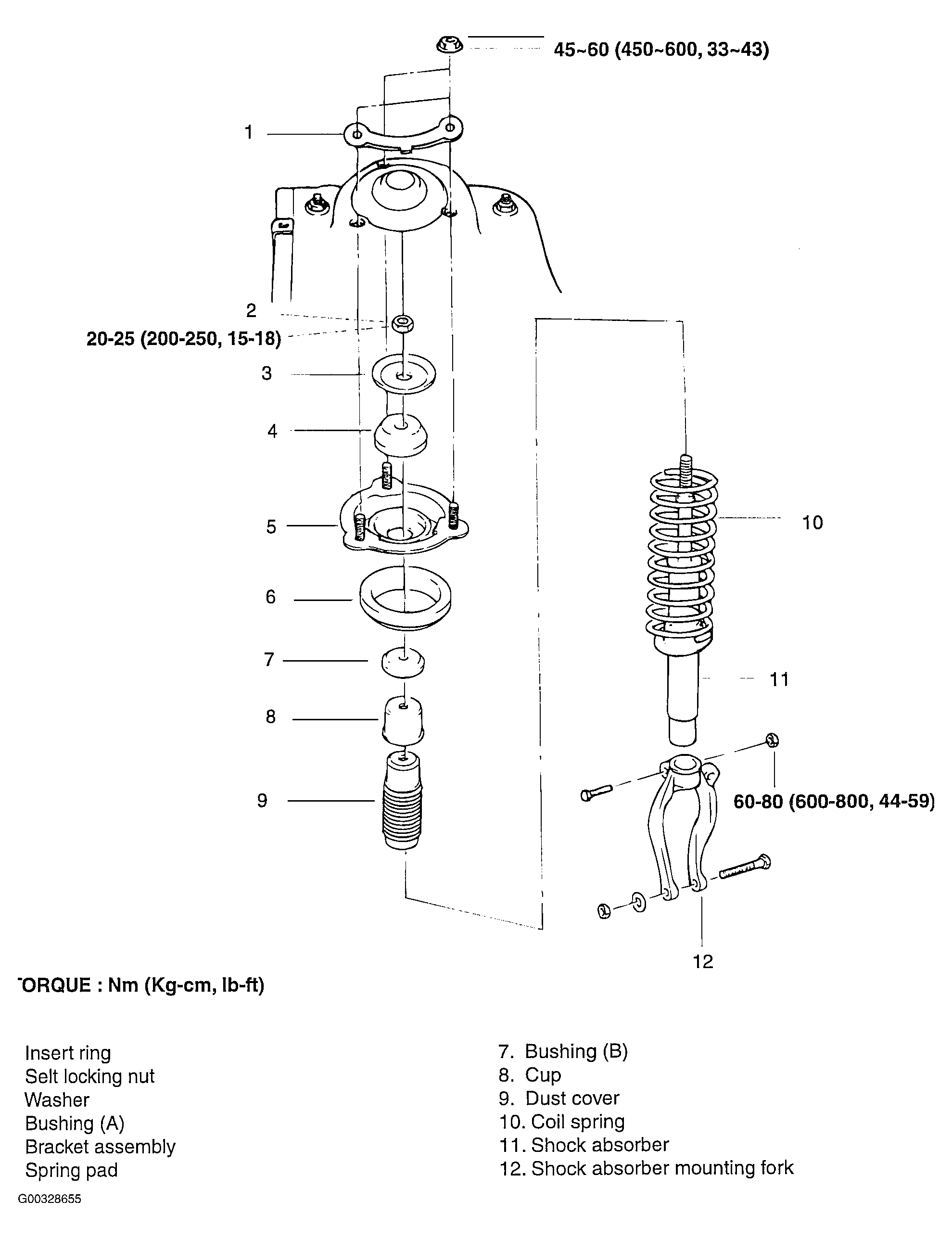

Fig 1: Exploded View Of Strut Assembly
G00328655Courtesy of KIA MOTORS AMERICA, INC.
