Cylinder Head Assembly: Valves: Components

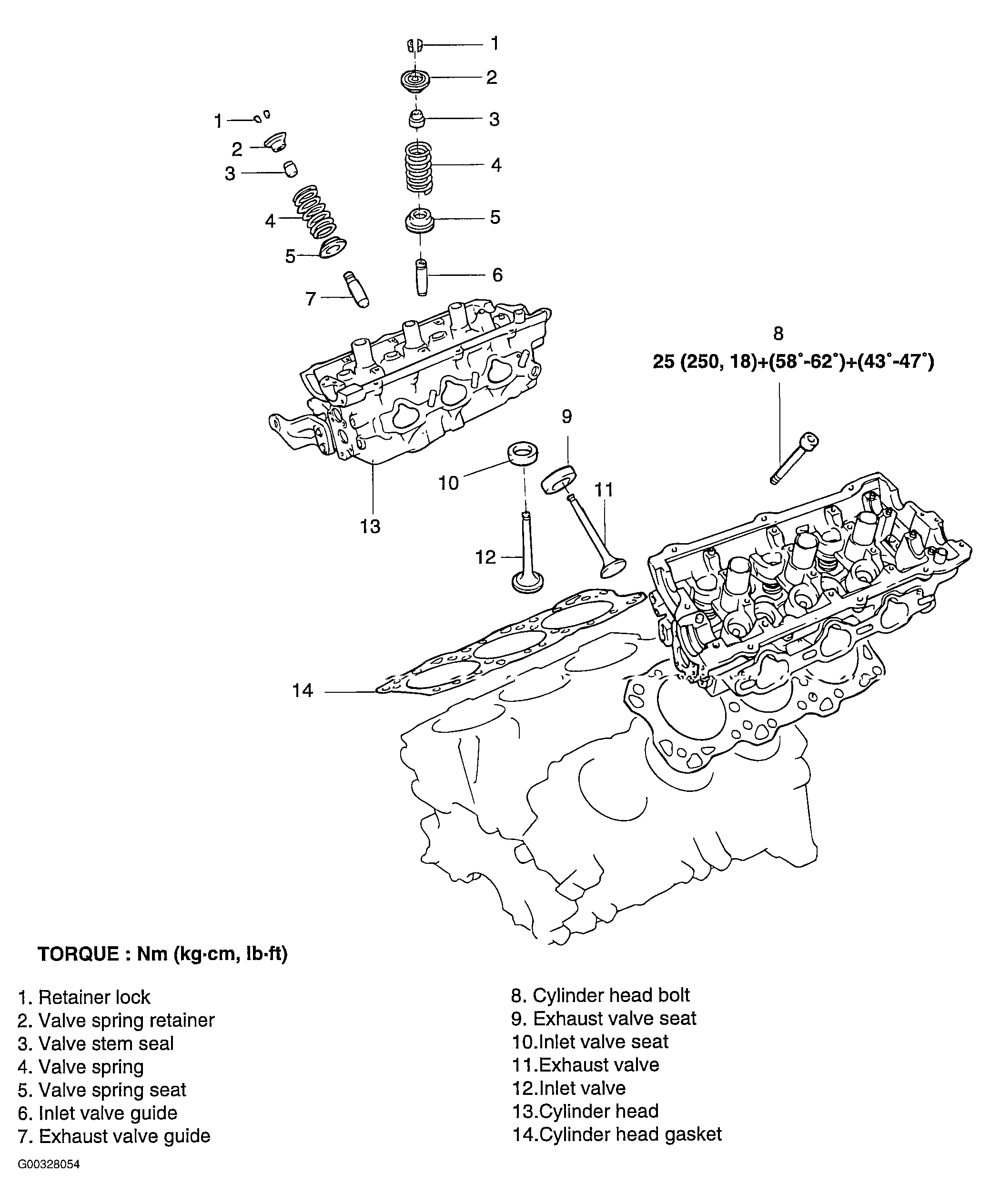

Fig 1: Removing & Installing Valves

G00328054

Courtesy of KIA MOTORS AMERICA, INC.
