Connecting Rod & Piston: Components

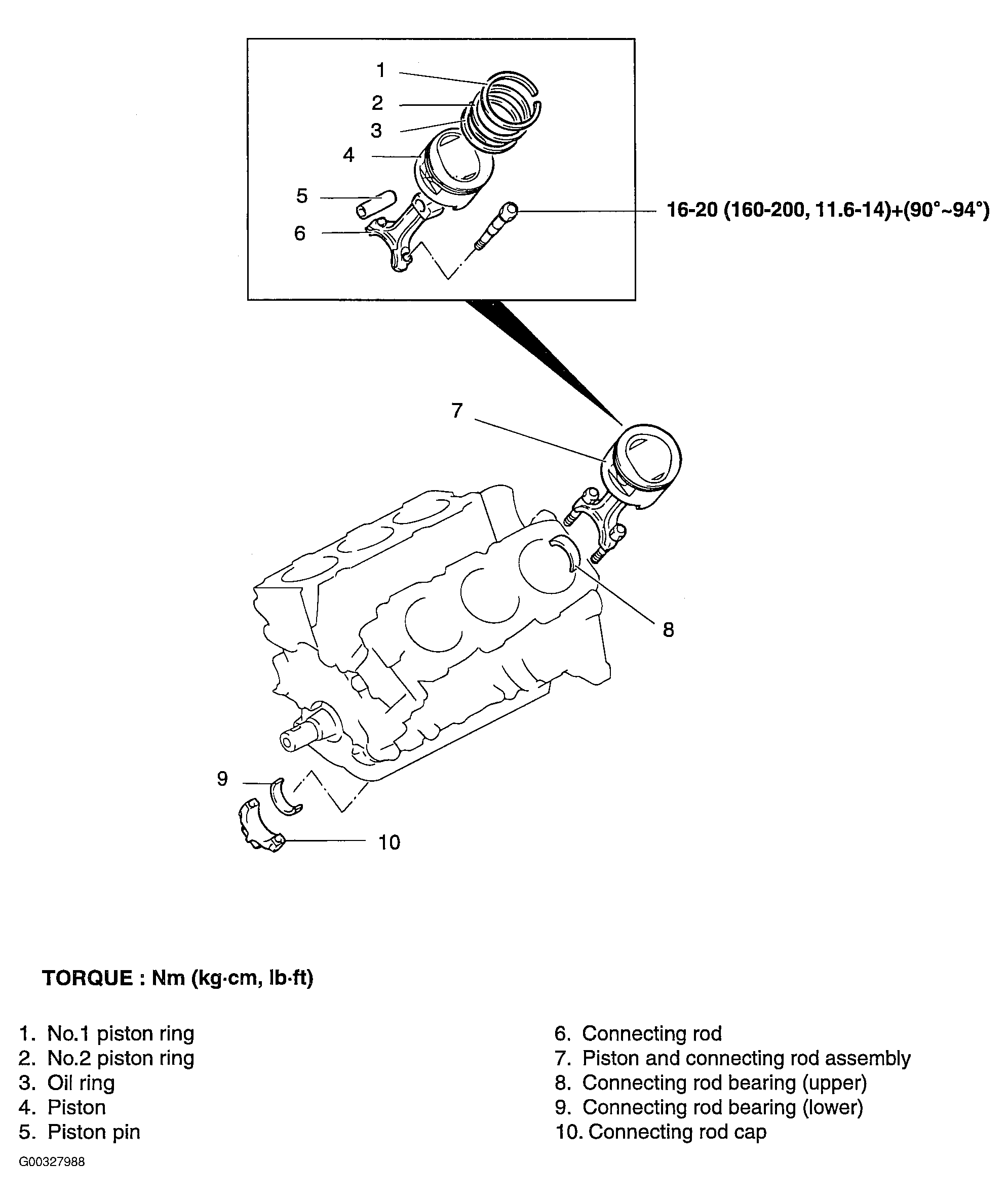

Fig 1: Removing & Installing Connecting Rod
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
