Home › Kia › 2004 › Optima EX, 2.7 8 › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.7L V6 Engine › Main Moving System › Crankshaft › Components

Main Moving System: Crankshaft: Components

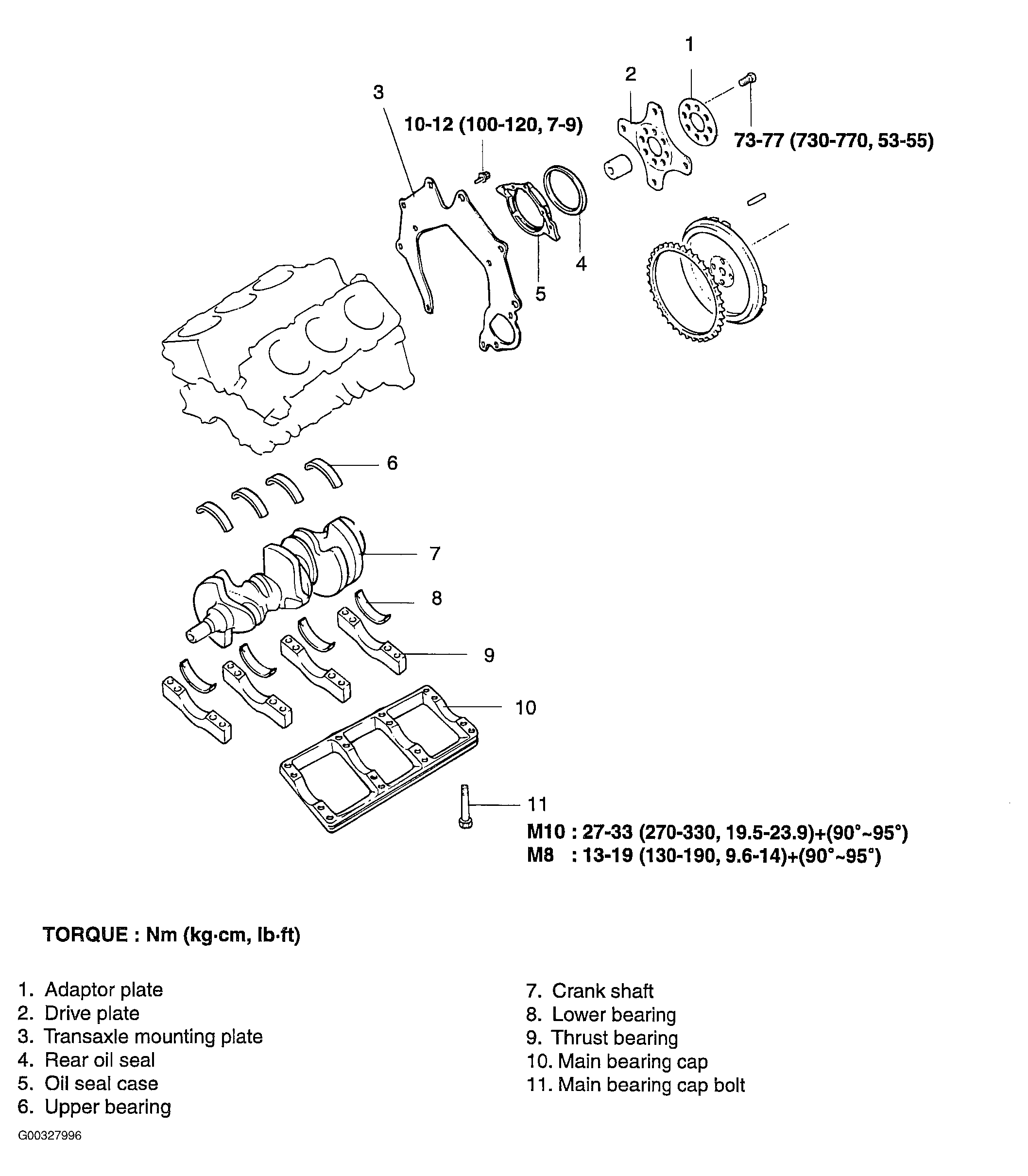

Fig 1: Removing & Installing Crankshaft
G00327996Courtesy of KIA MOTORS AMERICA, INC.
