Installation (2.7L V6)

Improper arrangement of spark plug cables will induce voltage between the cables, causing misfiring and surging at acceleration in high-speed operation.

Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.

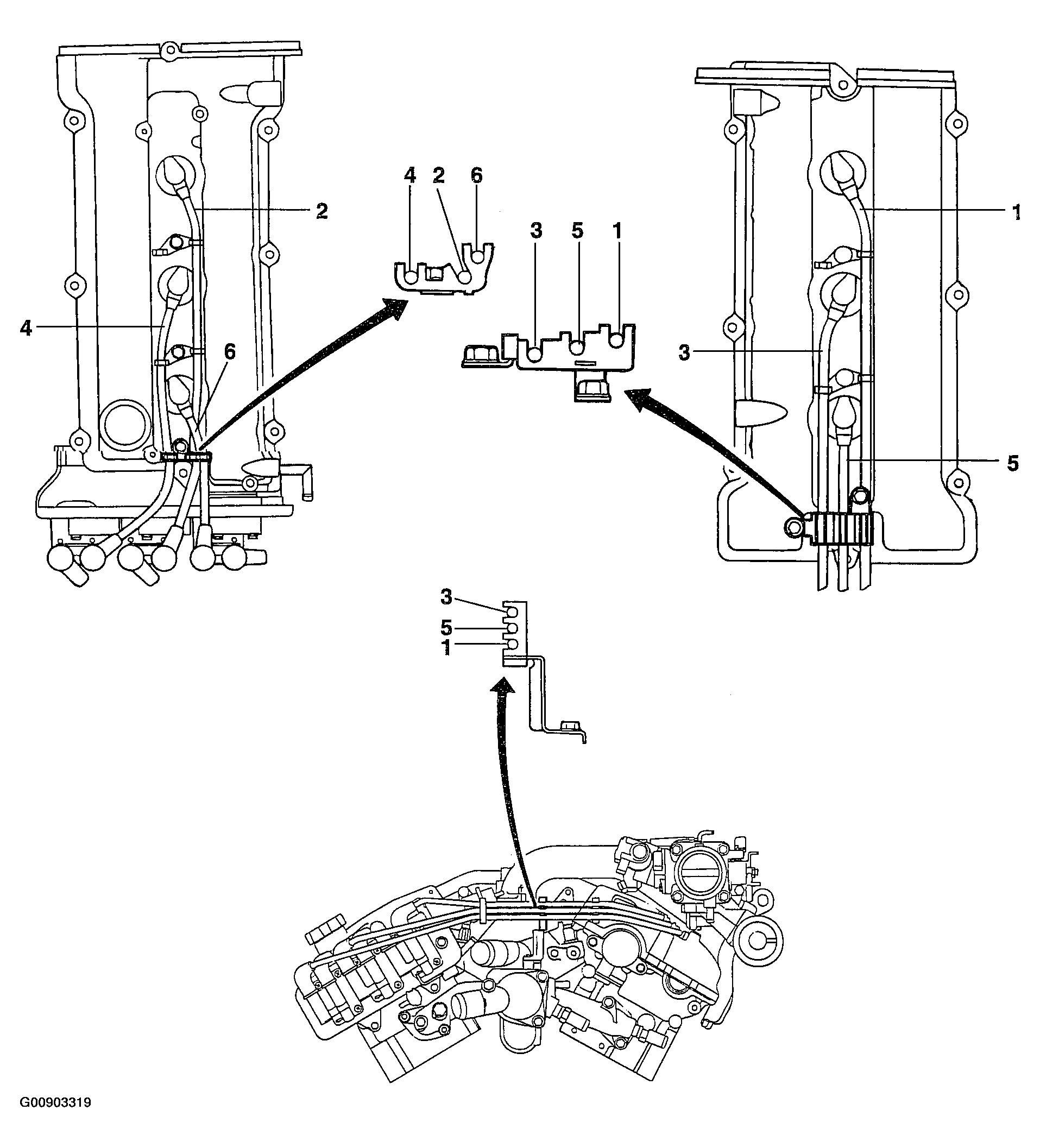

Fig 1: Identifying Spark Plug Cable Routing (2.7L V6)
G00903319Courtesy of KIA MOTORS AMERICA, INC.
