Home › Kia › 2004 › Optima LX, 2.4 6, Standard › Repair and Diagnosis › Transmission › Manual Trans › Overhaul › Manual Transaxle System › Input Shaft › Components

Input Shaft: Components

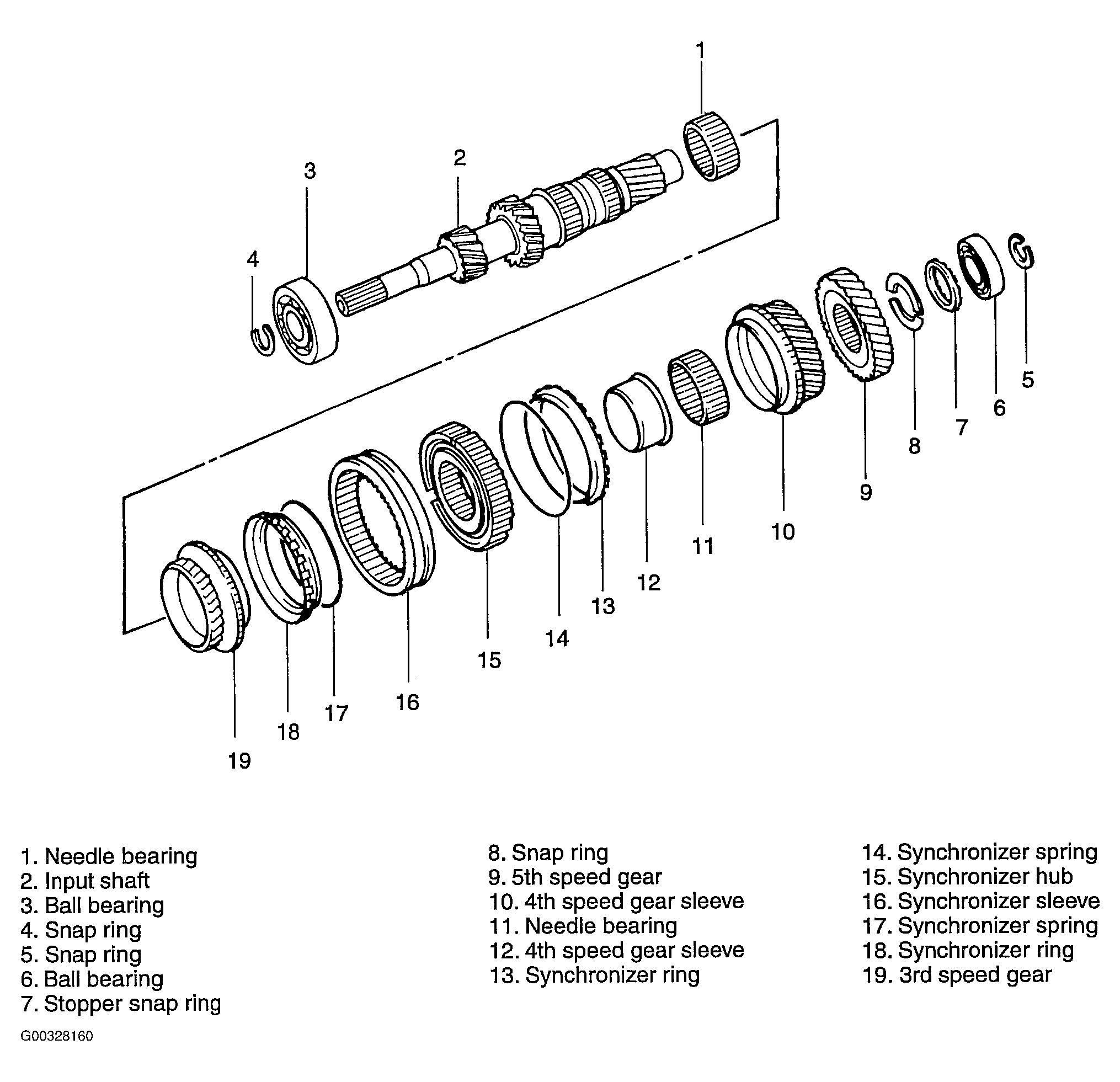

Fig 1: Exploded View Of Input Shaft
G00328160Courtesy of KIA MOTORS AMERICA, INC.
