Input Shaft: Reassembly

  1. Install the needle roller bearing, 3rd speed gear, synchronizer sleeve (3rd & 4th), synchronizer spring (1st, 2nd, 3rd, 4th), synchronizer ring (3rd & 4th), 4th speed gear sleeve, needle roller bearing, 5th and 4th speed gar, snap ring and the stopper snap ring using the special tool (09432-33300).

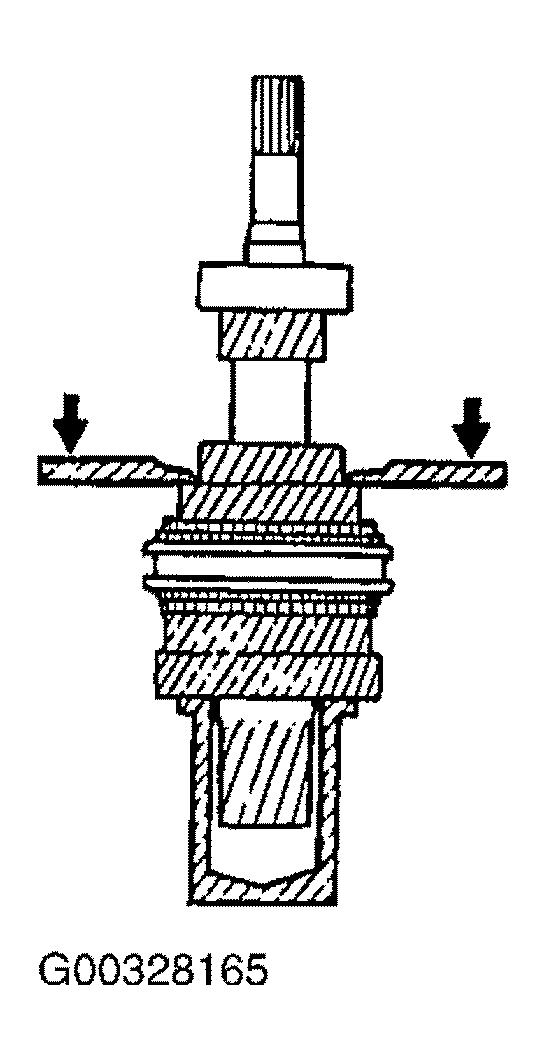

    Fig 1: Installing Stopper Snap Ring
    G00328165Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the snap ring and the ball bearing using special tool (09432-33300).
Fig 2: Installing Snap Ring & Ball Bearing
G00328166Courtesy of KIA MOTORS AMERICA, INC.
