Generator Specifications

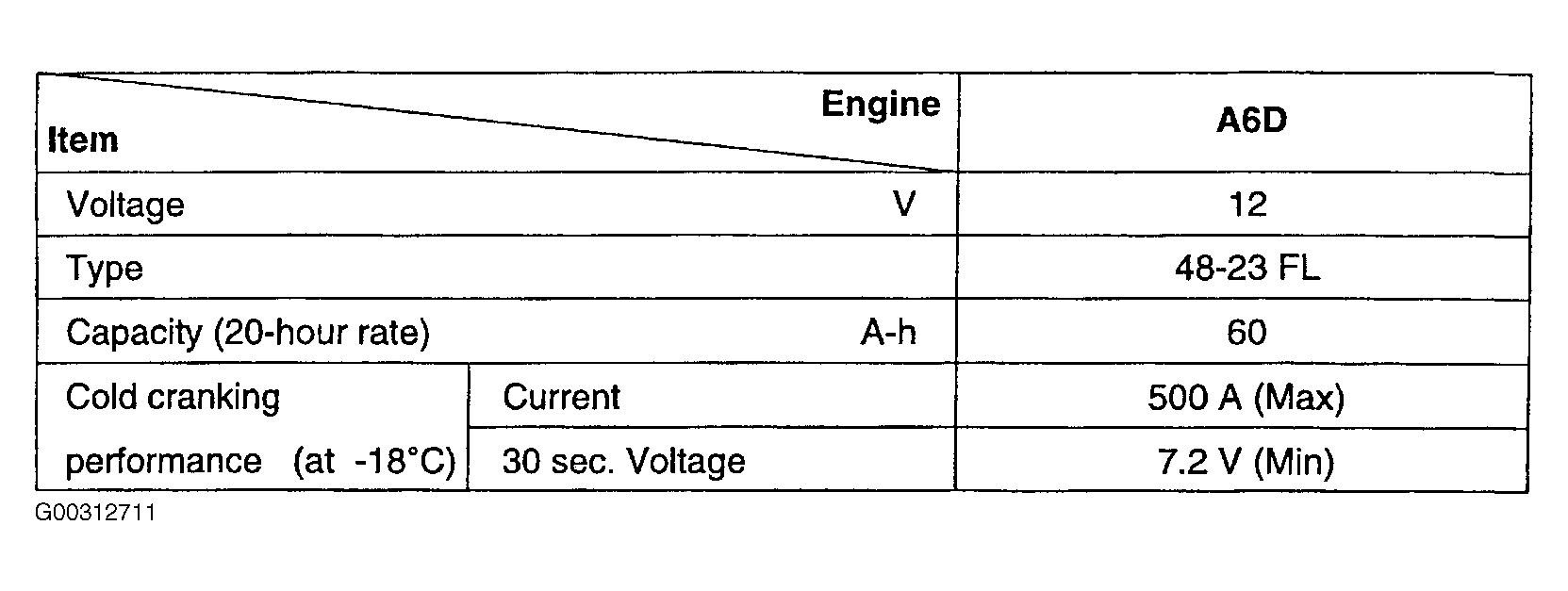

Fig 1: Battery Specifications
Courtesy of KIA MOTORS AMERICA, INC.

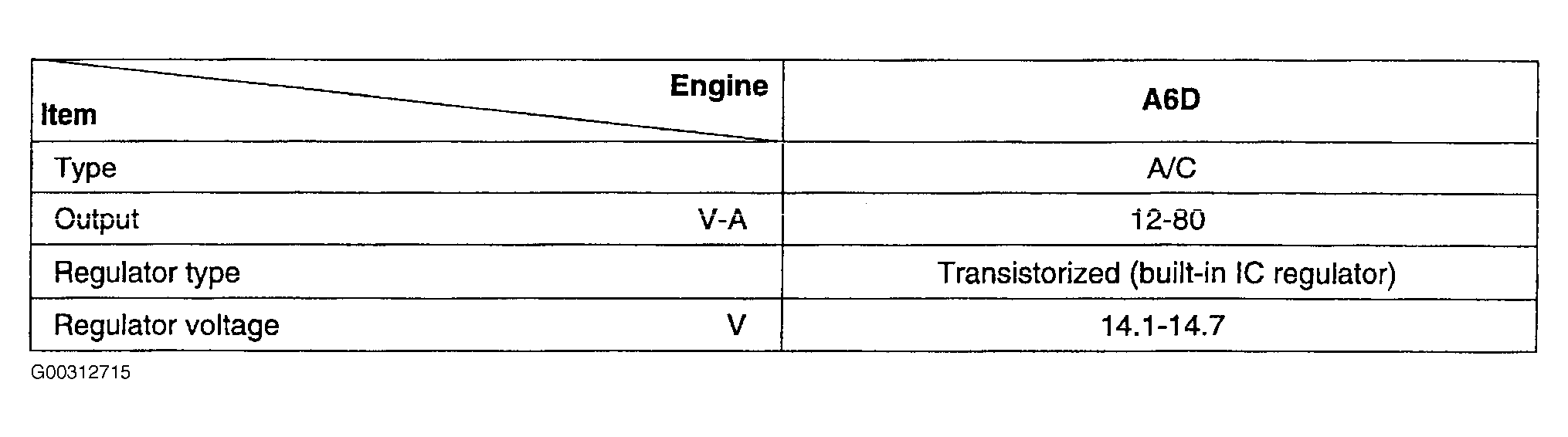

Fig 2: Generator Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
