Indicators & Gauges: Specification

Fig 1: Illustrating Cluster Bulb & Connector Position
G01095894Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Cluster Bulb Specification Chart
G01095895Courtesy of KIA MOTORS AMERICA, INC.

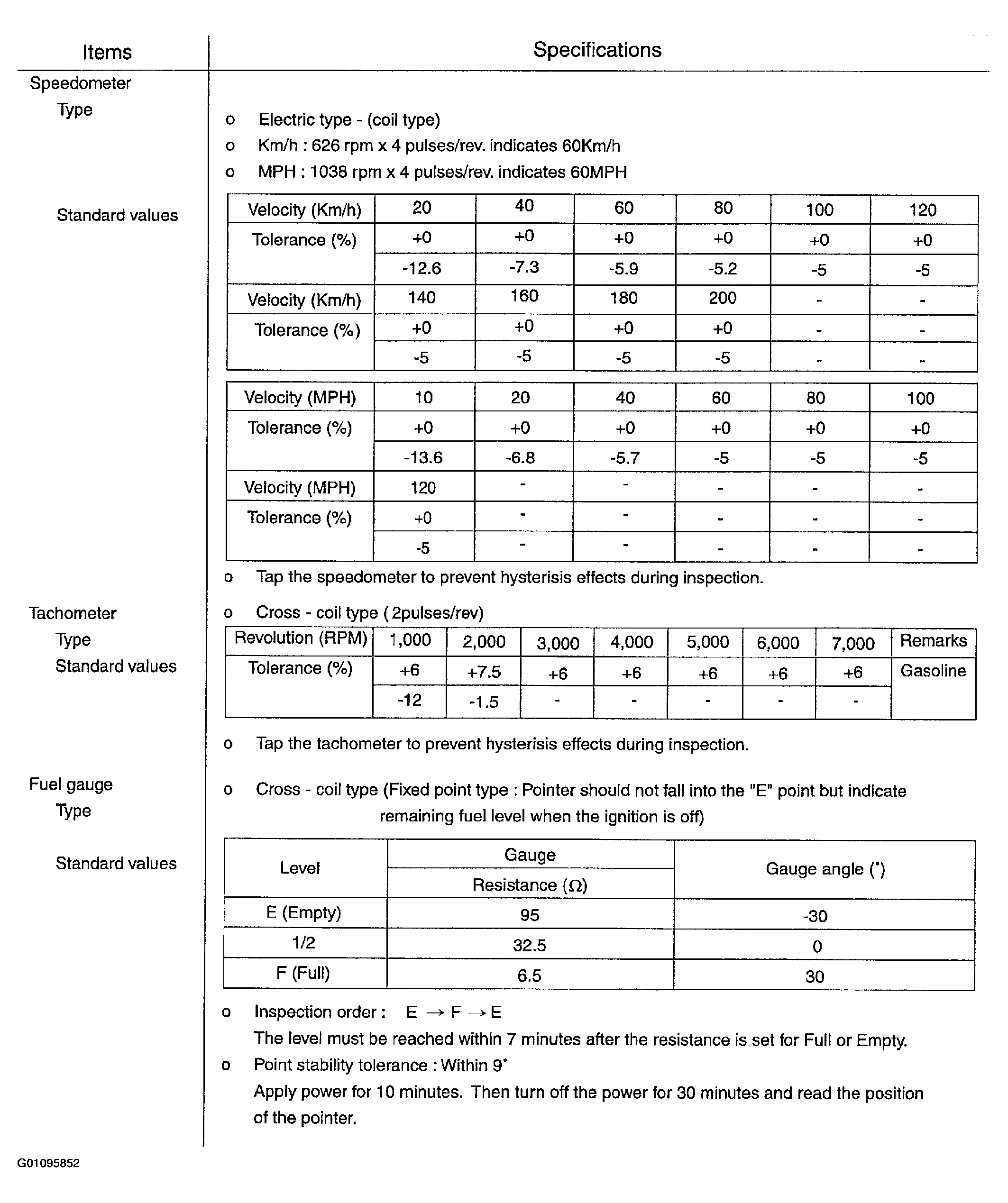

Fig 3: Cluster Gauge Specifications (1 Of 2)
G01095852Courtesy of KIA MOTORS AMERICA, INC.

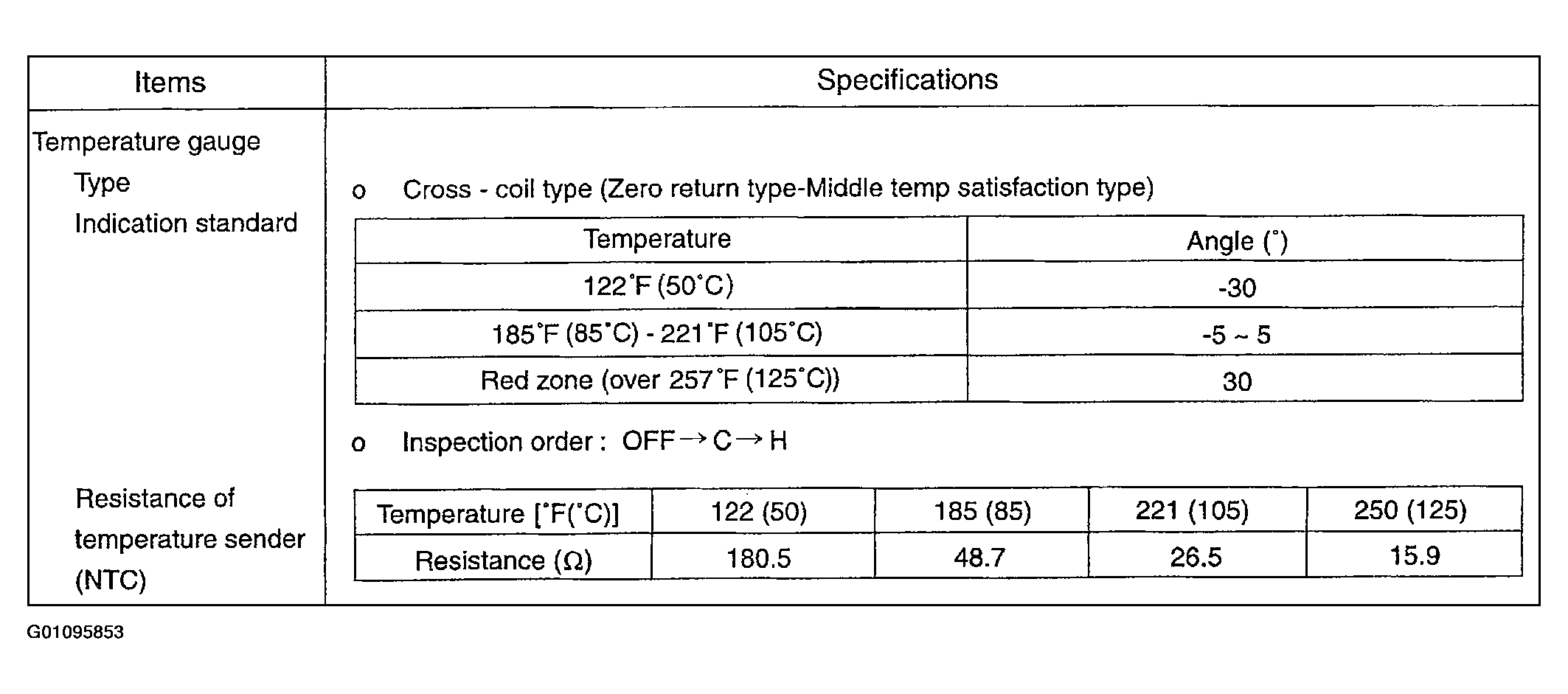

Fig 4: Cluster Gauge Specifications (2 Of 2)
G01095853Courtesy of KIA MOTORS AMERICA, INC.
