Indicators & Gauges: Troubleshooting: Notes

Fig 1: Cluster Troubleshooting Chart (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

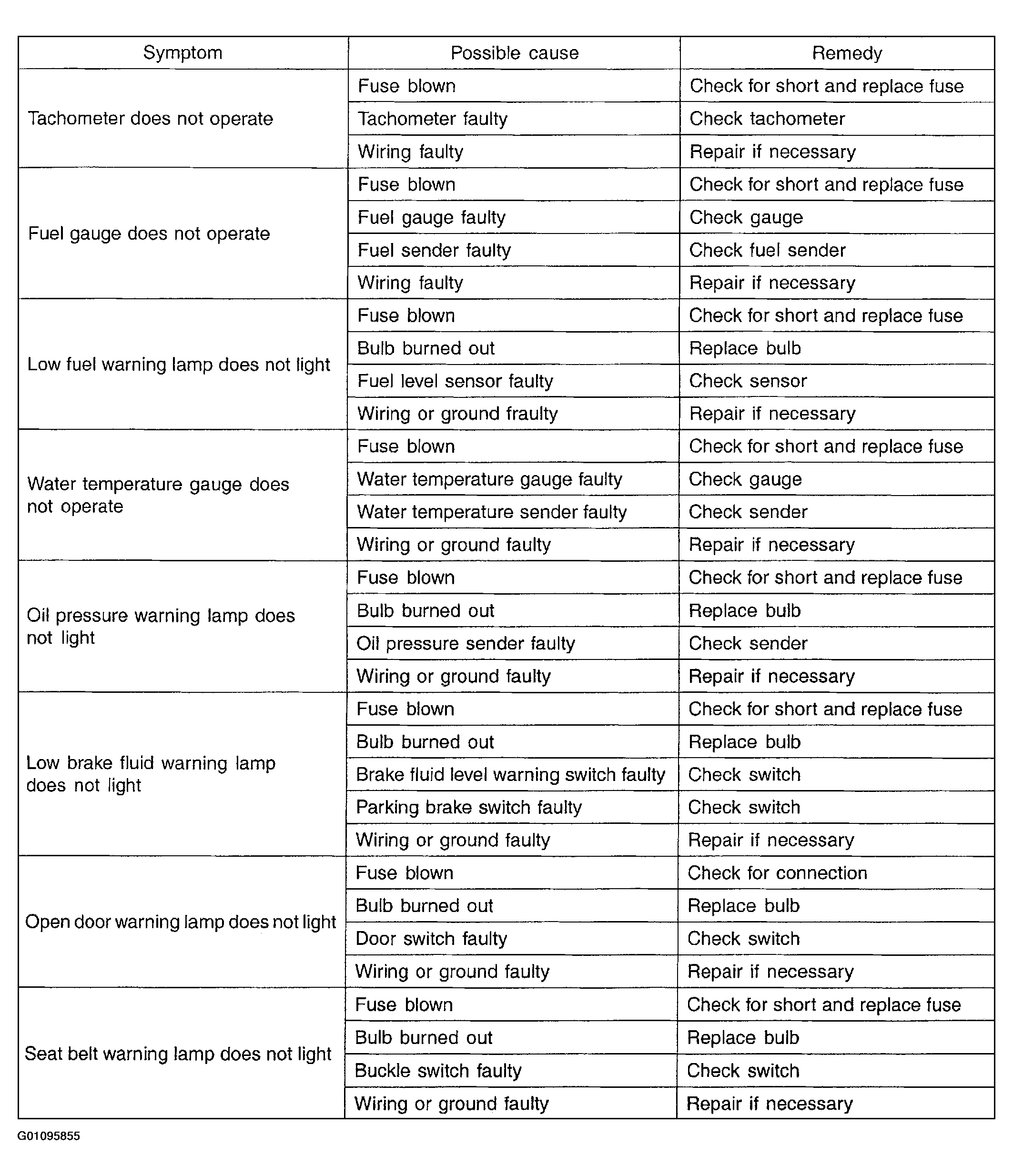

Fig 2: Cluster Troubleshooting Chart (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Cluster Troubleshooting Chart (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
