General Information: Specification

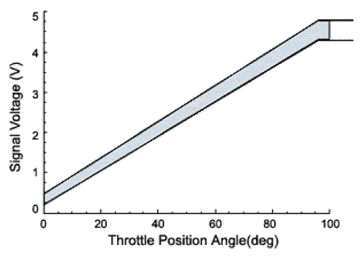

Fig 1: Throttle Position Angle And Signal Voltage Graph

TPS SPECIFICATIONS

TPS	Fully Closed	Fully Open
Signal Voltage (V)	0.3~0.8 V	4.3~4.7 V
Resistance (kΩ)	Terminal 1 and 3	0.71~1.38 kΩ at all temperature	2.7 kΩ at all temperature
Terminal 1 and 2	1.6~2.4 kΩ at all throttle position
