Control Circuit Inspection

Ignition "OFF"
Disconnect CCV connector
Measure resistance between terminal 1 of the CCV harness connector and 20 of the ECM harness connector
1. Specification: Approx. 0Ω

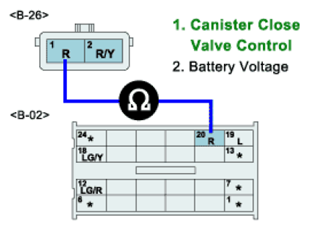

  Fig 1: Measuring Resistance Between Terminal 1 Of CCV Harness Connector And 20 Of ECM Harness Connector
Is resistance within specification?
YES
1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
1. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
