FixVault
Home
›
Kia
›
2004
›
Rio Base, Automatic
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering Systems
›
General
›
Troubleshooting Guide
›
Manual Steering
Manual Steering

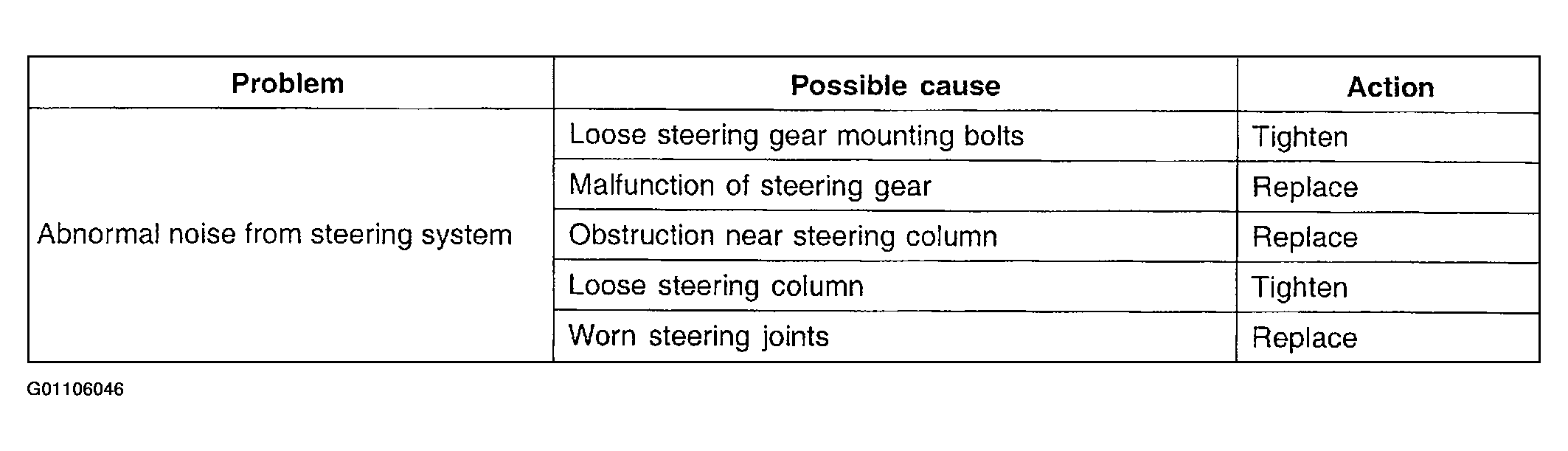

Fig 1: Manual Steering Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

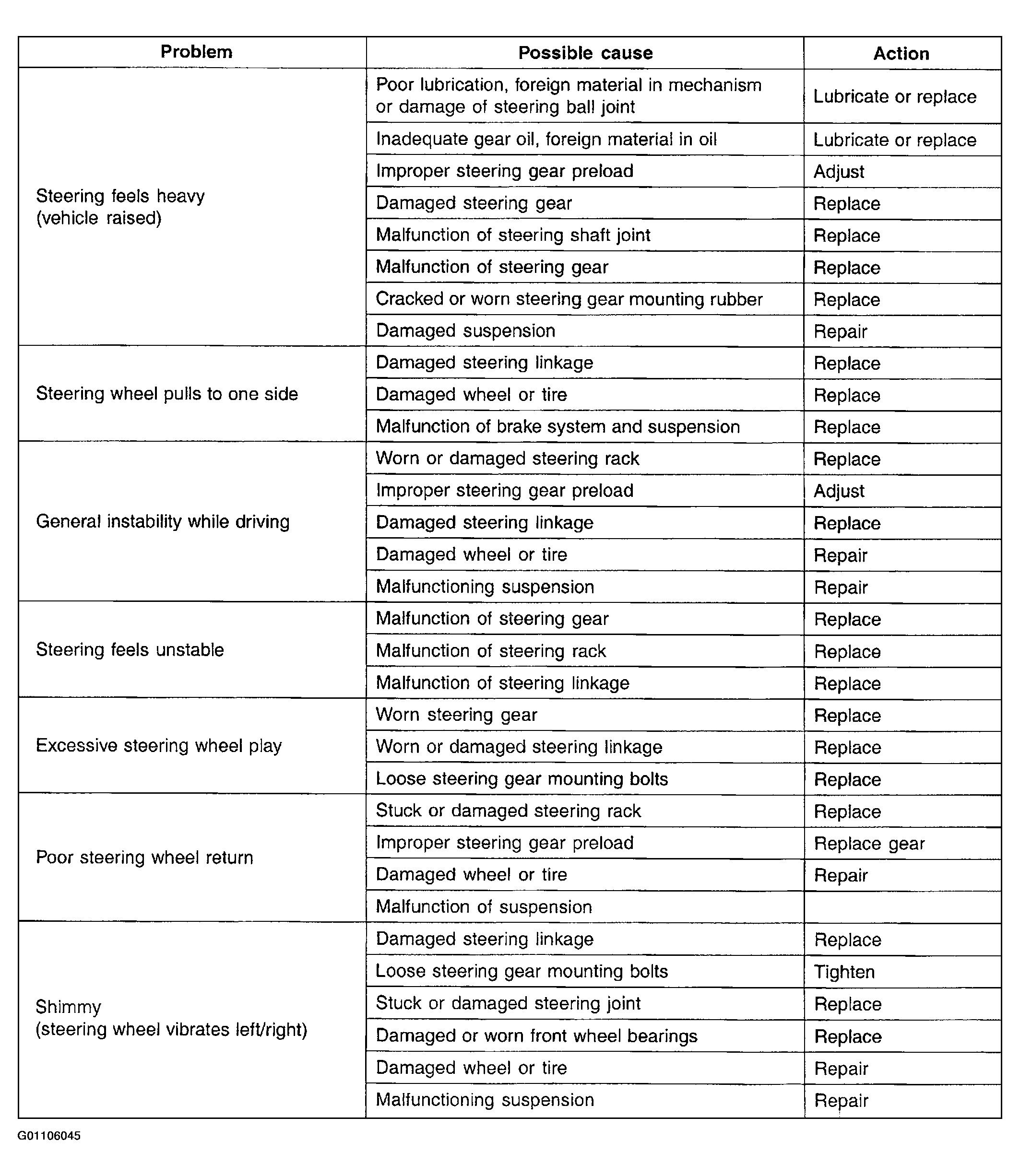

Fig 2: Manual Steering Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
