Automatic Transmission - Removal & Installation: Component

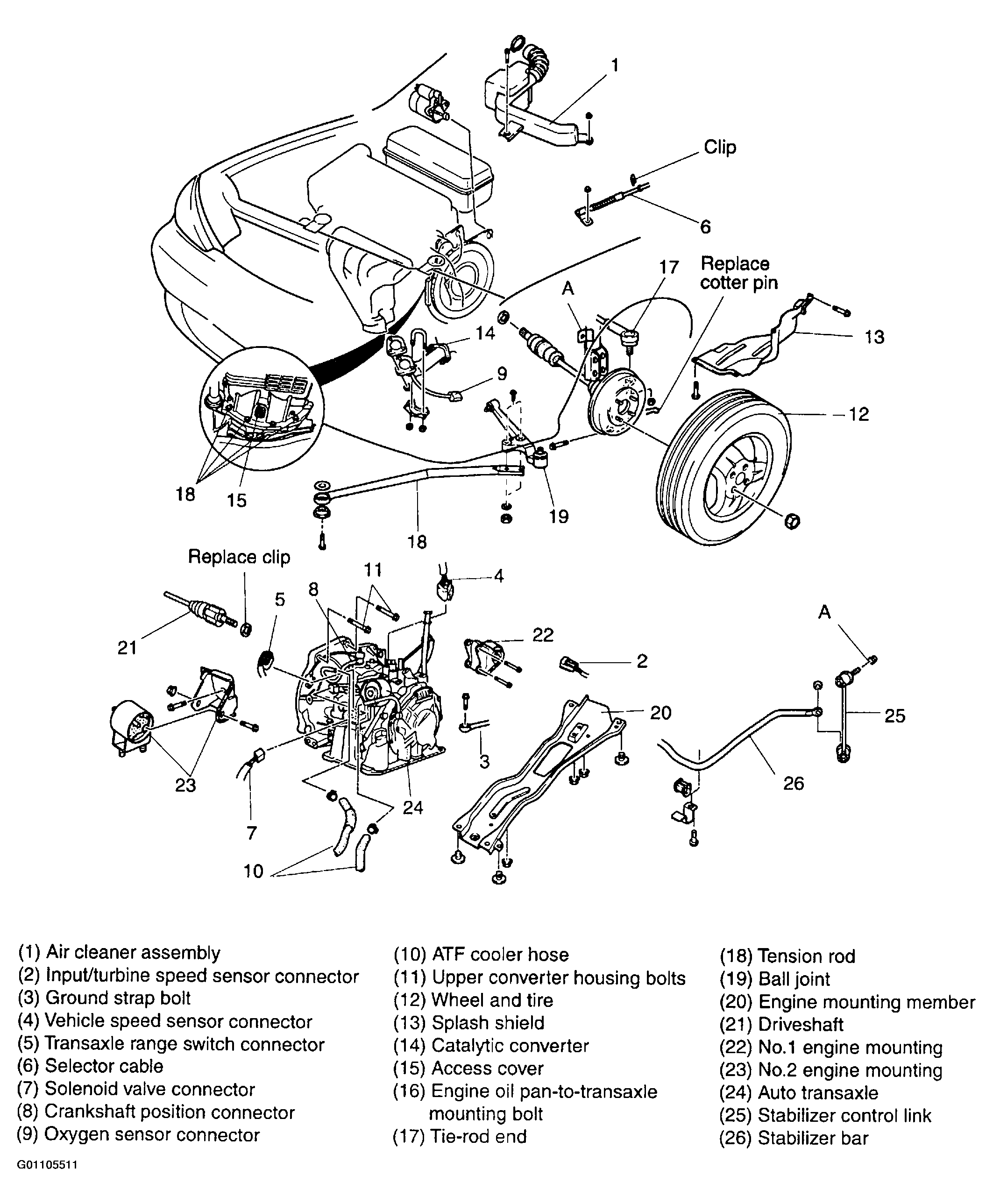

Fig 1: Exploded View Of Transaxle Removal
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
