Engine Compartment Fuse/Relay Box
NOTE:

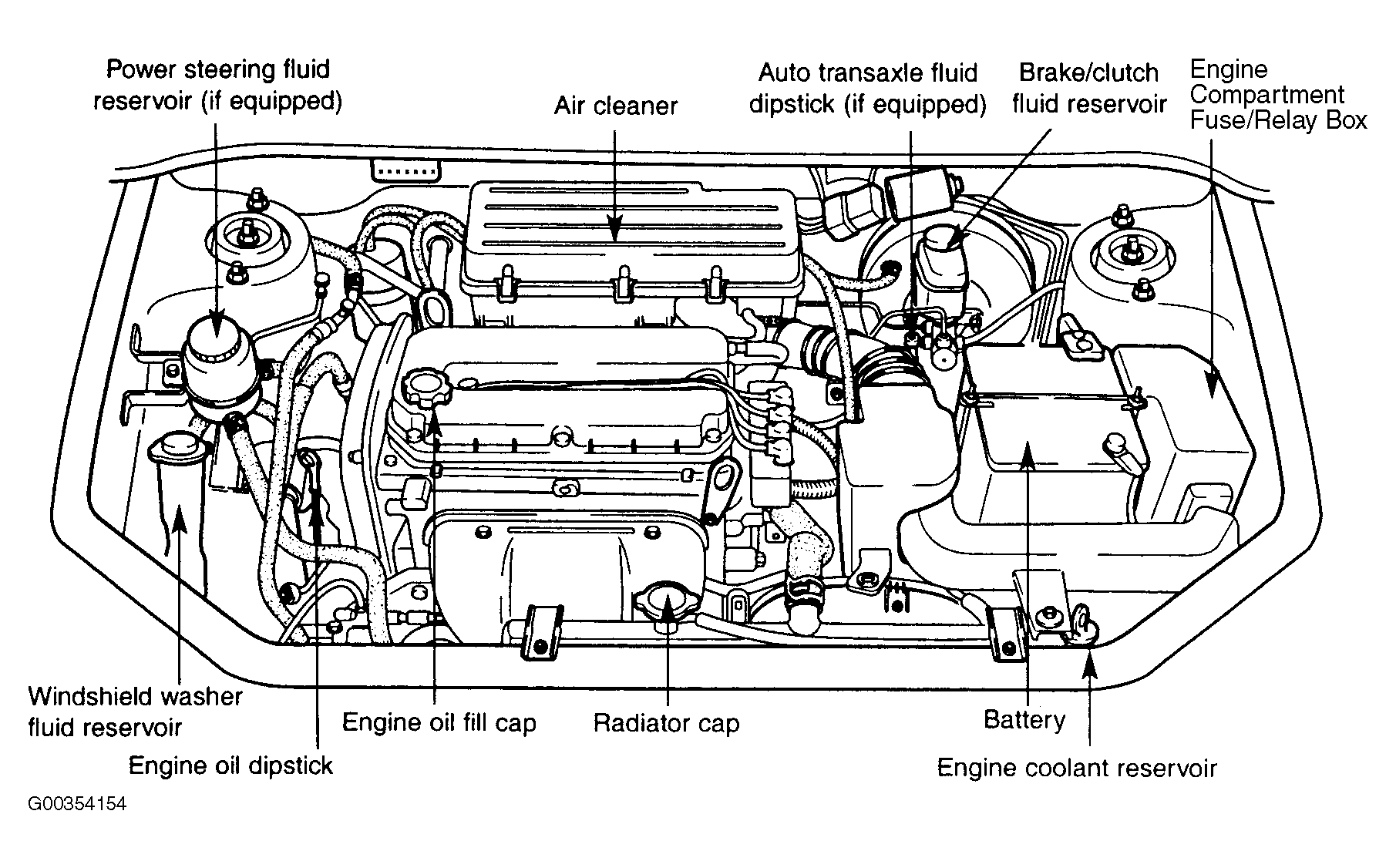

Engine compartment fuse/relay box is located on driver's side of engine compartment, in front of left shock tower. See Fig 1.

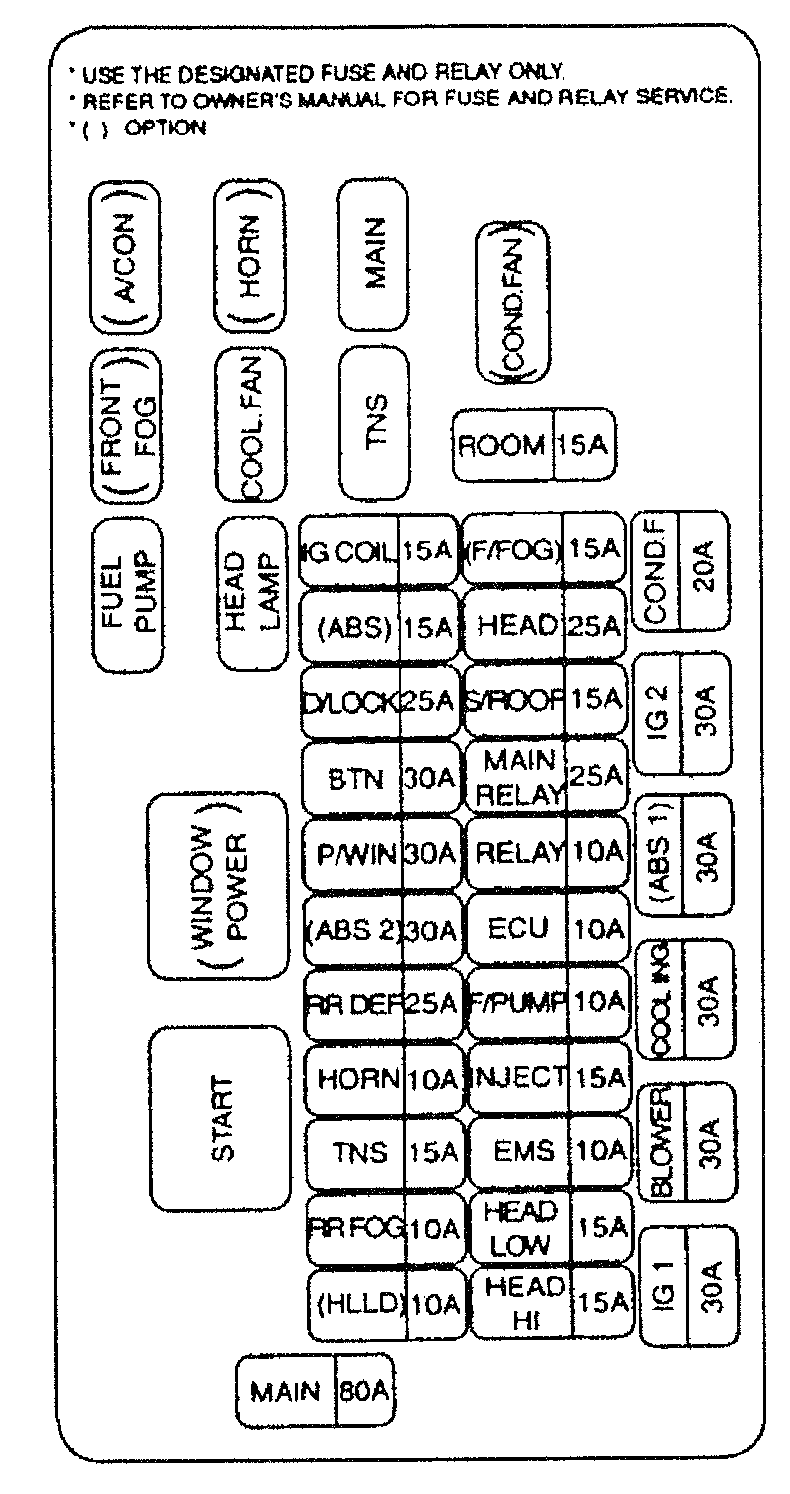

For fuse and relay locations within the engine compartment fuse/relay box, refer to Fig 2.
Use designated fuses only.
IDENTIFYING FUSES (ENGINE COMPARTMENT FUSE/REALAY BOX)
| Description | Fuse Rating | Protected Components |
|---|---|---|
| (ABS)* | 15A | ABS |
| RR FOG | 10A | Rear fog light (if equipped) |
| F/FOG | 15A | Front fog light (if equipped) |
| MAIN | 80A | Battery is not rechargeable |
| IG 1 | 30A | (It be automatically connecteded to the secondary fuse) CIGAR 10A, AUDIO 10A, IG COIL 15A, TURN LAMPS 10A, A/BAG 10A, W1PER(RR) 15A, WIPER(FRT) 15A, RELAY 10A, START 10A |
| BLOWER | 30A | Heater |
| COOLING | 30A | Cooling fan |
| (ABS 1)* | 30A | ABS |
| COND. FAN | 20A | Condenser fan |
| HEAD-HI | 15A | Head lamps (High) |
| HEAD-LOW | 15A | Head lamps (Low) |
| EMS | 10A | Engine sensors |
| INJECT | 15A | Injector, O2 sensor |
| F/PUMP | 10A | Fuel pump |
| ECU | 10A | Engine control unit, ECAT unit, Main relay |
| RELAY | 10A | Blower motor, Power windows, Rear window defroster, Head lamps (Airbag equipped vehicle) |
| HLLD | 10A | Headlight leveling device (if equipped) |
| MAIN RELAY | 25A | (It will be automatically connected to the secondary fuse) EMS 10A, INJECTOR 15A, F/PUMP 10A, ECU 10A |
| S/ROOF | 15A | Sunroof |
| HEAD | 25A | (It will be automatically connected to the secondary fuse) HEAD-HI 15A, HEAD-LOW 15A, FOG LAMP (RR) 10A |
| IG 2 | 30A | |
| TNS | 15A | (It will be automatically connected to the secondary fuse) TAIL(LH) 10A, TAIL(RH) 10A |
| HORN | 10A | Horn |
| RR DEF | 25A | Rear window defroster |
| (ABS 2)* | 30A | ABS |
| P/WIN | 30A | Power windows |
| BTN | 30A | (It will be automatically connected to the secondary fuse) MEMORY/ROOM 10A, STOP 15A, HAZARD 15A |
| D/LOCK | 25A | Power door locks |
| IG COIL | 15A | Ignition coil |
| ROOM | 15A | Room Lamp, Meterset, Audio, Warning sound |
| * : ( ) Optional | ||
