Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located on left side of instrument panel, to left of steering wheel. See Fig 1.

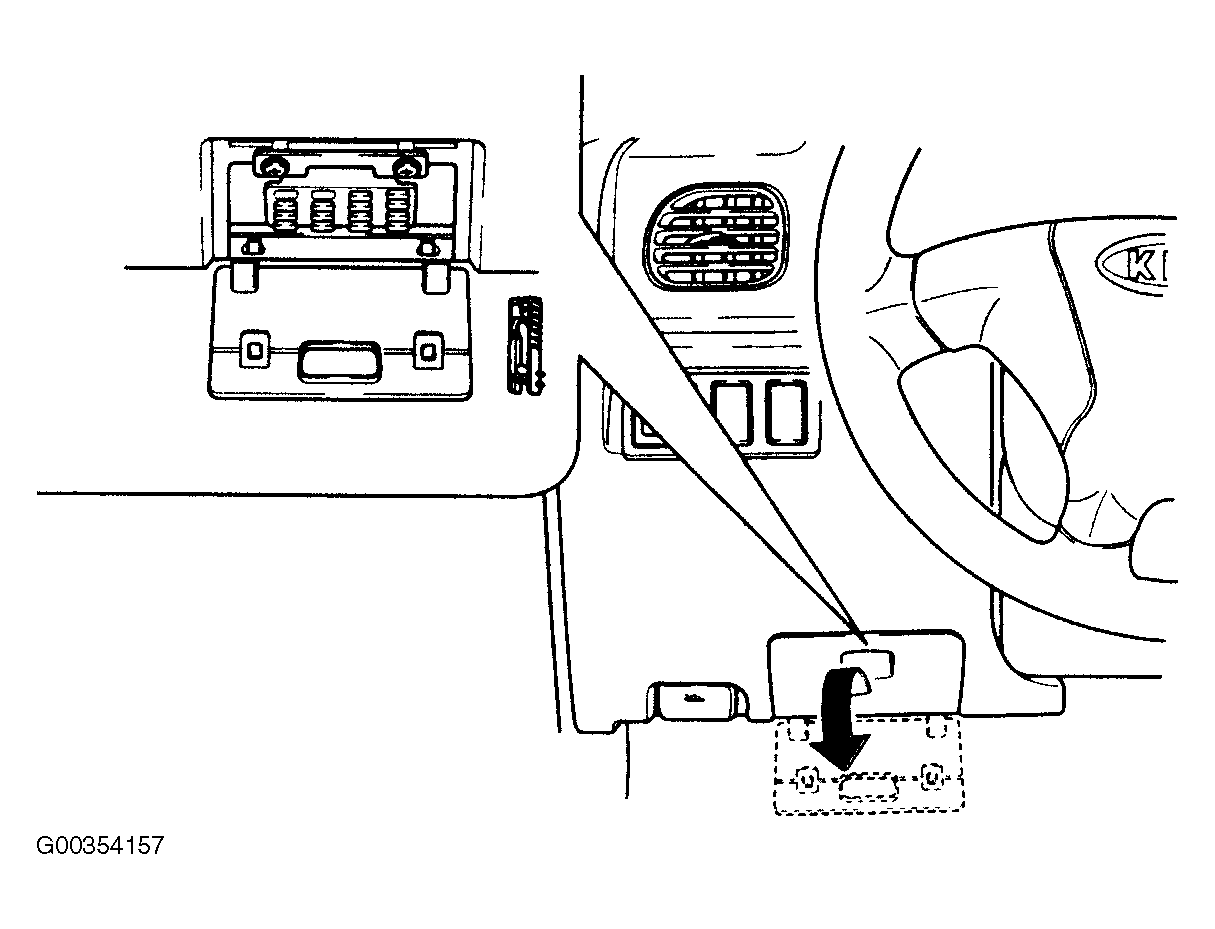

Fig 1: Locating Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.

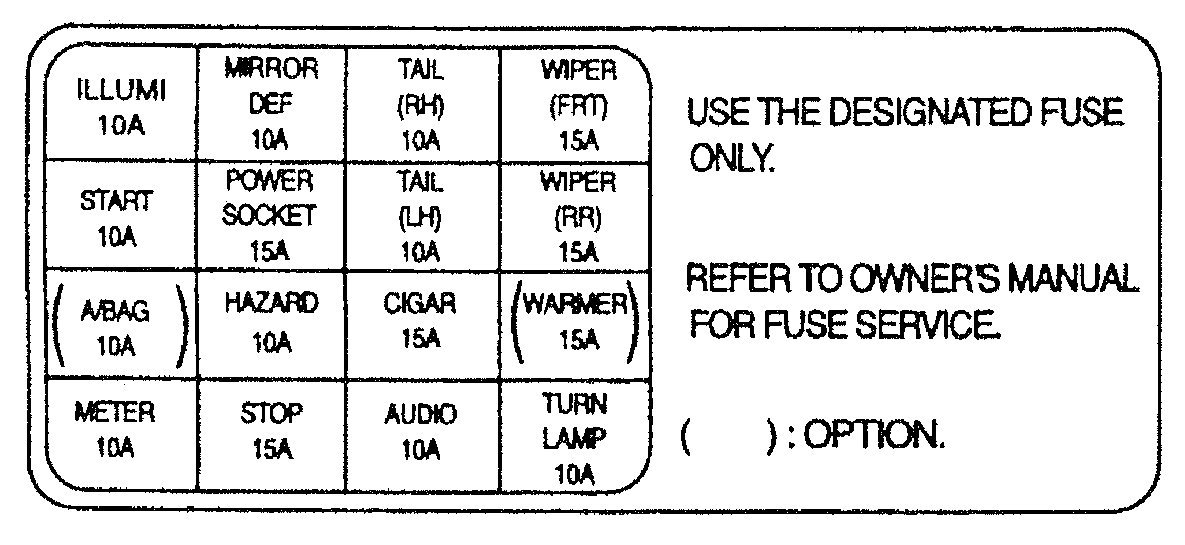

Fig 2: Identifying Components On Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.

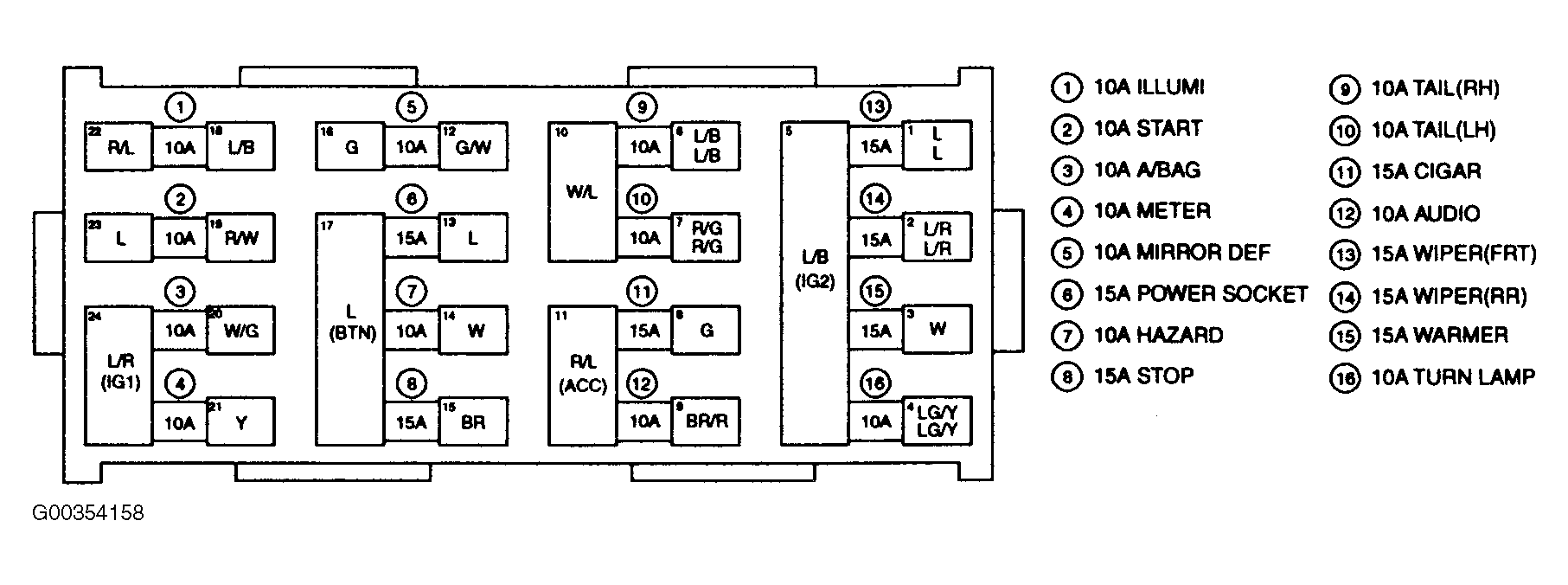

Fig 3: Identifying Connectors On Back Side Of Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.

For fuse locations within the passenger compartment fuse/relay box, refer to Fig 2.

Use designated fuses only.

IDENTIFYING FUSES (PASSENGER COMPARTMENT FUSE BOX)

Description	Fuse Rating	Protected Components
(A/BAG)*	10A	Airbag
TURN LAMP	10A	Turn Signal Lamps
METER	10A	Meterset, Back-up Lamps, Warning Sound
ILLUMI	10A	Illumination
POWER SOCKET	15A	Trunk Room Lamp, Power Socket
HAZARD	10A	Hazard Lamps
STOP	15A	Stop Lamps, ABS
TAIL (RH)	10A	Tail Lamps (Right-Rear / Left-Front) Switch Illumination
TAIL (LH)	10A	Tail Lamps (Left-Rear / Right-Front)
CIGAR	15A	Cigarette Lighter
AUDIO	10A	Audio, Electric Rearview Mirror
WIPER (FRT)	15A	Wiper & Washer (Front), Sunroof
WIPER (RR)	15A	Wiper & Washer (Rear)
(WARMER)*	15A	Seat Warmer
FRONT WIPER	10A	Front Wiper & Washer
START	10A	Engine Control Unit, ECAT Unit
*( ): Optional.
