General Information: Specification

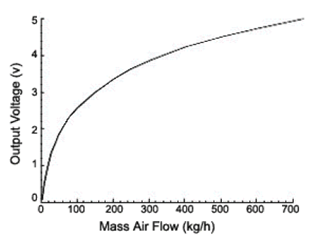

Fig 1: Mass Air Flow And Output Voltage Graph

G07331512

VOLTAGE REFERENCE CHART

Test Condition	MAF (V)
IG. ON Approx.	0.1V
Idle	Approx. 0.6~0.8V
