Control Unit & Sensor Terminal Alignment
Control Unit & Sensor Terminal Alignment

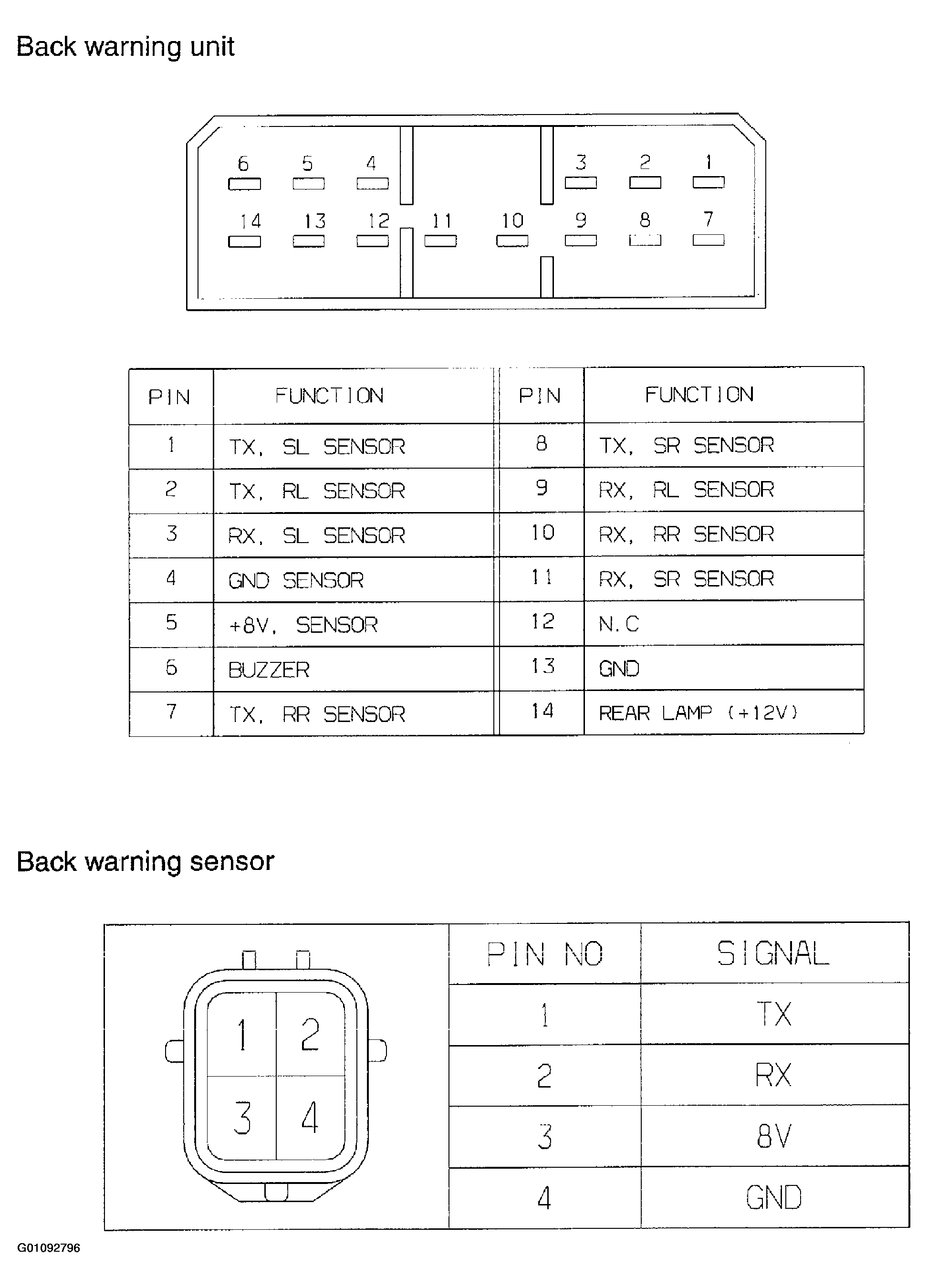

Fig 1: Identifying Back Warning System Control Unit & Sensor Terminal Alignment
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
