System Block Diagram
System Block Diagram

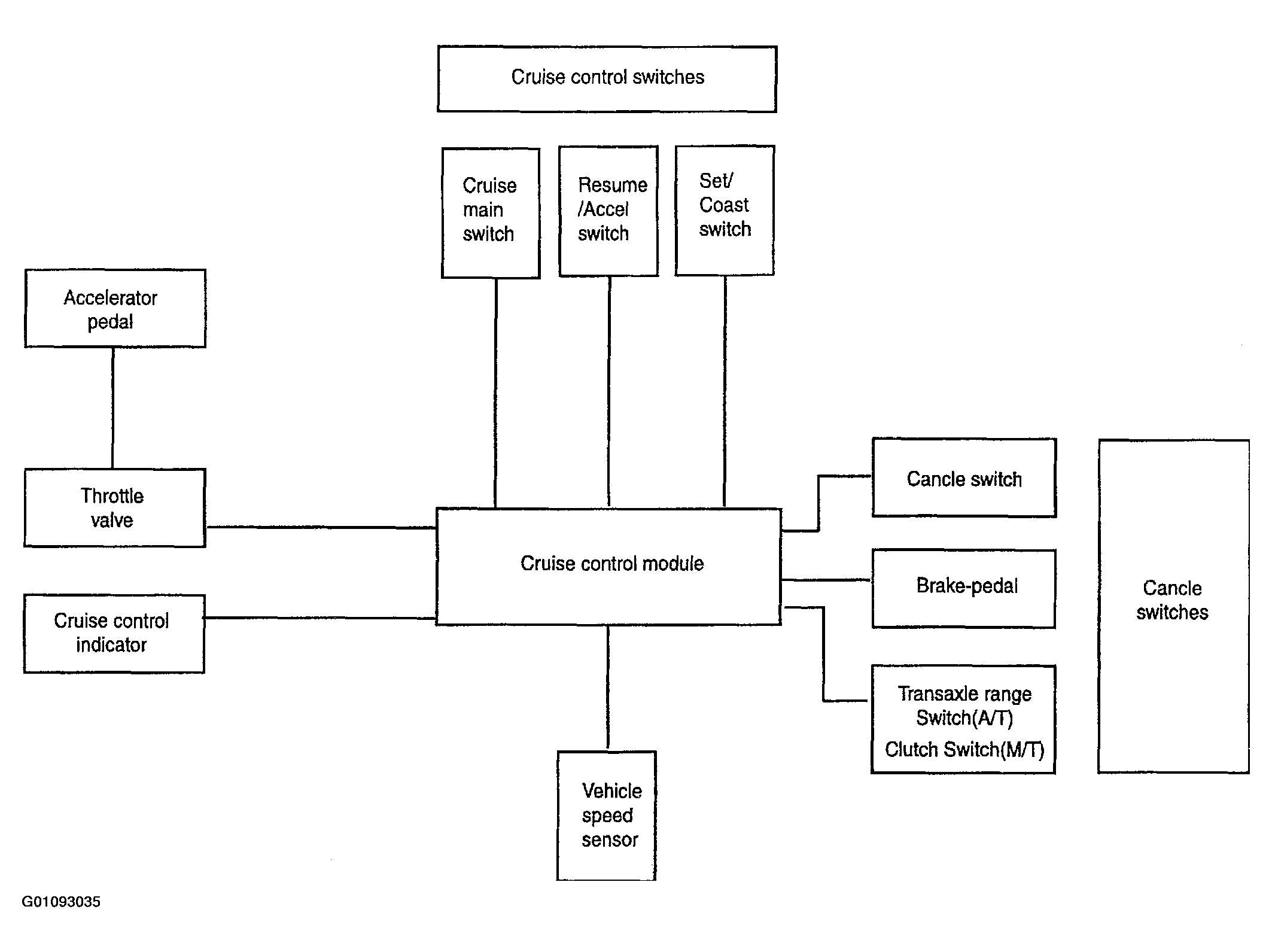

Fig 1: Identifying System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
