Checking Input And Output Shaft Speed Sensor

Measure the wave pattern between No. 2 and 3 using Hi-Scan.

Fig 1: Identifying Input Shaft Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

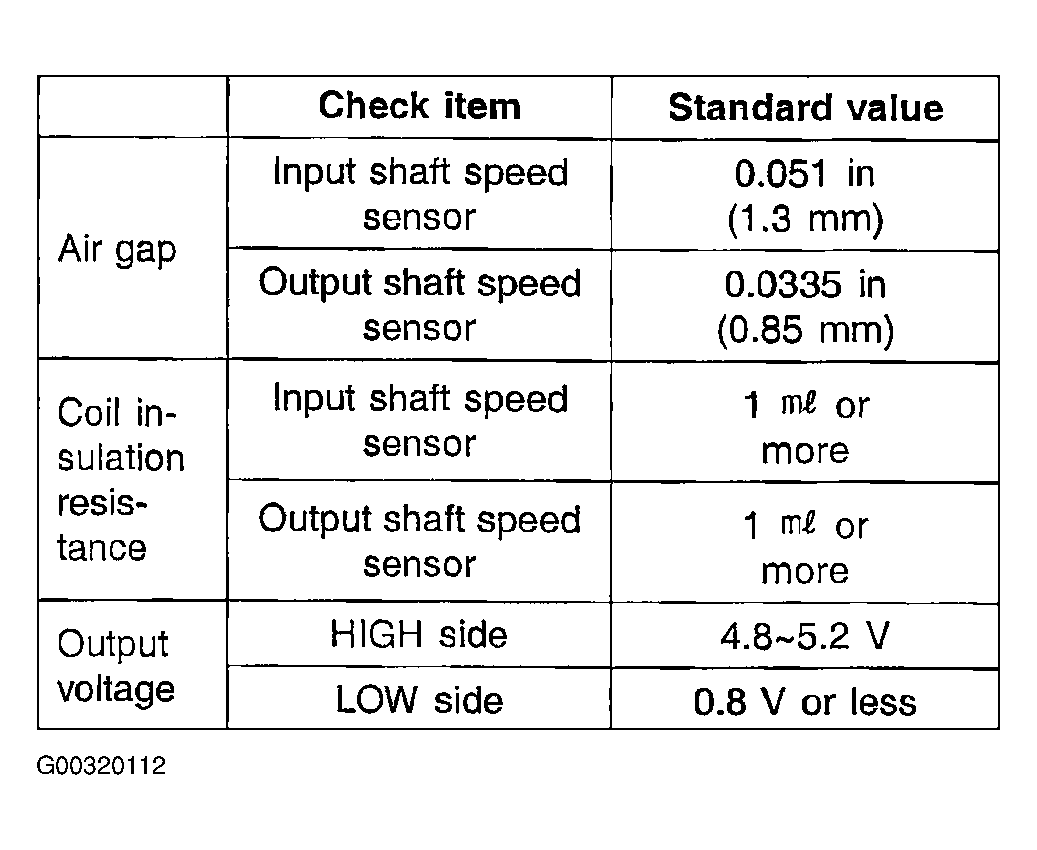

Fig 2: Input/Output Shaft Specification Chart
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Output Shaft Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
