Immobilizer Control System
›
Diagnosis
›
System Block Diagram
System Block Diagram

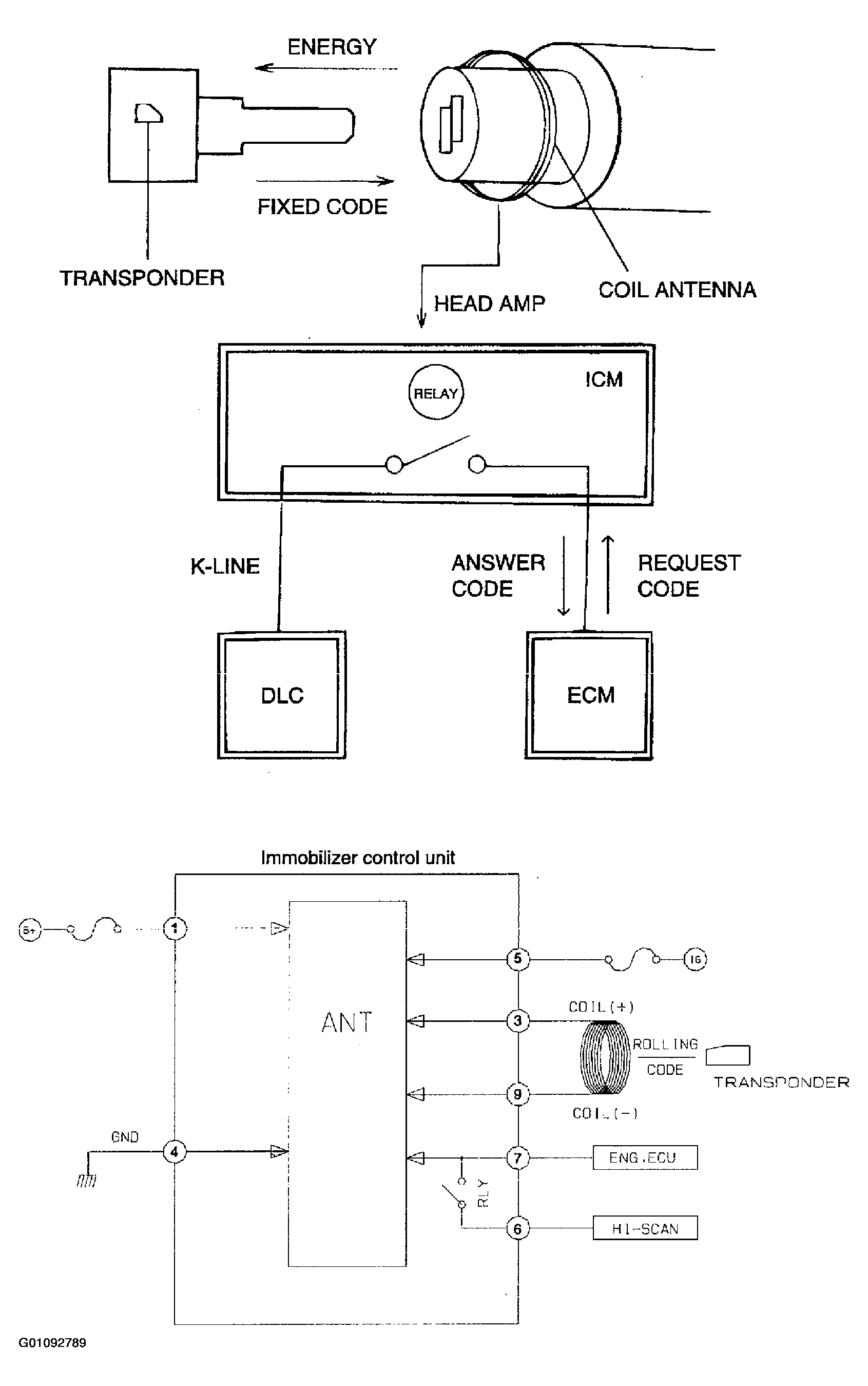

Fig 1: Identifying System Block Circuit Diagram
