Keys Registration And Correction

Initial registration method

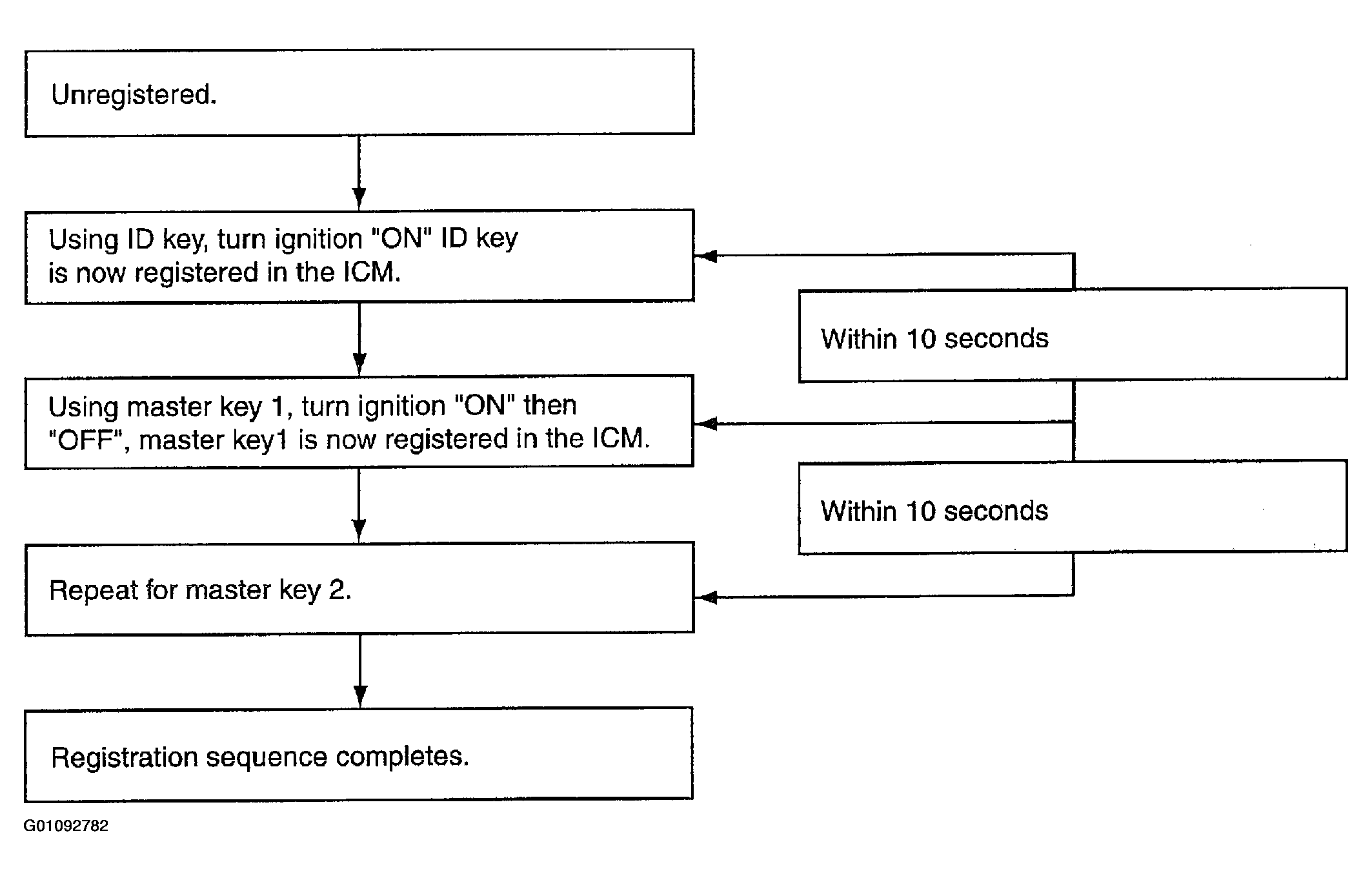

Fig 1: Identifying Initial Registration Method
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Once the password is mis-registered, it is impossible to register new password during 10 seconds regardless of ignition ON/OFF. When the new master keys have been registered, the codes for existing master keys are all cleared.

Registration correction for master keys
In cases when the master key is lost or where a new set of master keys need to be produced, it can be achieved using two methods.
1. Using ID key

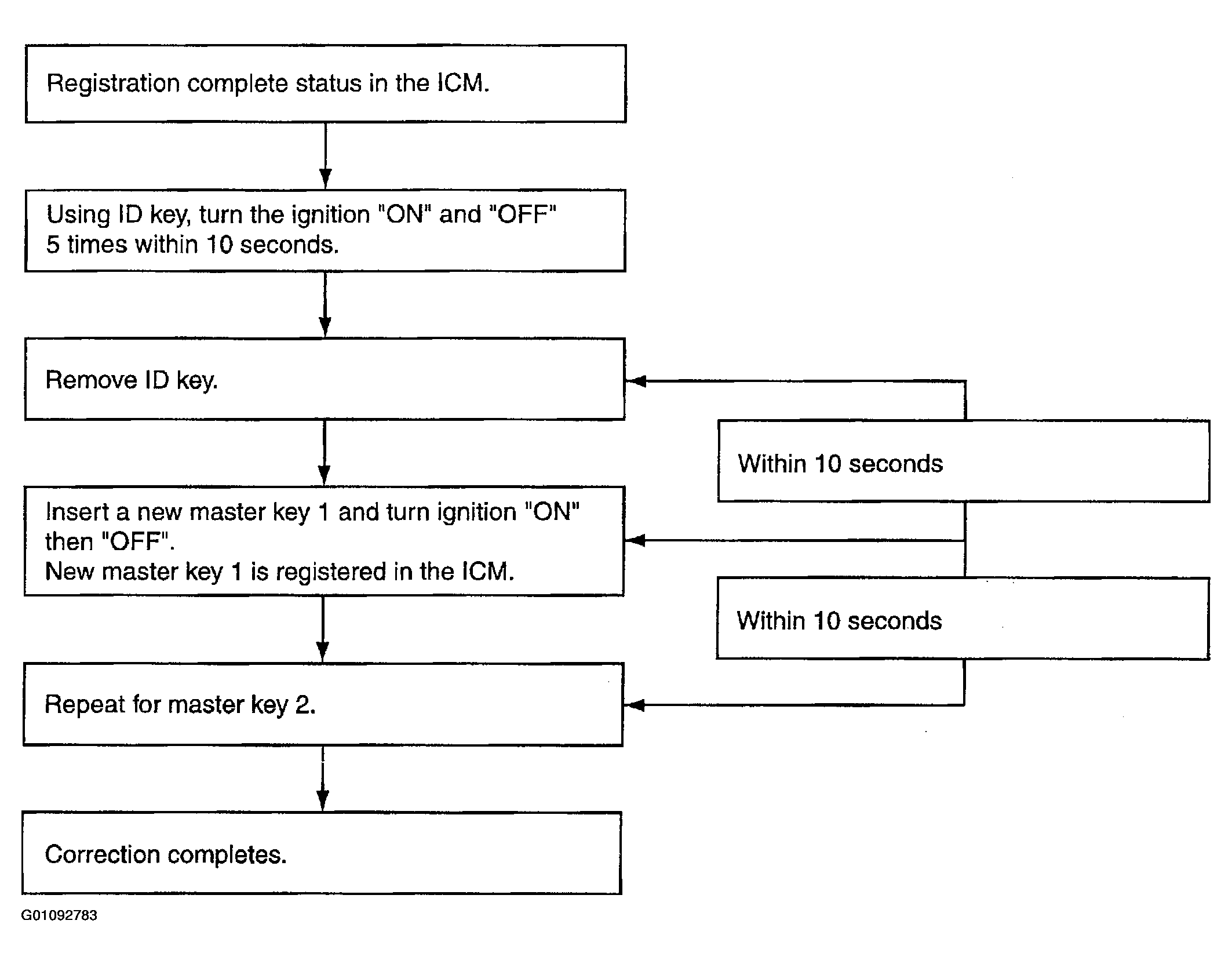

  Fig 2: Correcting Registration Using ID Key
  Courtesy of KIA MOTORS AMERICA, INC.
2. Using password
  When the customers lost the ID key, new master keys can be registered by using Hi-scan only. ID key can not be corrected and reproduced.

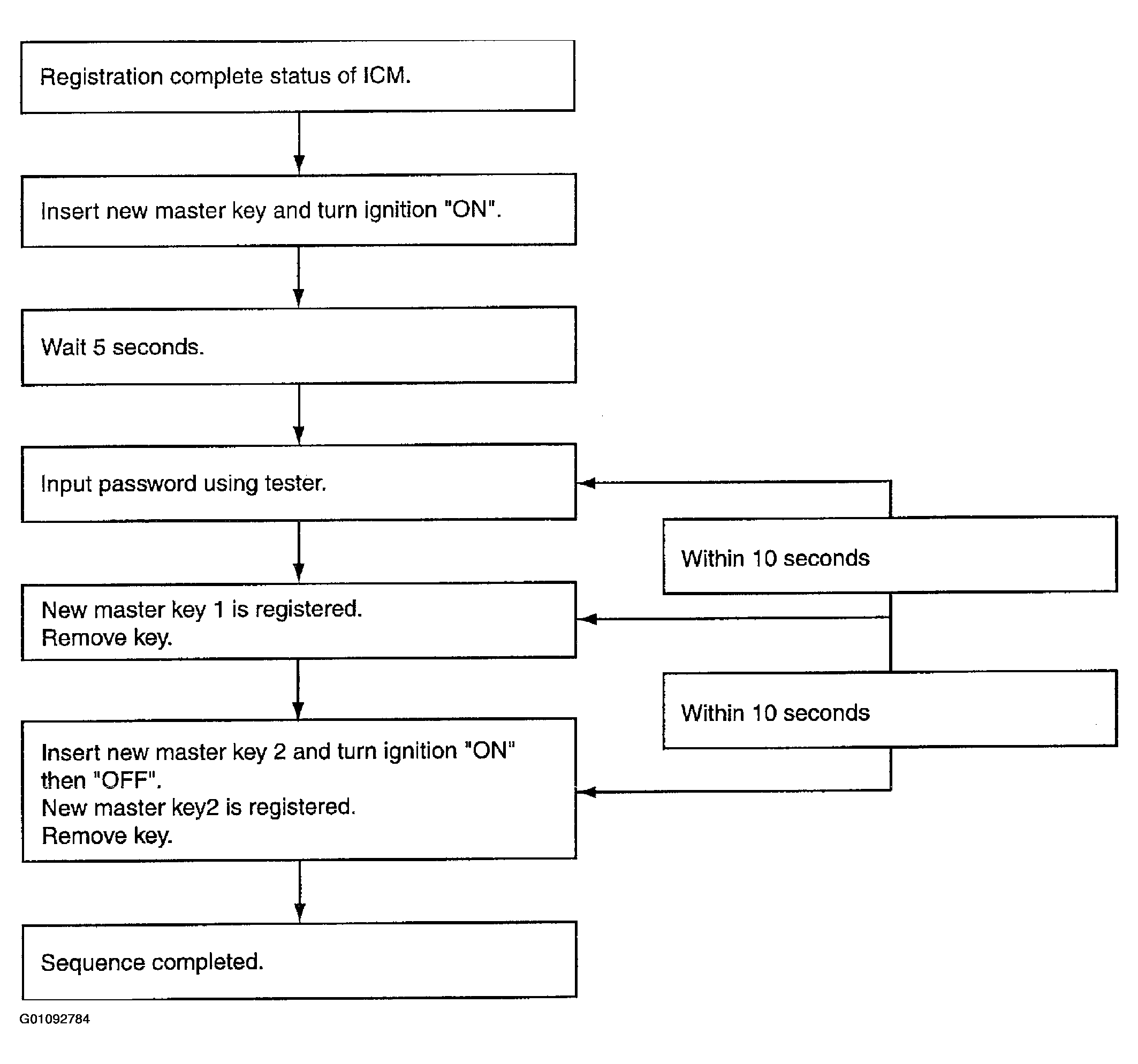

  Fig 3: Correcting Registration Using Password
  Courtesy of KIA MOTORS AMERICA, INC.
