Power Window Switch
›
Circuit Diagram
Circuit Diagram

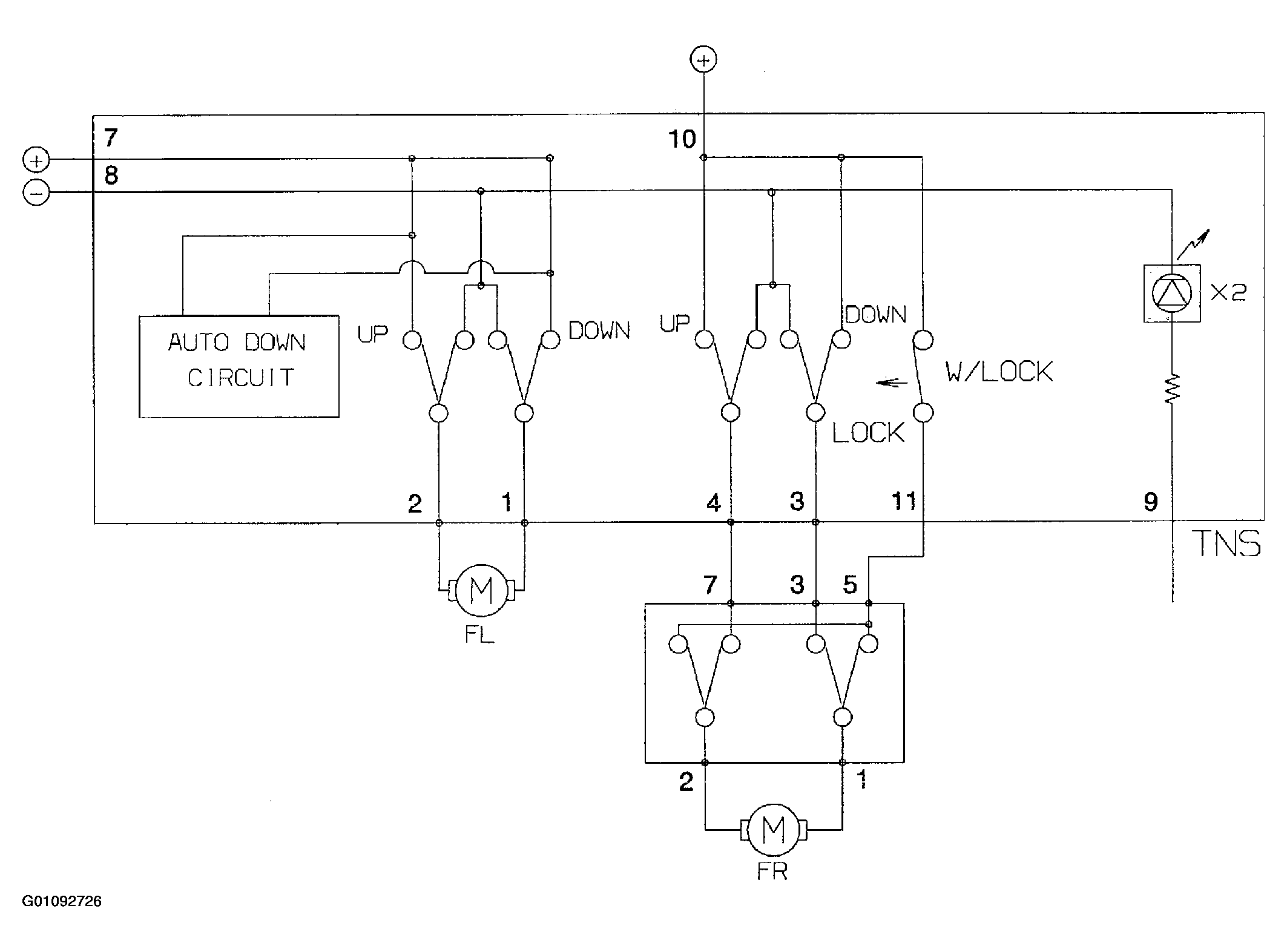

Fig 1: Identifying Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
