System Operation Flow Chart
System Operation Flow Chart

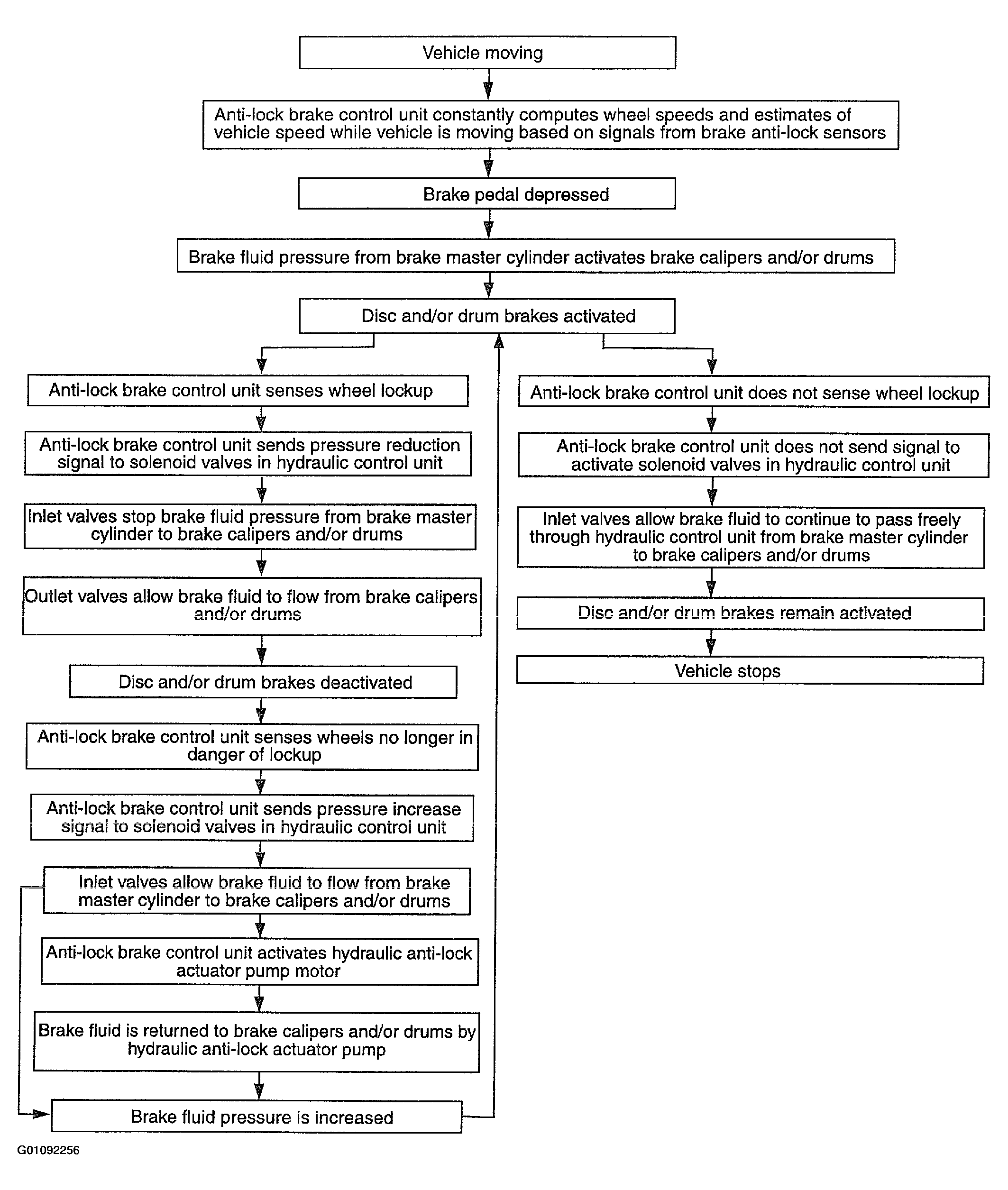

Fig 1: System Operation Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
