Charging Systems: Generator: Removal

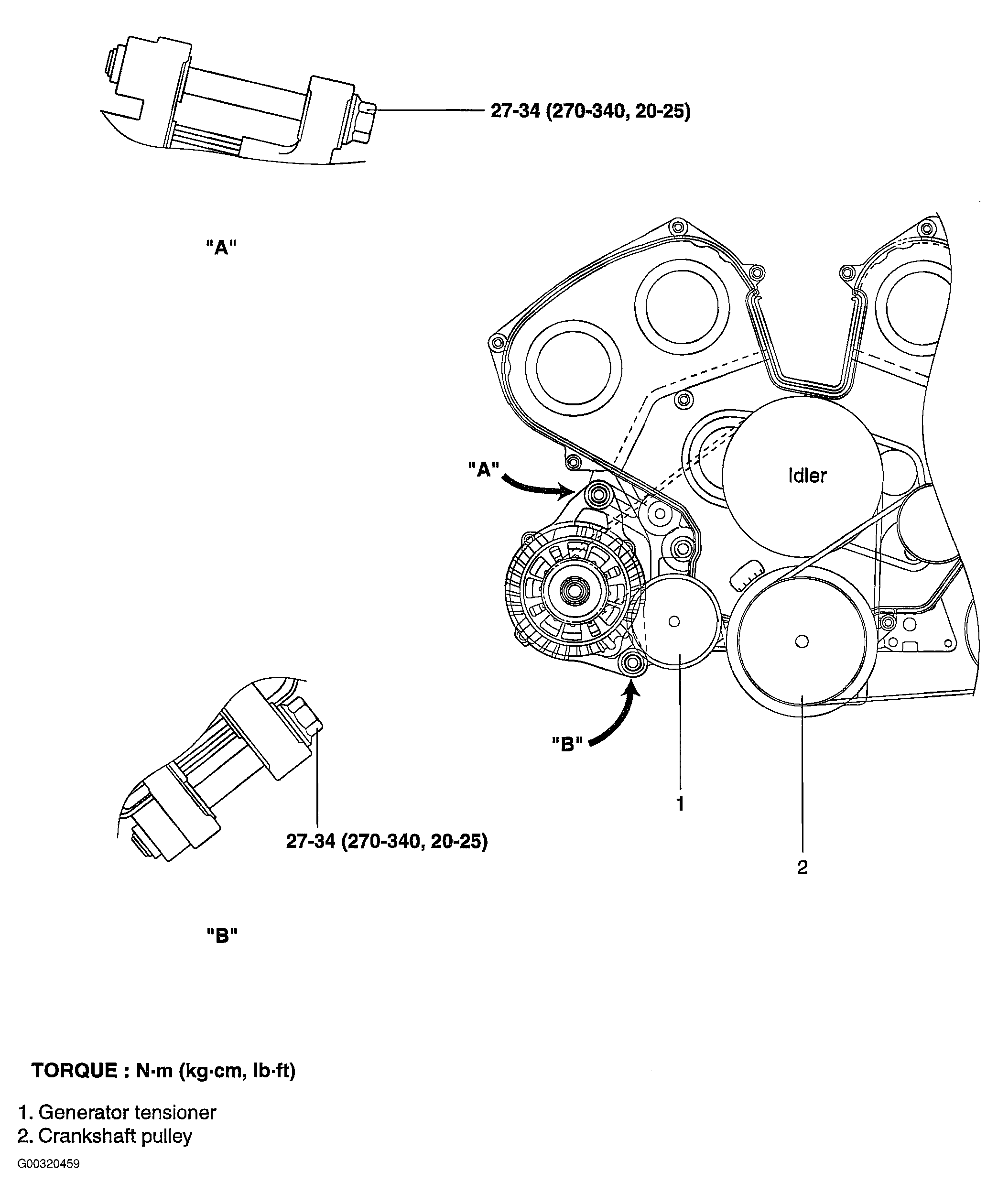

Fig 1: Removing & Installing Generator

G00320459

Courtesy of KIA MOTORS AMERICA, INC.
