3.5L Engine: Camshaft: Components

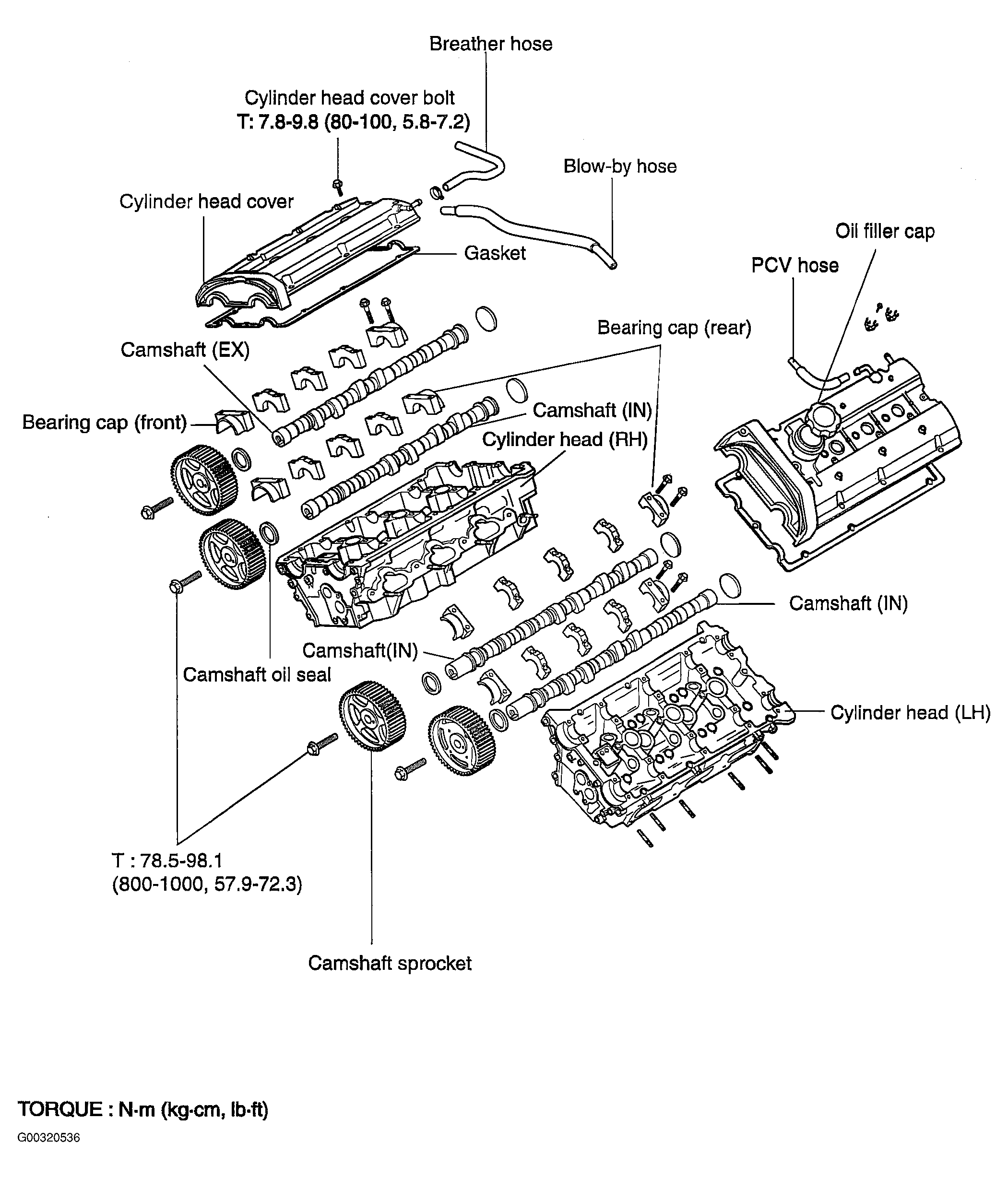

Fig 1: Cam Shaft Components

G00320536

Courtesy of KIA MOTORS AMERICA, INC.
