3.5L Engine: Camshaft: Disassembly

  1. Remove the cylinder head cover.

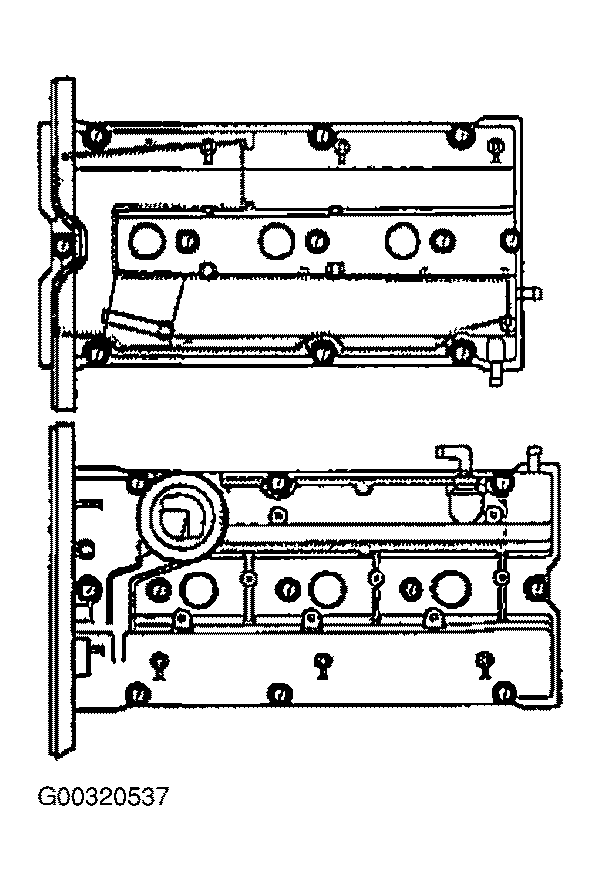

    Fig 1: Removing Cylinder Head Cover
    G00320537Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front bearing cap.

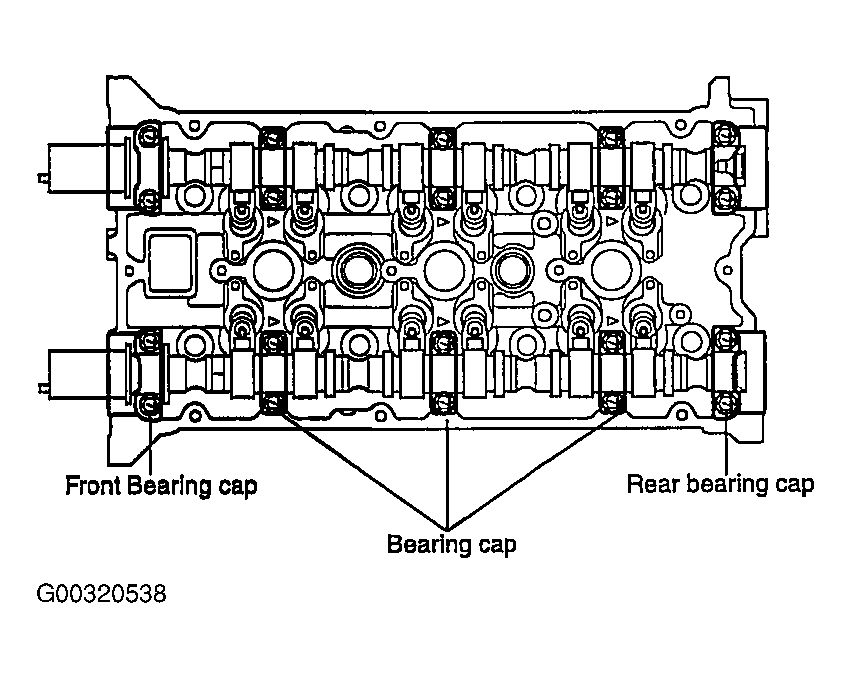

    Fig 2: Removing Front Bearing Cap
    G00320538Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the rear bearing cap.
  4. Remove the bearing cap.
  5. Remove the camshaft oil seal.
  6. Remove the camshaft.
  7. Remove the rocker arm.
  8. Remove the lash adjustor.
    Fig 3: Removing Lash Adjustor
    G00320539Courtesy of KIA MOTORS AMERICA, INC.
