Engine Coolant Hose/Pipes: Components

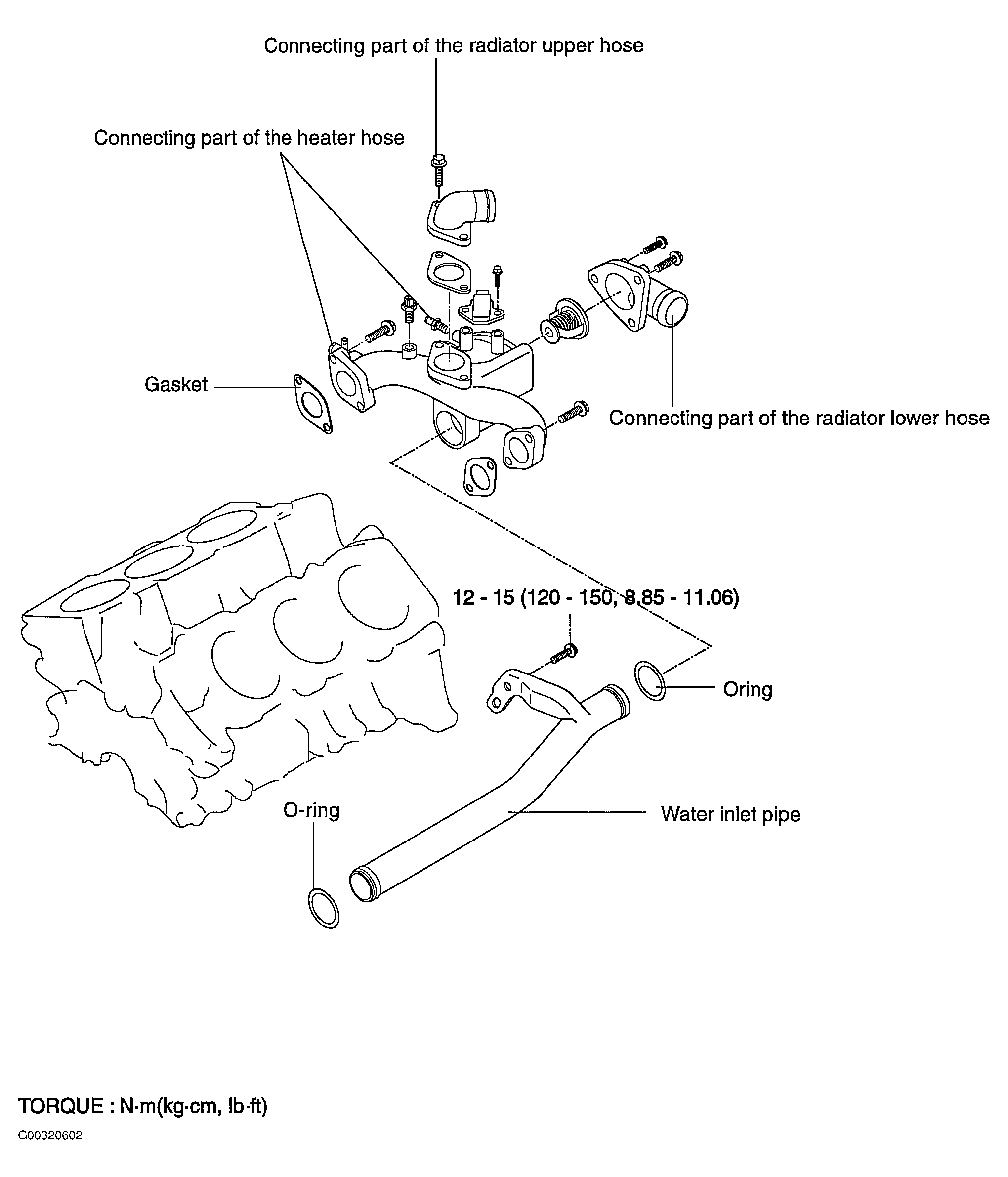

Fig 1: Engine Coolant Hose Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
