Cooling System: Thermostat: Components

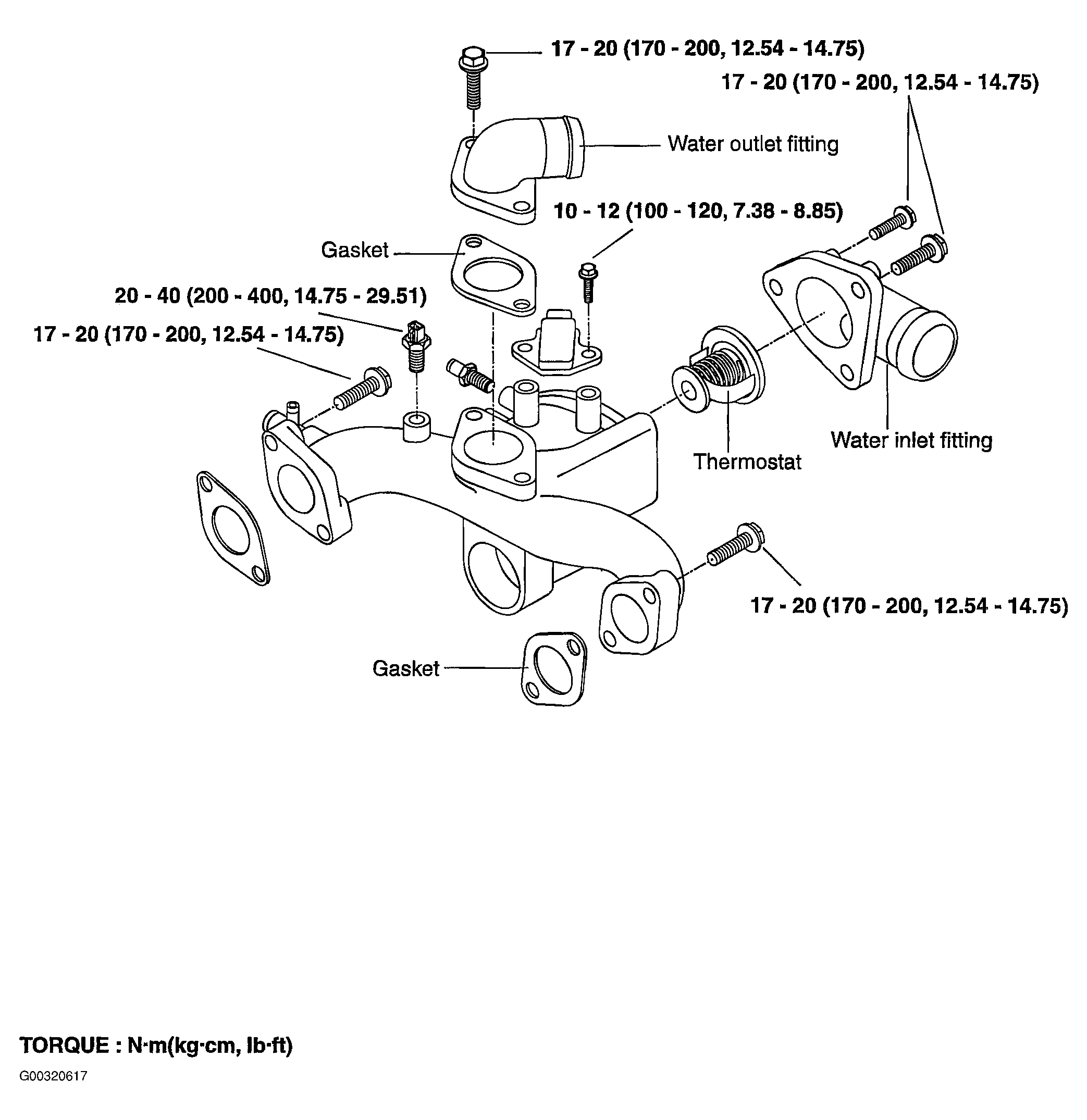

Fig 1: Thermostat Components
G00320617Courtesy of KIA MOTORS AMERICA, INC.
