Cylinder Head: Components

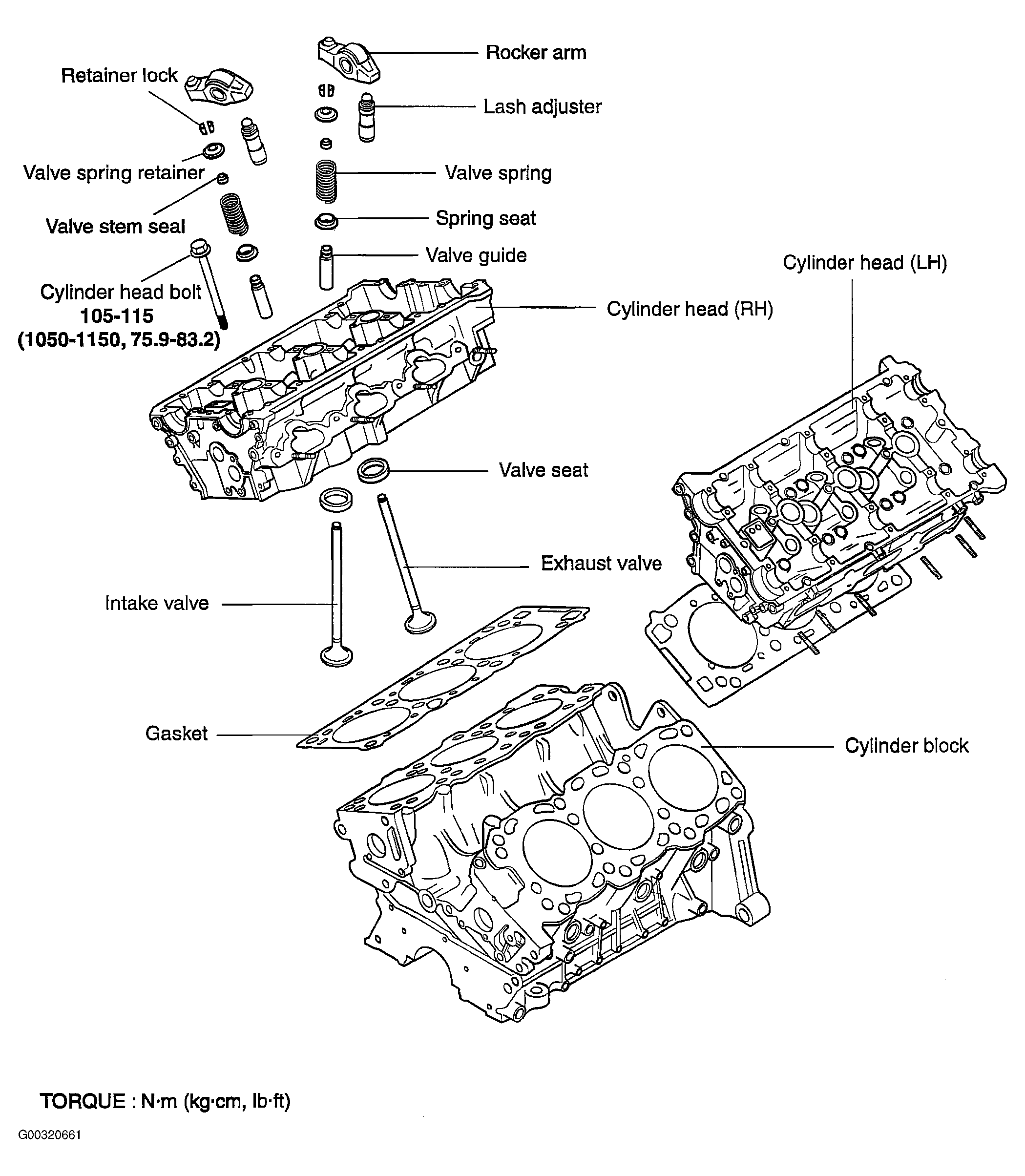

Fig 1: Cylinder Head Components
G00320661Courtesy of KIA MOTORS AMERICA, INC.
