Connecting Rod & Piston Disassembly & Inspection
›
Components
Connecting Rod & Piston Disassembly & Inspection: Components

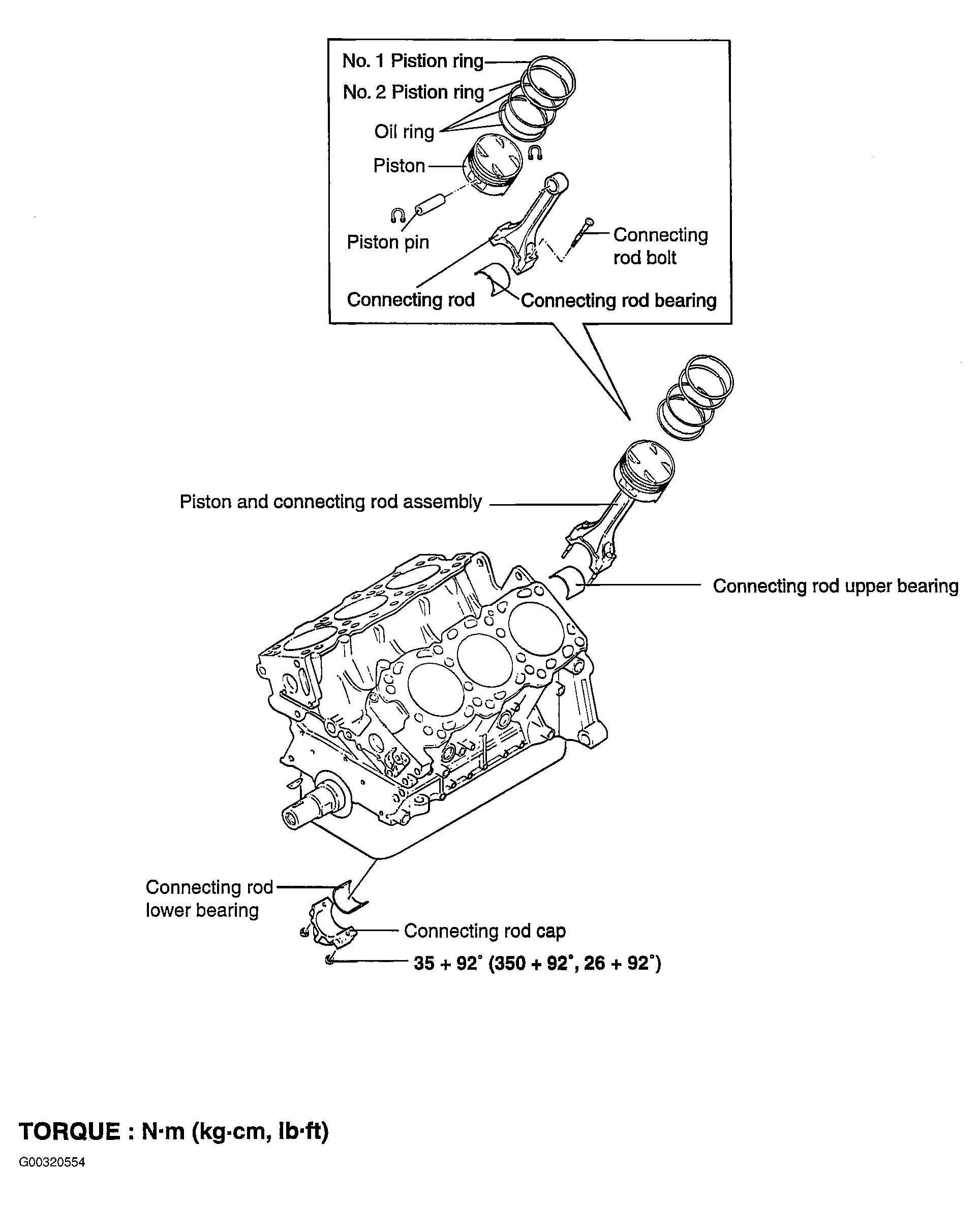

Fig 1: Connecting Rod & Piston Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
