Crankshaft Disassembly & Inspection: Components

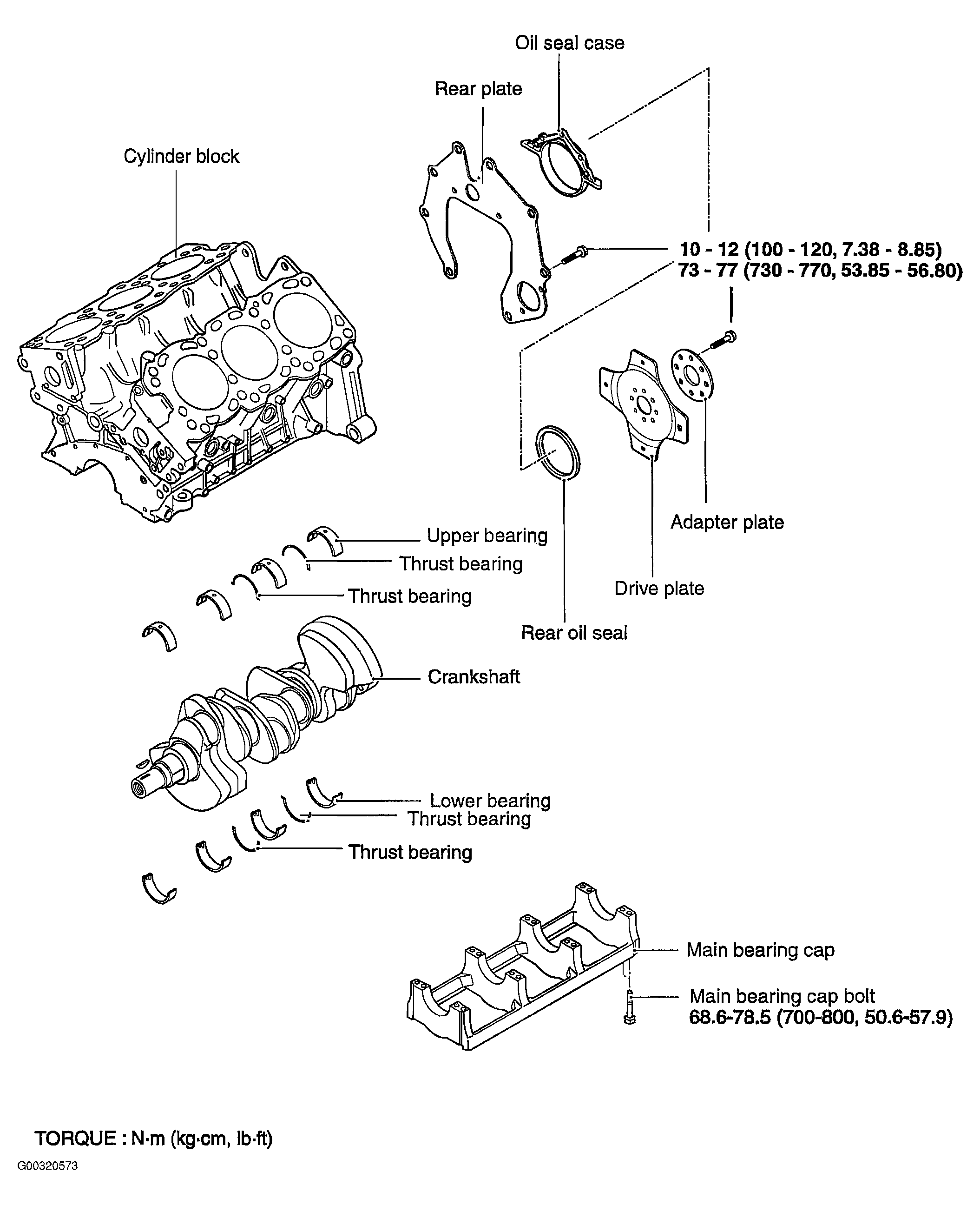

Fig 1: Crank Shaft Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
