Timing Belt: Components

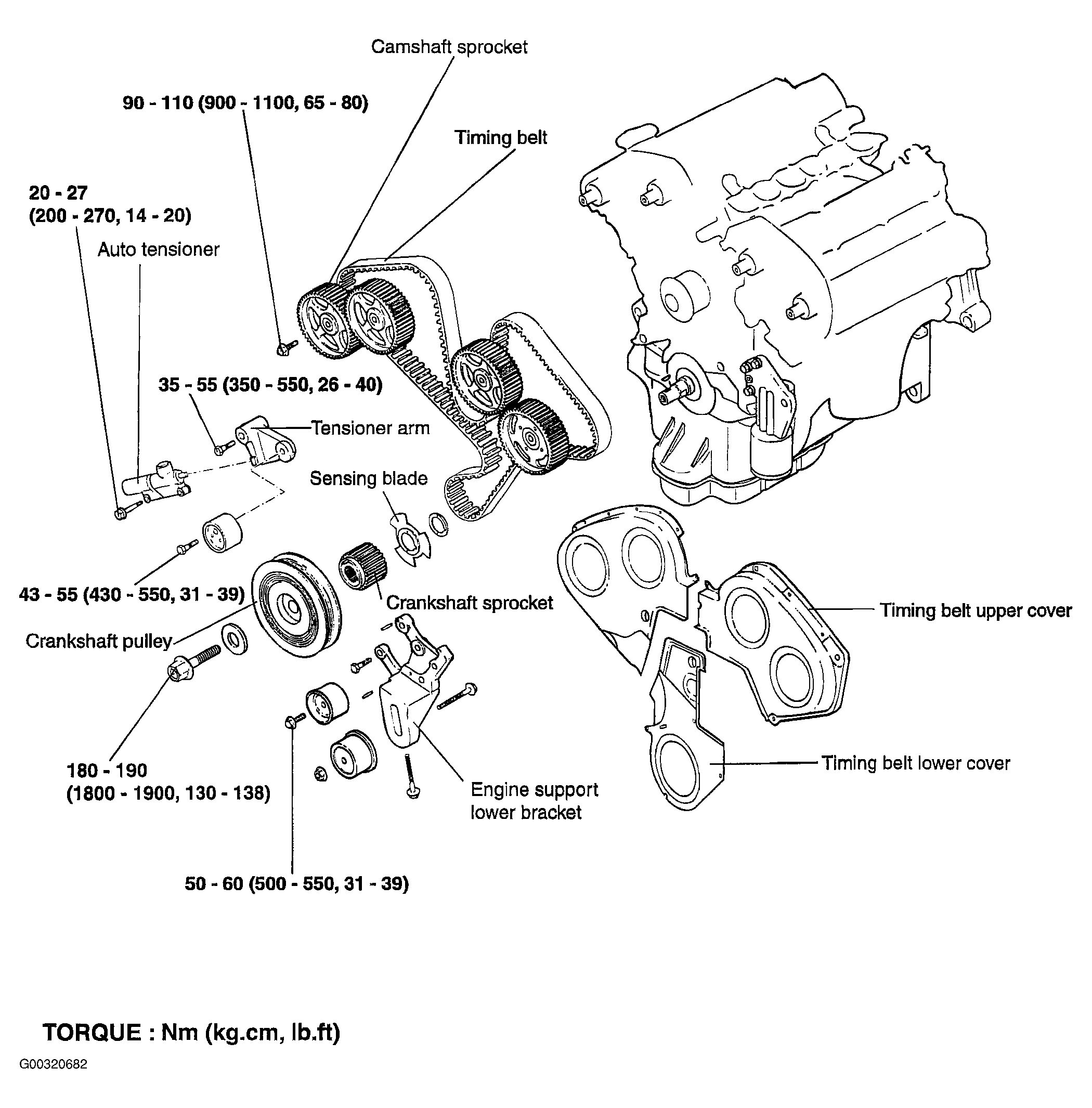

Fig 1: Timing Belt Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Timing Belt Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
