Timing Belt: Removal

Remove the engine cover.
Remove the drive belt.
Remove the idler pulley, crankshaft pulley, power steering pulley and tensioner pulley.

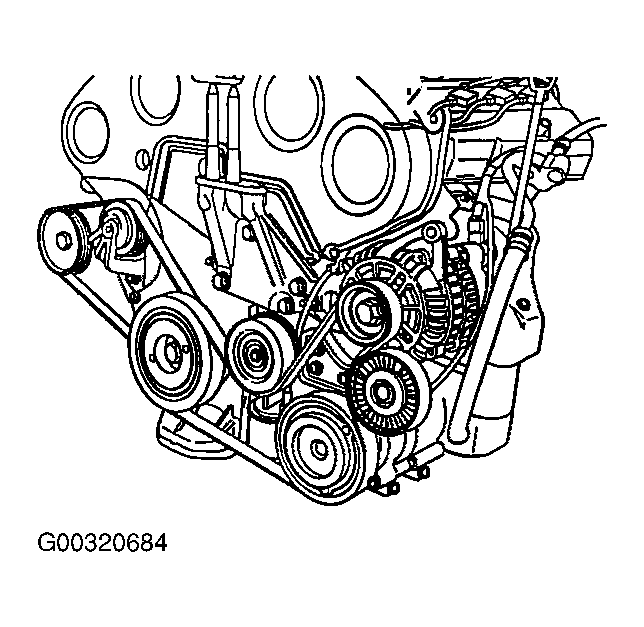

Fig 1: Removing Idler Pulley, Crankshaft Pulley, Power Steering Pulley & Tensioner Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Remove the upper and lower timing belt cover.

Fig 2: Removing Upper & Lower Timing Belt Cover
Courtesy of KIA MOTORS AMERICA, INC.
Support the engine with garage jack or special tool, and then remove the engine mounting insulator.
CAUTION: Take care not to deform the engine oil pan.
Remove the auto tensioner.

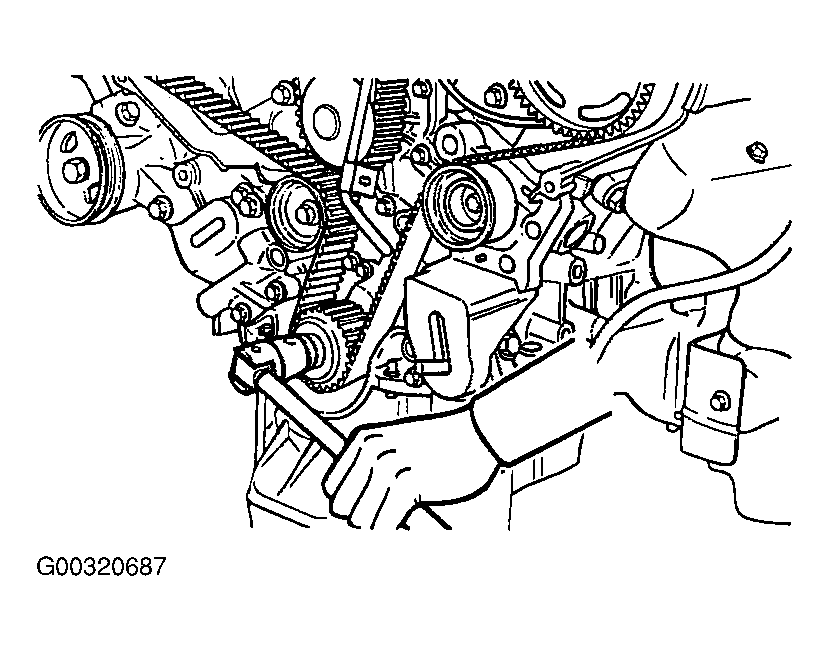

Fig 3: Removing Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Rotate the crankshaft clockwise and align the timing mark to get the No. 1 cylinder's piston be in TDC position (compression stroke). At this time, the timing marks of the camshaft sprocket and cylinder head cover should coincide with each other.
Remove the timing belt.

Fig 4: Removing Timing Belt

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When re-using timing belt, make sure of marking the rotating direction on the belt so as to install correctly.
