3.5L Engine: Troubleshooting

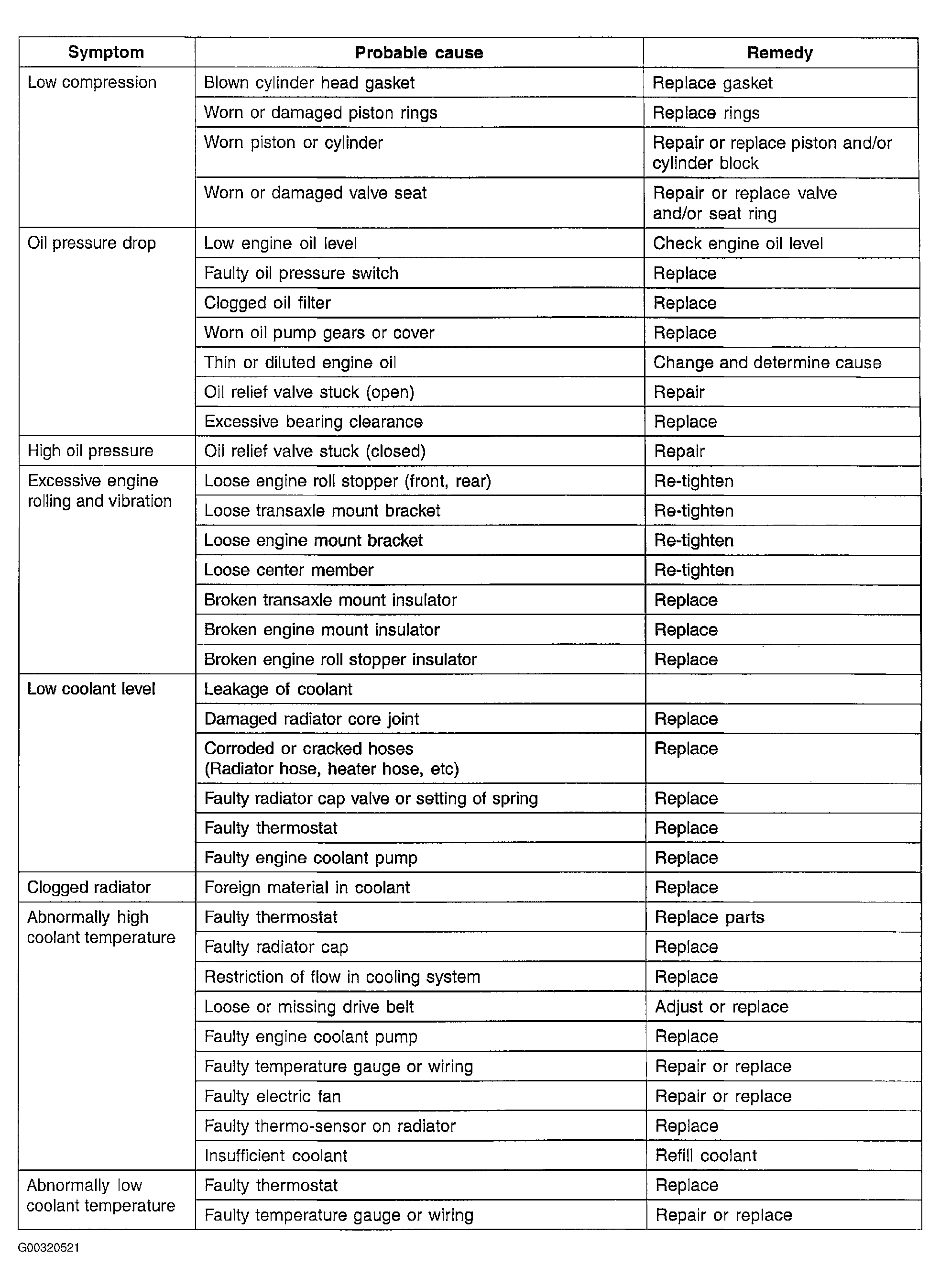

Fig 1: Troubleshooting (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

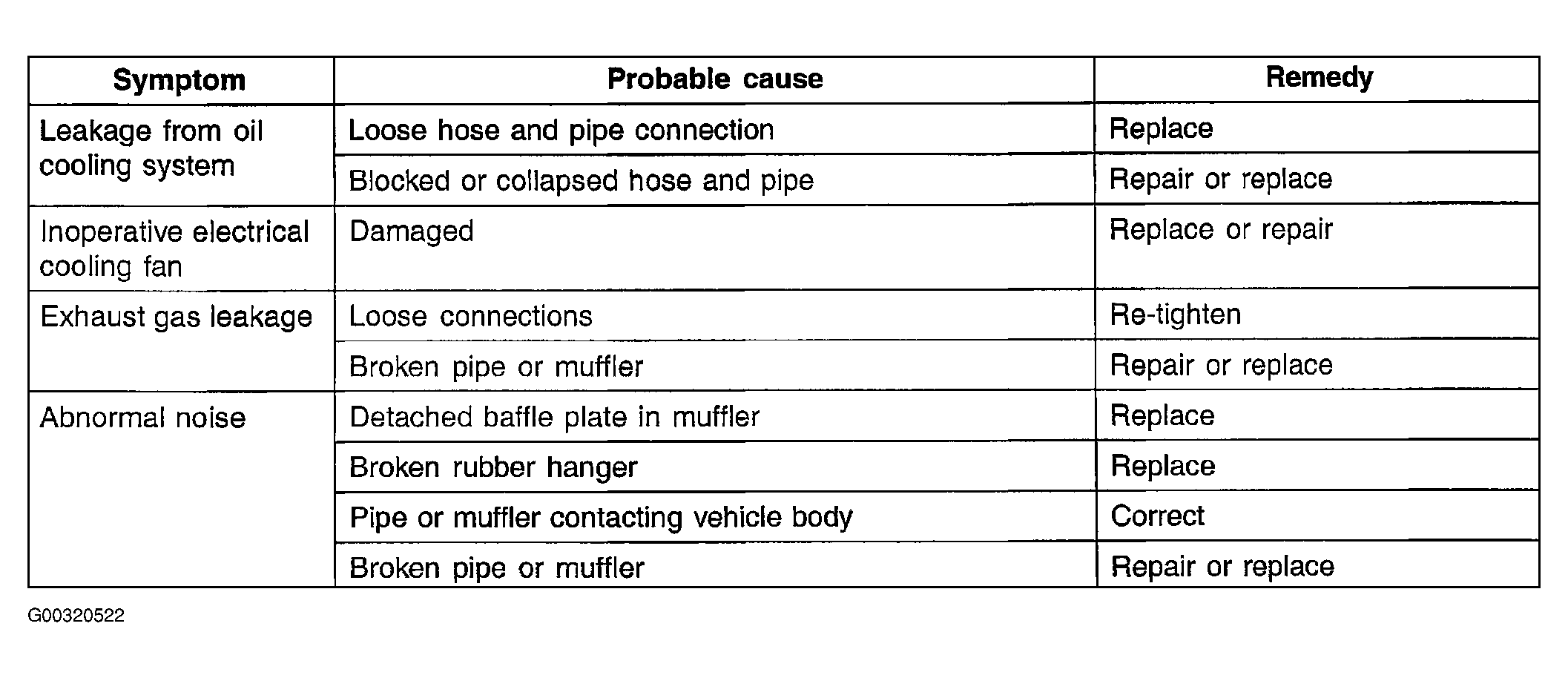

Fig 2: Troubleshooting (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Troubleshooting (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
