Sedona EX
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System
›
General
›
Emission Control Location
Emission Control Location

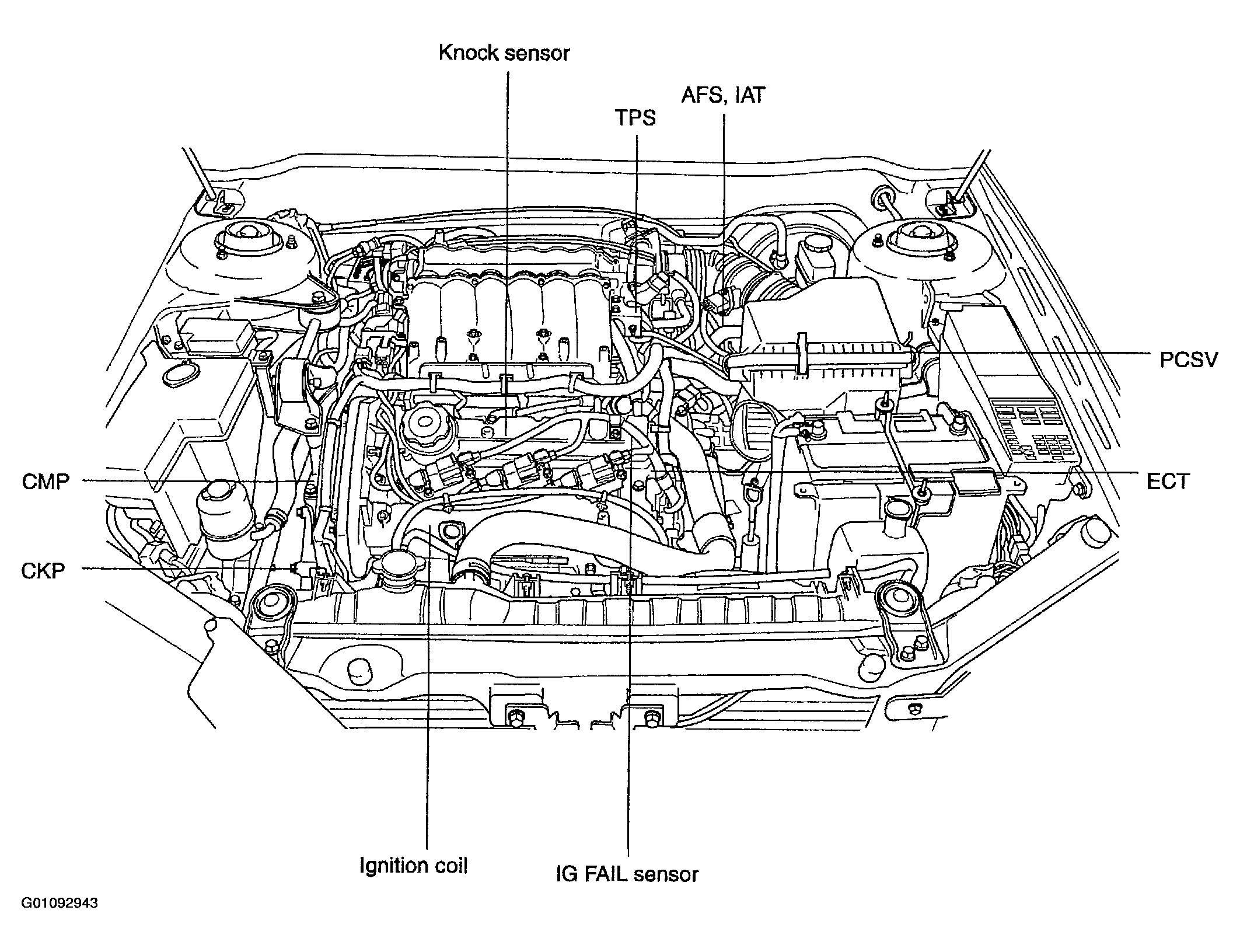

Fig 1: Locating Emission Control Systems
Courtesy of KIA MOTORS AMERICA, INC.

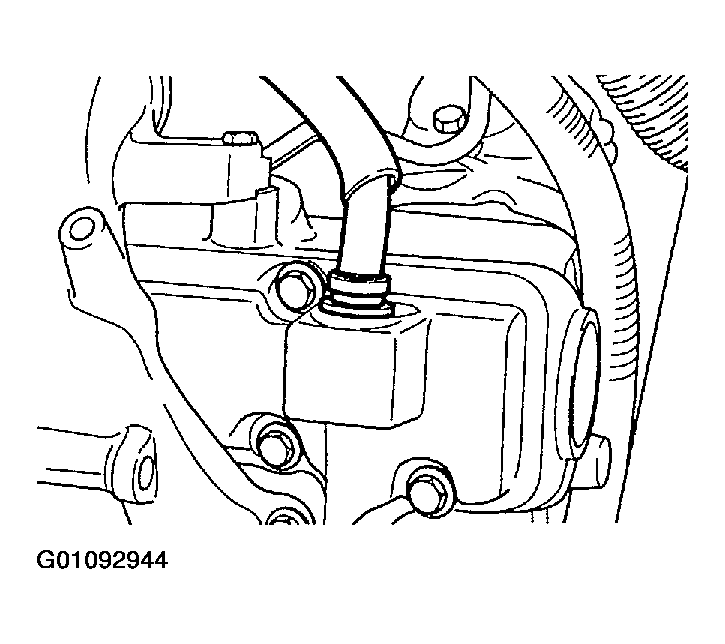

Fig 2: Locating PCV Valve
Courtesy of KIA MOTORS AMERICA, INC.

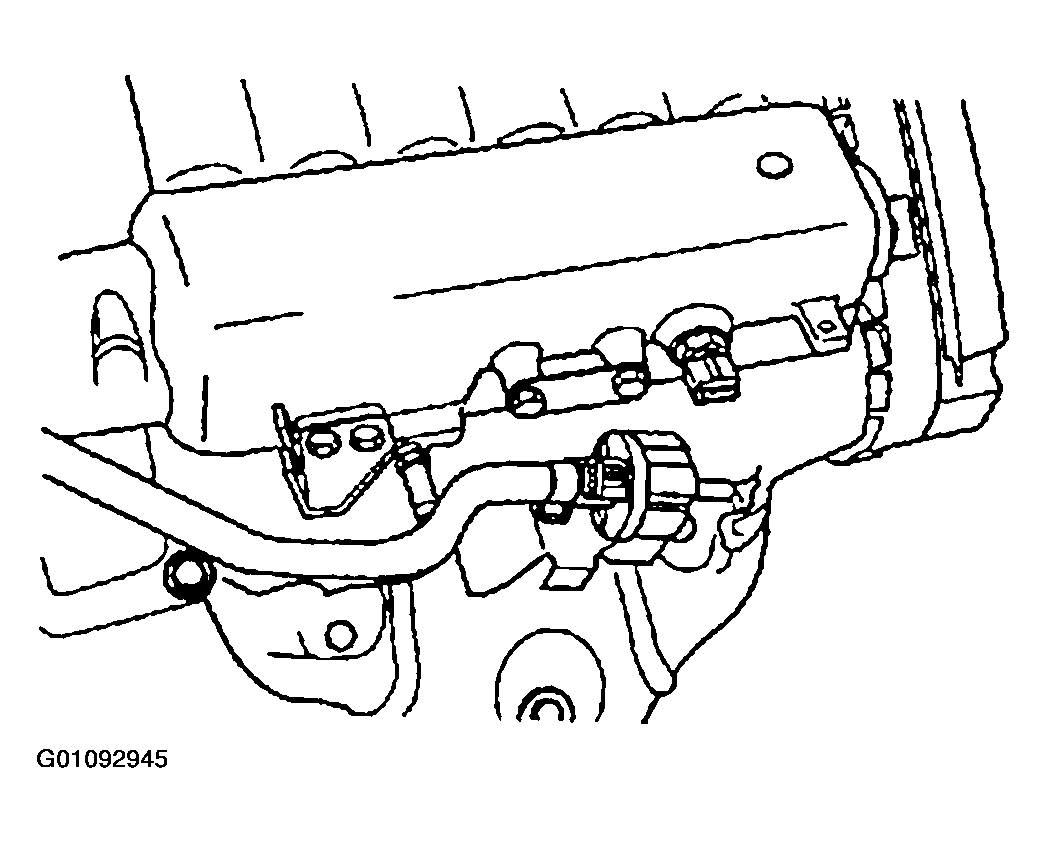

Fig 3: Locating Canister Purge Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.

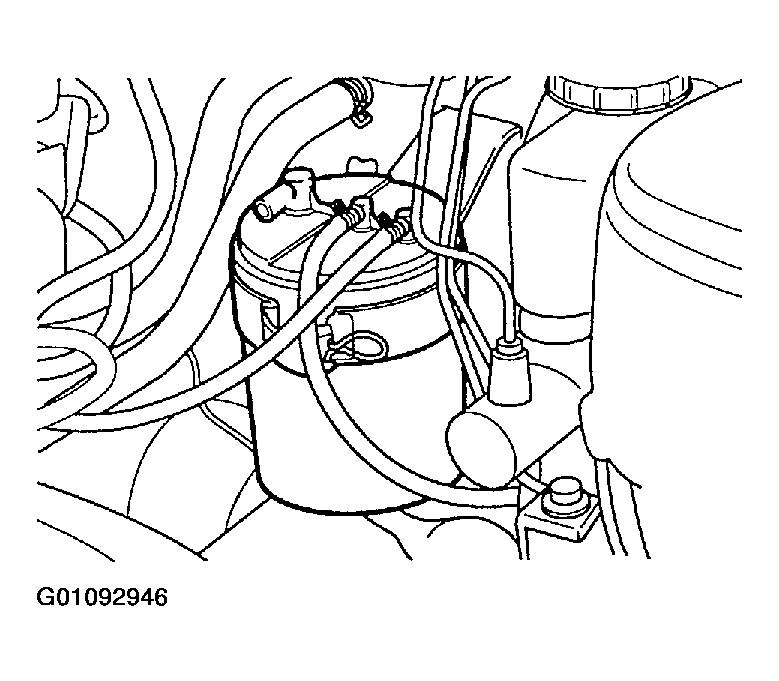

Fig 4: Locating EVAP Canister
Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: Locating Two-way Valve
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
