Immobilizer System Connector End View
Immobilizer System Connector End View

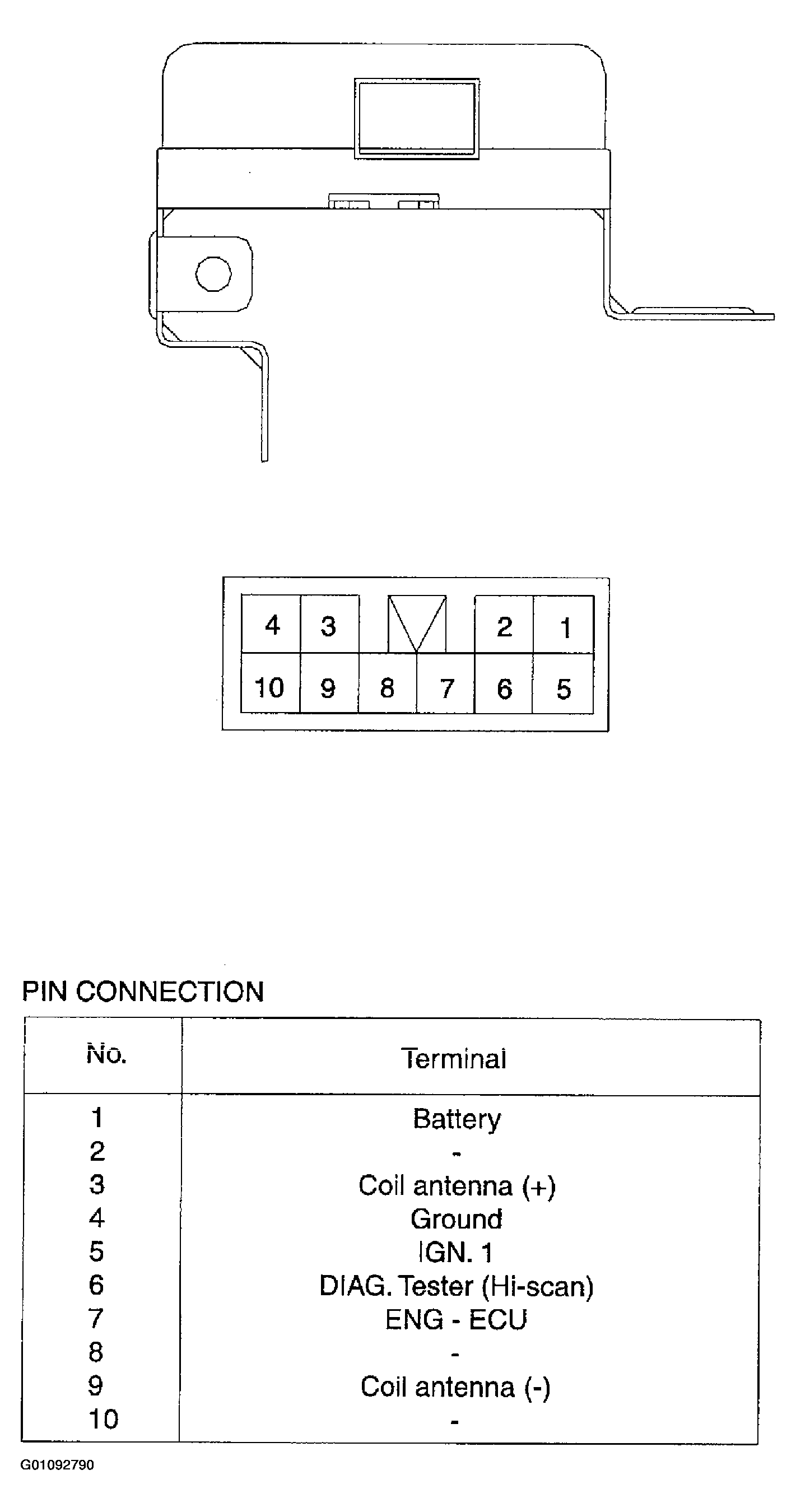

Fig 1: Immobilizer System Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
