Automatic Transaxle System
›
Fluid Temperature Sensor Checking
›
Normal Fluid Pressure Specification Table
Normal Fluid Pressure Specification Table

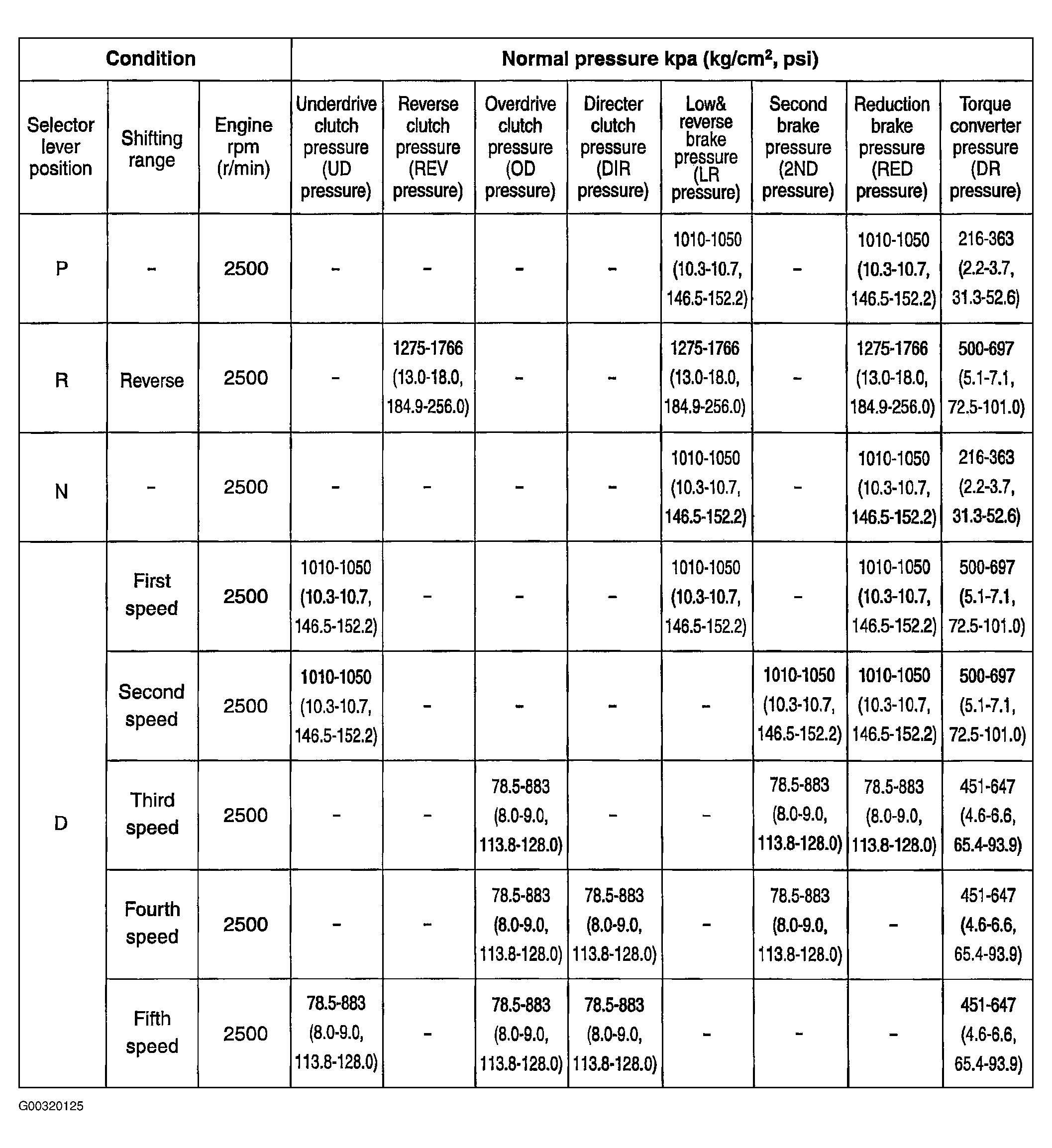

Fig 1: Normal Fluid Pressure Specification Table
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
