Front Door: Component

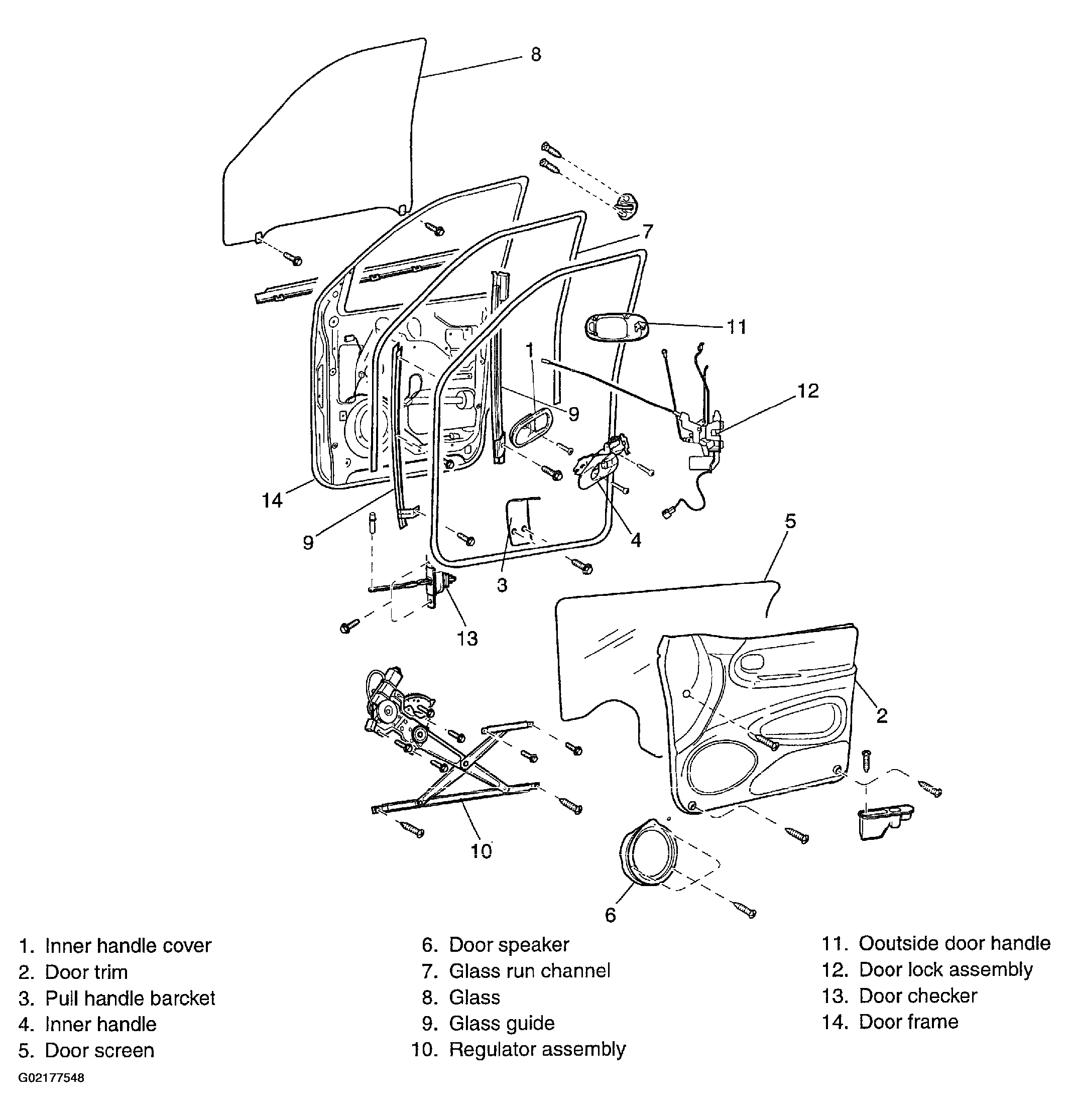

Fig 1: Exploded View Of Front Door
G02177548Courtesy of KIA MOTORS AMERICA, INC.
