Crankcase Emission Control System: Components

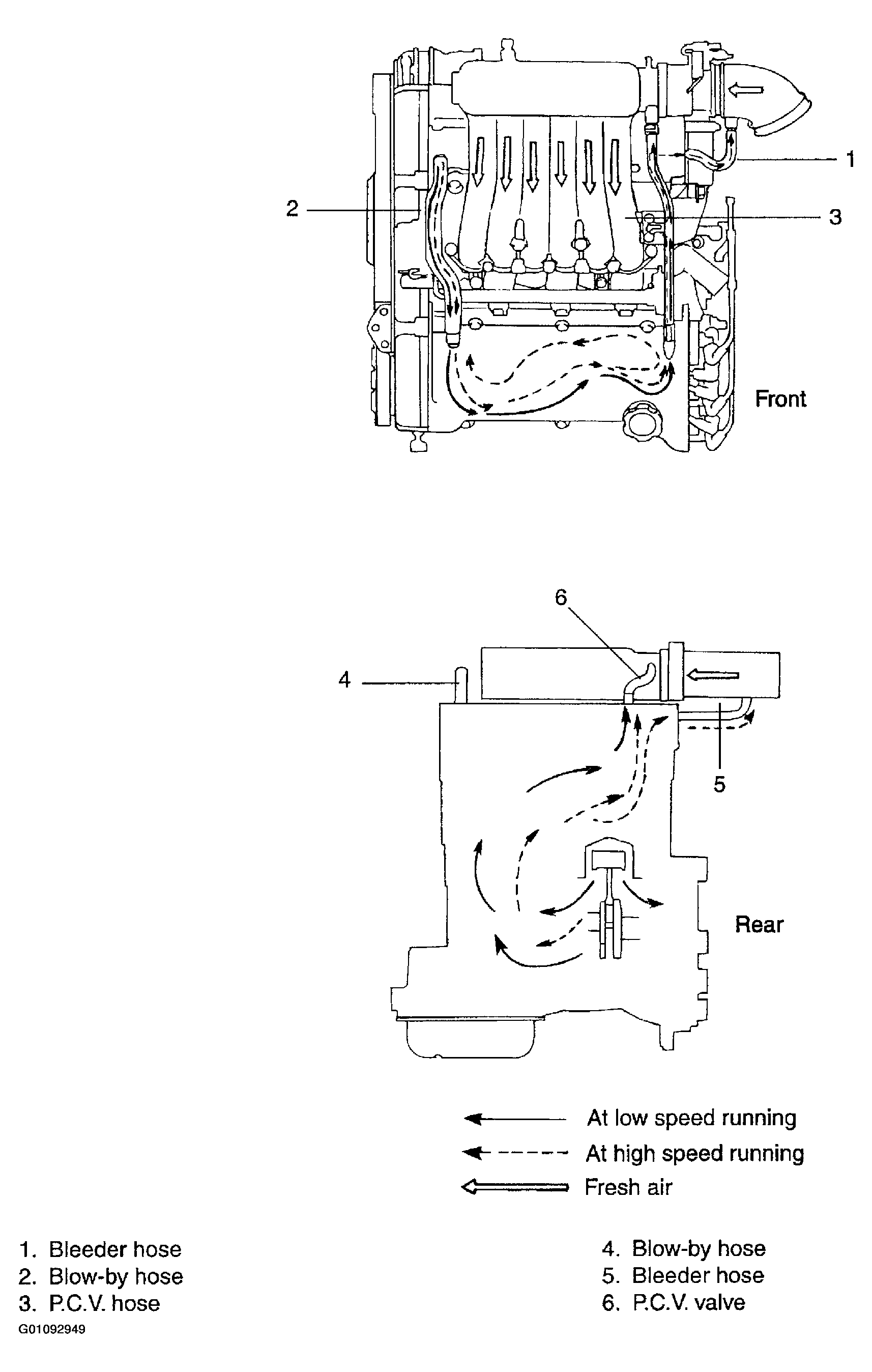

Fig 1: Illustrating Crankcase Emission Control System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
