Harness Inspection Procedures

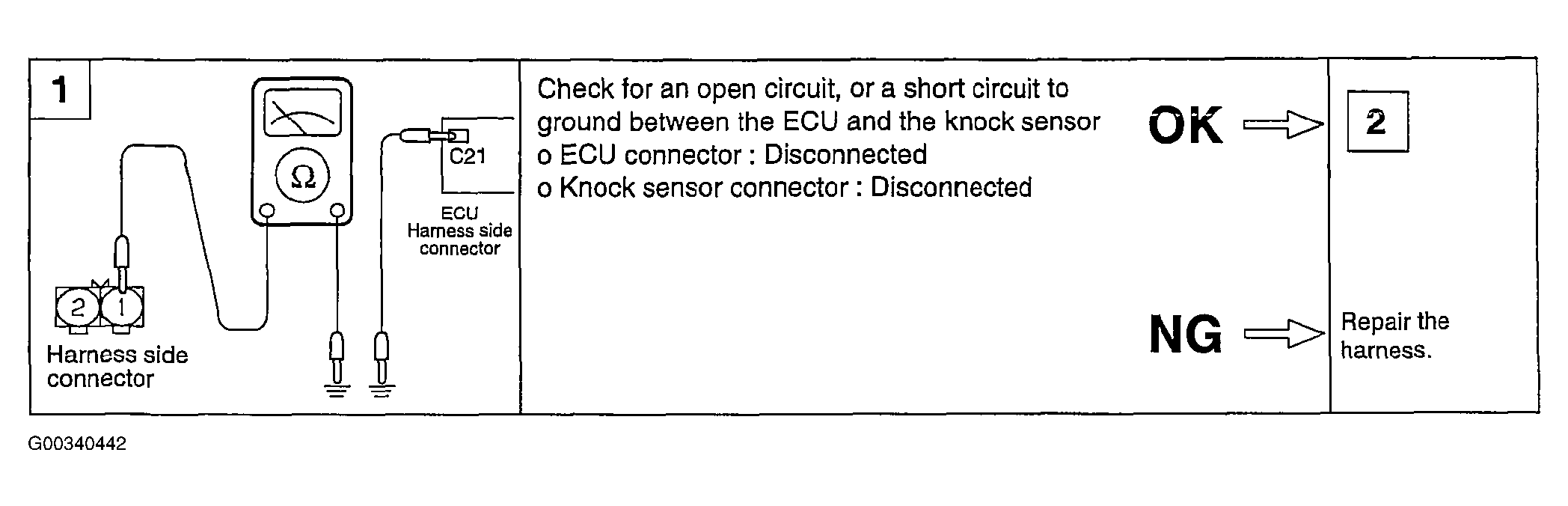

Fig 1: Knock Sensor Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

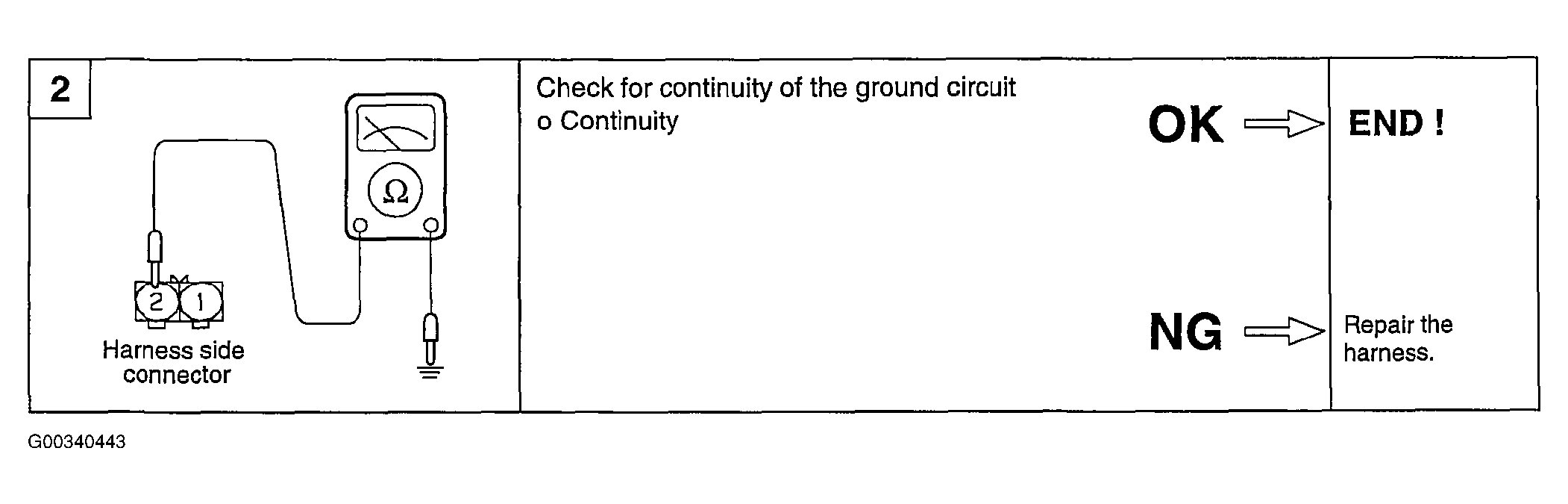

Fig 2: Knock Sensor Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
