Cruise Control Module: Inspection

1. Connect a voltmeter between cruise control unit terminals and ground. (Connector Q01 connected.)
2. Turn ignition switch "ON" and check that terminal voltages are as described in the following illustration. See Fig 1.

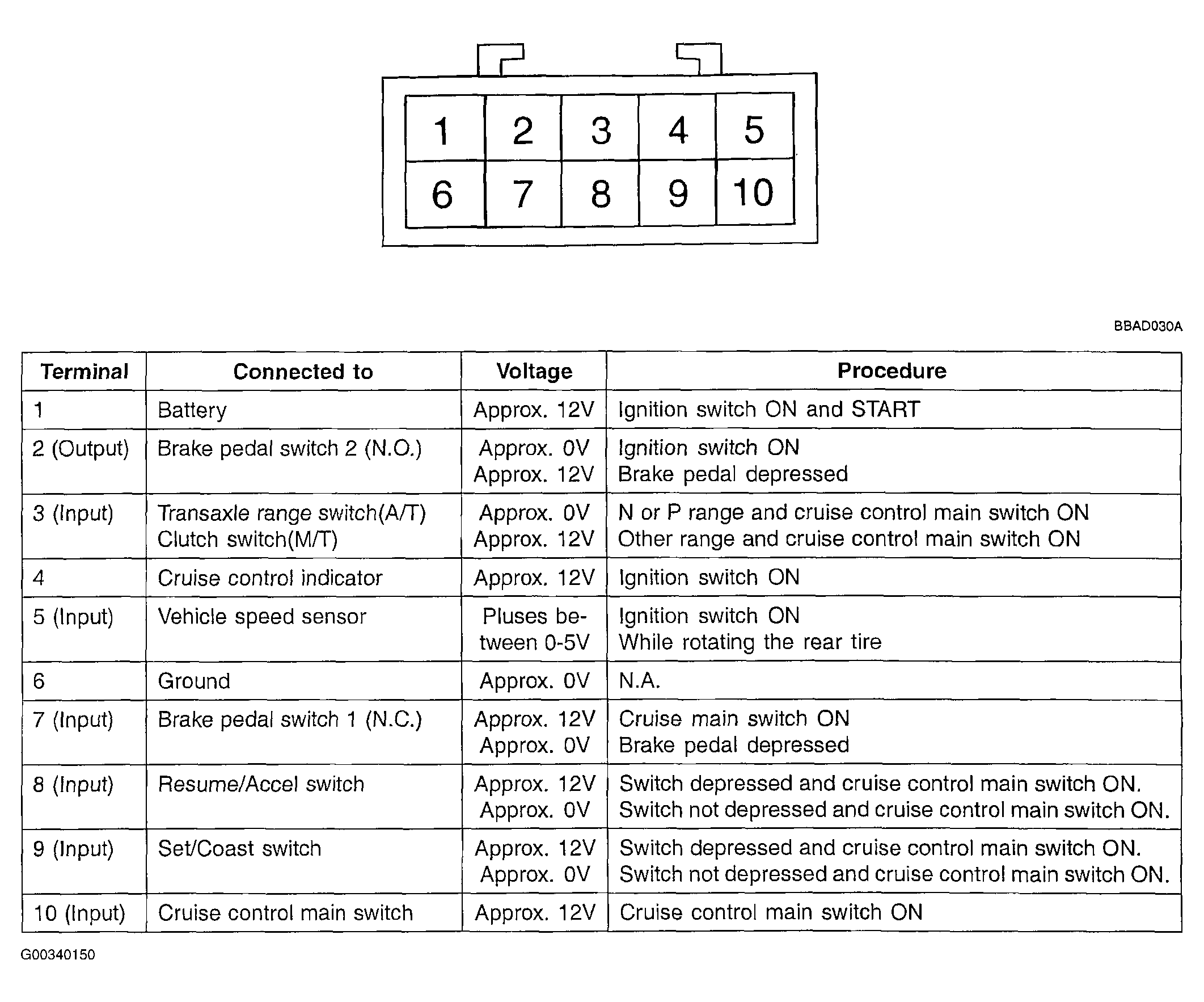

Fig 1: Cruise Control Module Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.
