ETACS Function

Fig 1: Identifying Intermittent Wiper Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : Max. 0.3 sec.

T2 : 0.7 +/- 0.1 sec. (Time of wiper motor 1 rotation)

T3 : (Intermittent time): T2 + FAST (2.0 +/- 0.2 sec.)

1. T2+SLOW (10 +/- 1.0 sec.)

Fig 2: Identifying Washer Related Wiper Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification.

T1 : 0.6 +/- 0.1 sec.

T2 : 2.5 - 3.8 sec.

T3 : 0.2 - 0.6 sec.

T4 : 0.7 +/- 0.1 sec.

This function should be operated preferentially even though the variable intermittent wiper is operating.

Fig 3: Identifying Rear Window Defroster & Front Windshield Defroster Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 20+/-1min.

Fig 4: Identifying Seat Belt Warning Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 6 +/- 1.5 sec.

T2 : 0.5 +/- 0.1 sec.

Fig 5: Identifying Ignition Key Hole Illumination Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 10 +/- 1sec.

T2 : 0 - 10 sec.

Fig 6: Identifying Delayed Out Room Lamp Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 5 - 6 sec.

T2 : 30 +/- 3 sec.

T3 : 20 +/- 2 min.

Fig 9: Identifying Power Window Timer Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 30 +/- 3 sec.

Fig 10: Identifying Crash Door Unlock Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 200msec.

T2 : 0.5 +/- 0.1 sec.

T3 : 60 +/- 2 msec.

Alarm occurs while the door or rear hatch opened when the vehicle speed is 5km/h over.

Fig 11: Identifying Rear Hatch Glass Open Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 3 +/- 0.5 sec.

T2 : 0.5 +/- 0.1 sec.

Fig 13: Identifying 2-Turn Unlock Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 3 +/- 0.5 sec.

T2 : 0.5 +/- 0.1 sec.

1. Door lock
   Fig 14: Identifying Remote Keyless Entry System - Door Lock Time Specifications

   Courtesy of KIA MOTORS AMERICA, INC.

   Time specification

   T1 : 1.0 sec.

2. Door unlock.
   Fig 15: Identifying Remote Keyless Entry System - Door Unlock Time Specifications

   Courtesy of KIA MOTORS AMERICA, INC.

   Time specification

   T1 : 0.5 sec.

3. Rear hatch glass open
   Fig 16: Identifying Remote Keyless Entry System - Rear Hatch Glass Open Time Specifications

   Courtesy of KIA MOTORS AMERICA, INC.

   Time specification

   T1 : 0.5 sec.

4. Panic

Fig 17: Identifying Remote Keyless Entry System - Panic Time Specifications

Courtesy of KIA MOTORS AMERICA, INC.

Time specification

T1 : 27 +/- 2 sec.

T2 : 0.5 +/- 0.1 sec.

T3 : 0.5 +/- 0.1 sec.

T4 : 2.7 +/- 0.5 sec.

Receiver (ETACS module) can save maximum two codes from the transmitter.

1. Apply the battery voltage to the terminal "6" of DLC (Data Link Connector).
   Fig 18: Identifying DLC Terminals

   Courtesy of KIA MOTORS AMERICA, INC.
2. Turn the ignition switch to "ON" position.
3. While coding one transmitter.

   Press the lock button of transmitter for 3 seconds over until the turn signal lamp turns off.

4. While coding two transmitters.

   Press the lock button of one for 1 second while the turn signal lamp turns on, and then press the lock button of the other for 1 second over until the turn signal lamp turns off.

5. Remove the battery voltage, and then the transmitter code is re-saved on the receiver.

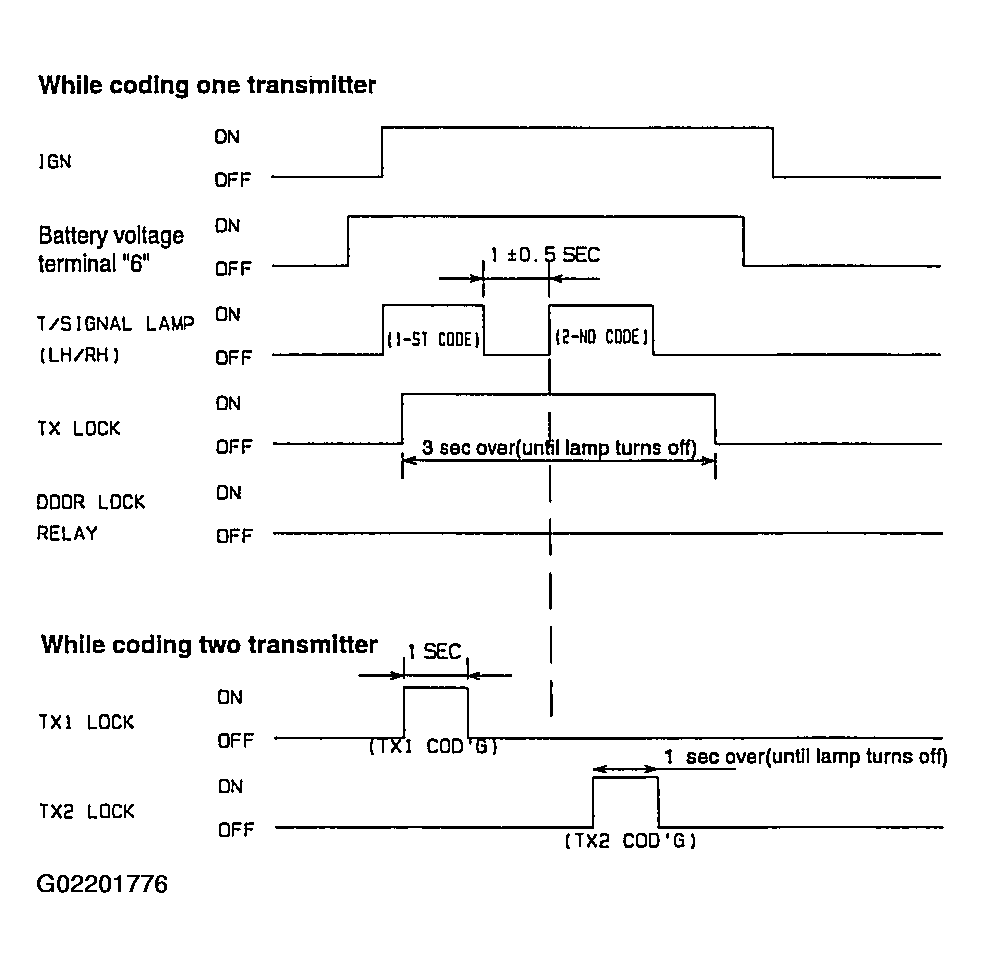

   Fig 19: Identifying Code Saving Method Time Specifications

   Courtesy of KIA MOTORS AMERICA, INC.
6. Check the operation of the keyless entry system.
