Multi Function Switch: Inspection

Check the continuity between the terminals while operating the switch.

Fig 1: Checking Lighting Switch Continuity (Connector "1")

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Checking Lighting Switch Continuity - With Auto Light (Connector "1")

Courtesy of KIA MOTORS AMERICA, INC.

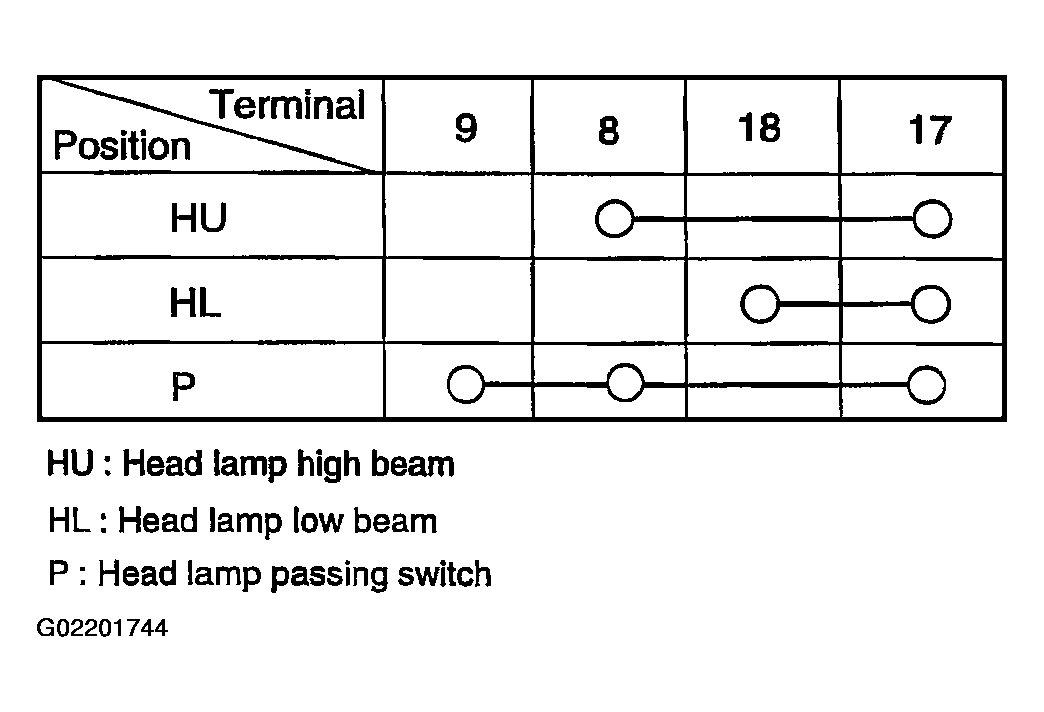

Fig 3: Checking Dimmer And Passing Switch Continuity (Connector "1")

Courtesy of KIA MOTORS AMERICA, INC.

HU: Head lamp high beam

HL: Head lamp low beam

P: Head lamp passing switch

Fig 4: Checking Turn Signal And Lane Change Switch Continuity (Connector "1")

Courtesy of KIA MOTORS AMERICA, INC.

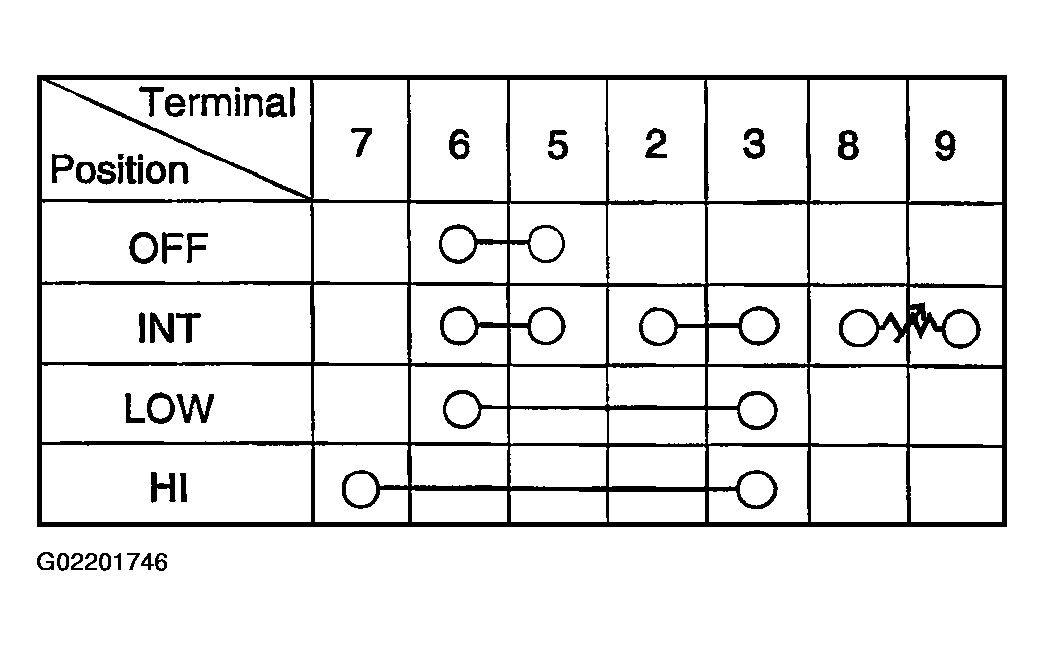

Fig 5: Checking Wiper And Intermittent Speed Switch Continuity (Connector "2")

Courtesy of KIA MOTORS AMERICA, INC.

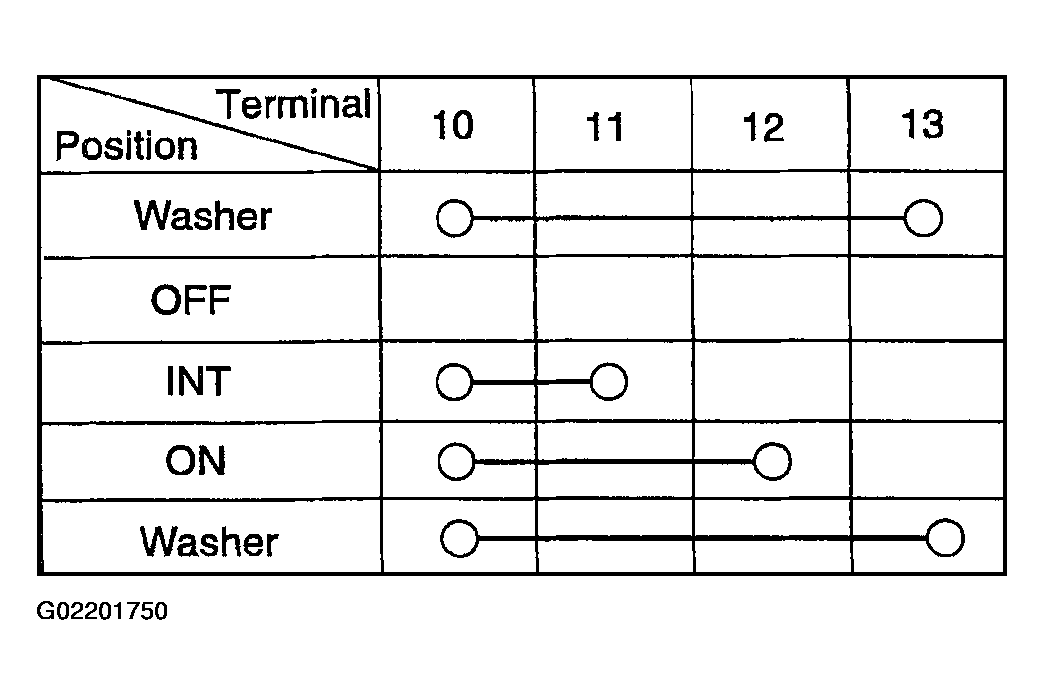

Fig 6: Checking Washer Switch Continuity (Connector "2")

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Checking Mist Switch Continuity (Connector "2")

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Checking Front Fog Switch Continuity (Connector "1")

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Checking Rear Wiper & Washer Switch Continuity (connector "2")

Courtesy of KIA MOTORS AMERICA, INC.
